2 Sets TT DC Gearbox Motor 3-6V Gear Motor with Tire Wheel for Arduino Smart Car Robot
About this product
*This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors.
*Maximum torque: 800k.cm
*Perfect for DIY smart Robot, car projects
*Package Includes:2 X DC Gear Motor,2 X Smart Car Robot Plastic Tire Wheel
*This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors.
Description
Description

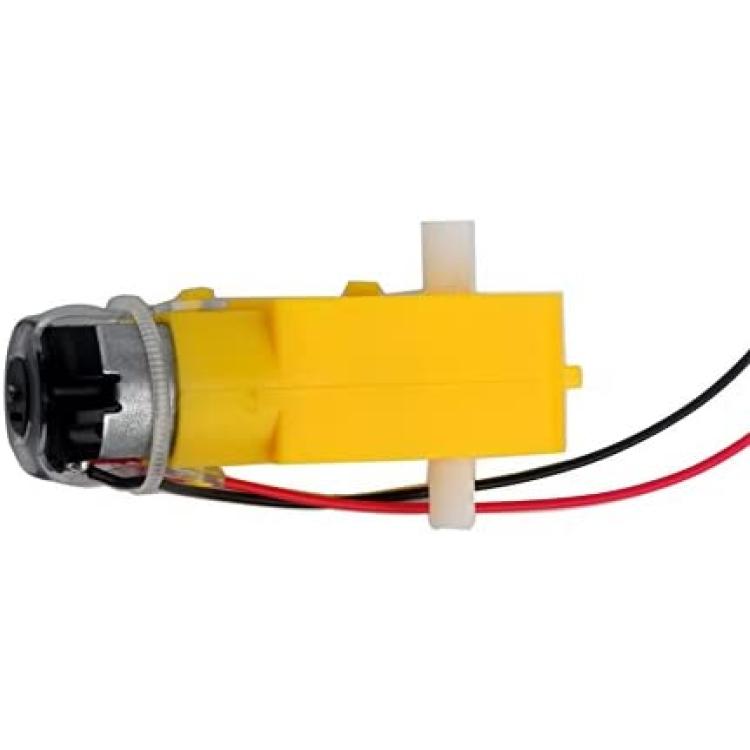

Motor:
This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors. Perfect for plugging into a breadboard or terminal blocks
Rated Voltage: 3~6V
Continuous No-Load Current: 150mA +/- 10%
Min. Operating Speed (3V): 90+/- 10% RPM
Min. Operating Speed (6V): 200+/- 10% RPM
Torque: 0.15Nm ~0.60Nm
Stall Torque (6V): 0.8kg.cm
Gear Ratio: 1:48
Material: Plastic

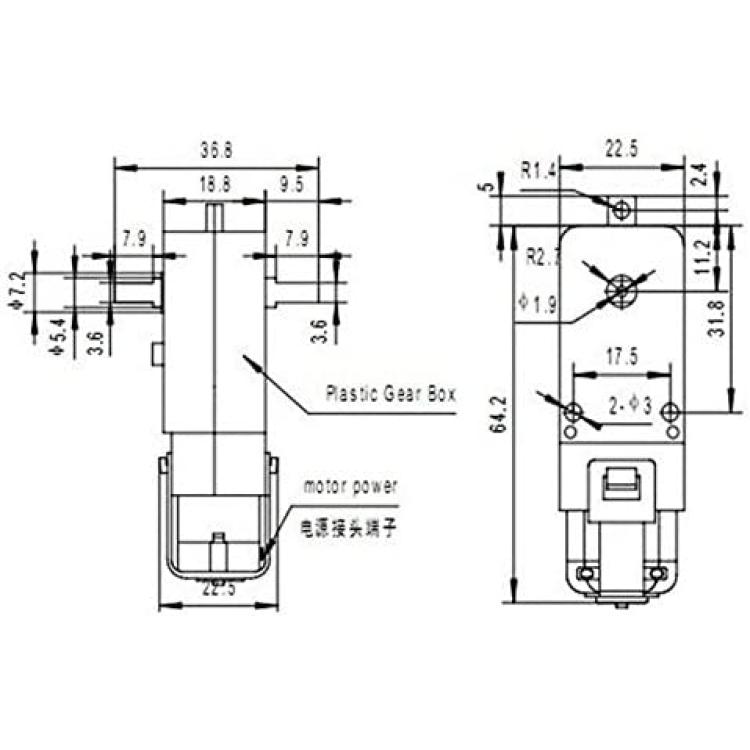

Body Dimensions: 70 x 22 x 18mm
Wires Length: 200mm 28 AWG
Product Weight: 29g / 1.02oz
Noise: <65dB

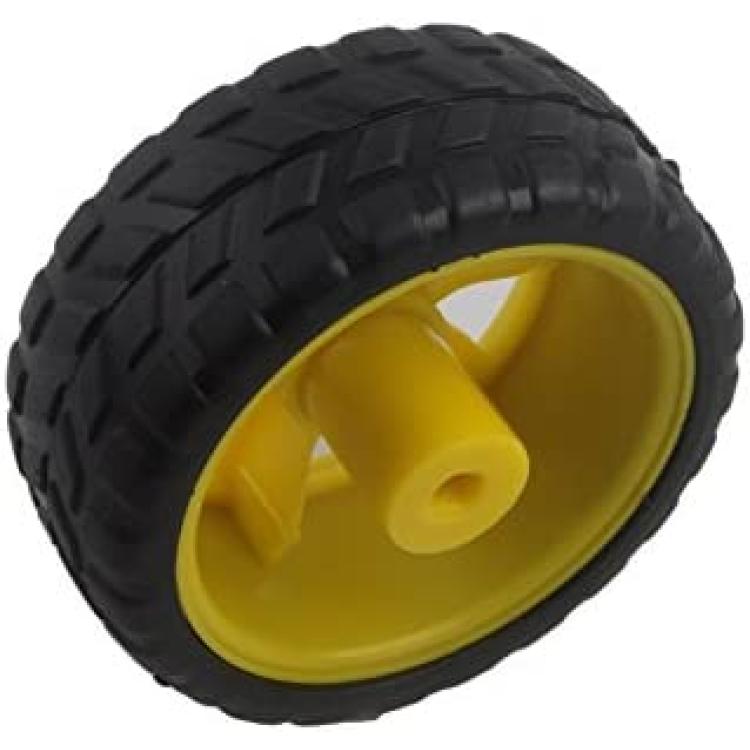

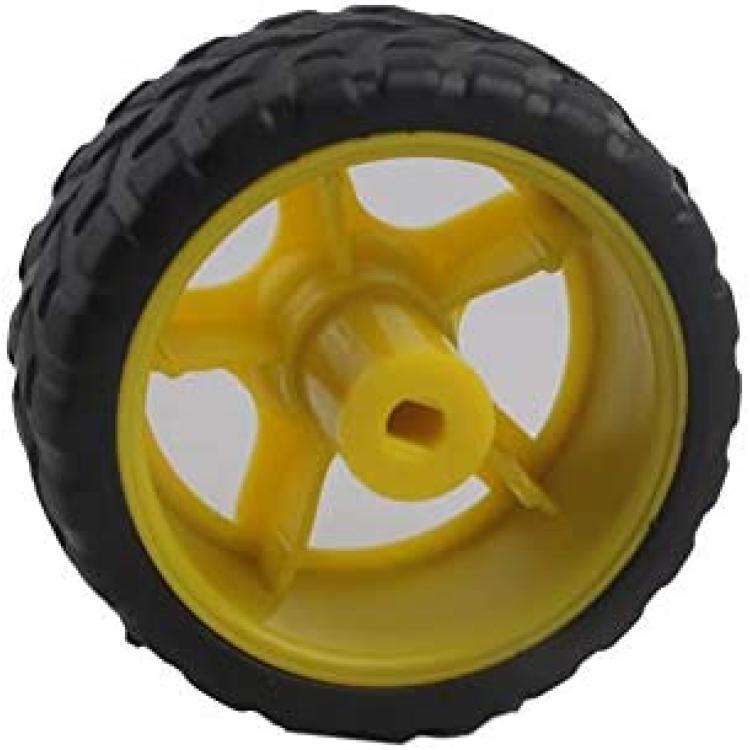

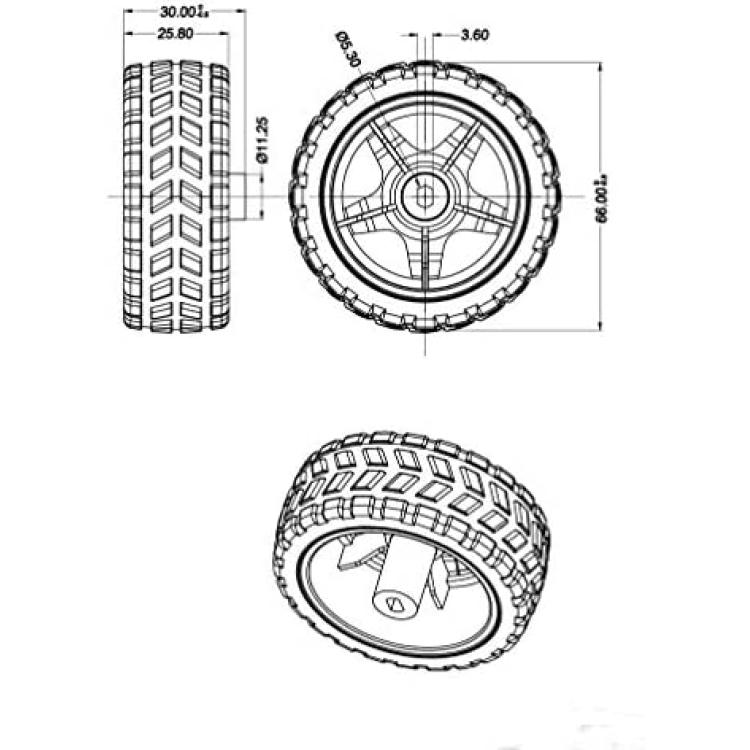

Wheel Parameter:
Center hole: 5.3MM x 3.66MM
Wheel diameter: 65mm
Wheel thickness: 28mm

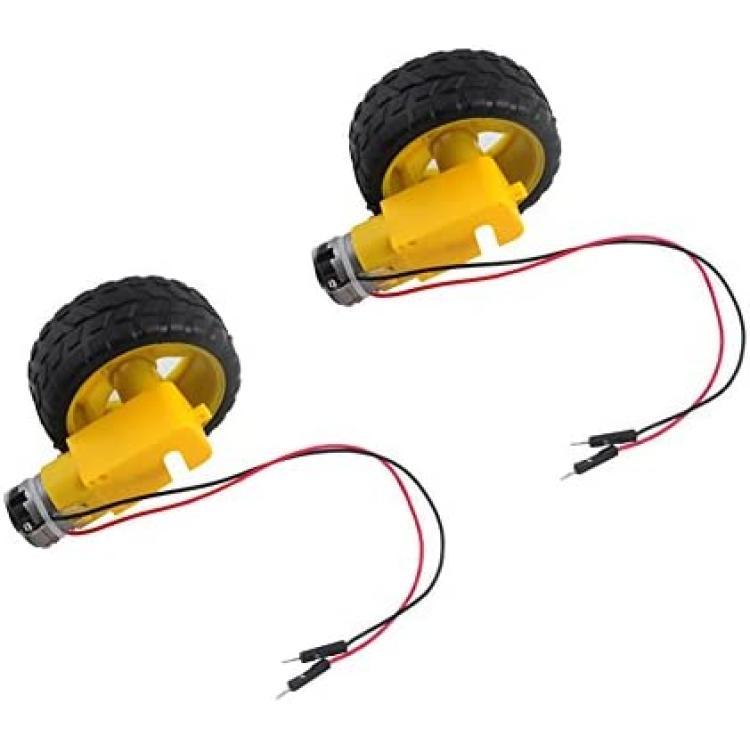

Package Includes:
2 X DC Gear Motor
2 X Smart Car Robot Plastic Tire Wheel
