Multinn 48V 32000mAh Rechargeable E-Bike Lithium-Ion Battery Pack, with Charger + Built-in BMS, Electric Bicycle/Scooter Motor Replacement Battery

Description:

100% New 48V 32000mAh Lithium Ion Battery Pack, with Discharge BMS + Charger, Suitable for Electric Bicycle/Scooter Etc.

Parameters:

Battery type: 18650
Combination: 13 series 3 parallel
Single cell voltage: 3.7V
Nominal voltage: 48V
Input voltage: 48V
Output voltage: 48V
After the combined capacity: 32000mAh
Battery dimensions: 240×66×56 mm (There may be a 10 mm error)
Inside with protective circuit: overcharge, over discharge, over current, short circuit protection
Outside packaging: blue PVC

The Battery Charging Requirements:

The need for a dedicated lithium battery charger
Charging voltage: 48V
Charge current: ?5A

The Battery Discharge Requirements:

Output 18 lines, length 200 mm, red and black each one
Enter the outlet line leads to a 2.1 length 200 mm
Rated discharge current: ?10A
Maximum instantaneous current: 40A
Maximum operating current: 13A

Packing List:

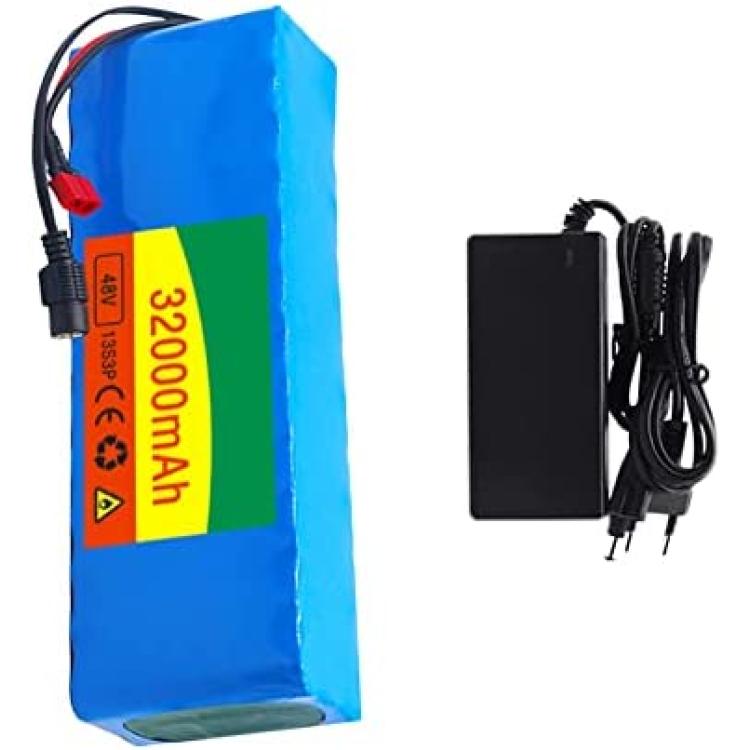

1×48V 32000mAh Battery (with BMS)
1×Charger
