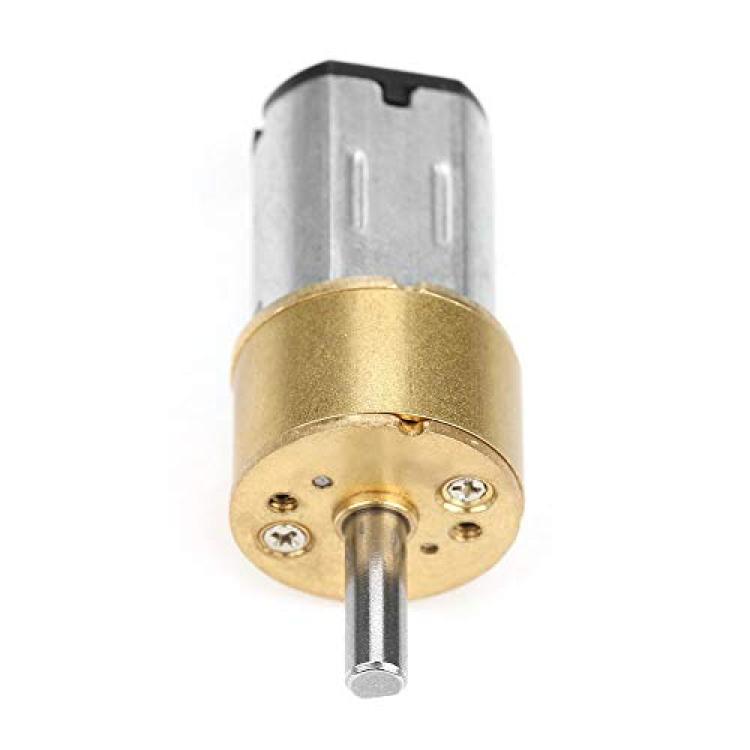

FTVOGUE Micro Metal Gear Box Dustproof Motor Speed Reduction Electric Gearbox DC6V 14MM N20 for DIY (100 RPM)
Availability: Pre-Order, Inquiry Price
About this product
*This DC motor features large moment of force, low speed, and low noise.
*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. This motor is adopted of pure copper wire coil, with low heat and low loss.
*This gear motor adopts seal form structure, have good dustproof effect
*Widely used in Electronic locks, DIY toy cars, tracking cars, balancing cars and so on
*We strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.
Description
Specification:
Voltage: 6V DC
Speed: 60 RPM, 100 RPM, 300 RPM, 600 RPM(Optional)
Gear Box diameter: 14mm/0.6in
Output shaft length: 10mm/0.4in
Output shaft diameter: 3mm/0.1in, cutting edge 0.5mm, D-shaped shaft
Size: 35*15mm/1.4*0.6in
Weight: Approx.13g/0.5oz Voltage
Gear ratio1:2981:100,1:50,1:50
No load
Speed60PRM100PRM300PRM600PRM
Current:30mA,30mA,40mA,50mA
Load:
Speed55PRM83PRM240PRM500PRM
Current:45mA,45mA,50mA,60mA
Moment of force: 460g.cm,320g.cm,140g.cm,65g.cm
Stall:
Current:1.1A
Moment of force: 4.2kg.cm,2.25kg.cm,2.0kg.cm,2.2kg.cm
Package list:Â
1 x DC Gear motor
