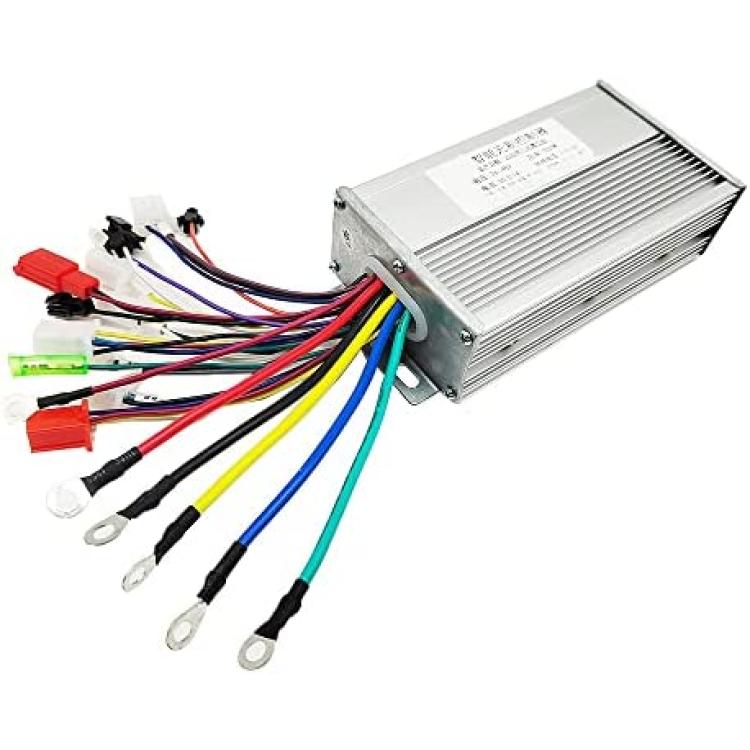

yuandai Electric Bicycle Bike Scooter e-Bike Brushless DC Motor Controller 48V 60V 64V 500W
About this product
*Application--It suitable for electric bicycles, scooter, etc.
*Premium Material--It made of aluminium alloy, this brushless controller is sturdy and durable.
*Sensitive Control--This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes.
*High Performance--The wires and interfaces are durable, and ensure low malfunction of long time use.
*Easy to Use-- The interfaces have instruction labels on them for your easy installation.
Description
48-64V 500W controller can work with hall sensor/hall sensorless
Rated Voltage: 48V-64V
Low Voltage : 31V/42V±0.5V
Rated Power: 500W
Limit Current: 30A
48V-64V 500W controller function:
1.LCD instrument line
2. 3-speed
3.cruise
4.self-learning
5.high brake
6.low brake
7.alarm power
8.alarm signal
9.reverse
10.throttle
11.hall
12.key lock? battery +?
13.battery +
14.battery -
15.motor
16.pointer meter line
how to connect controller?
1.connect the motor line (color to color?
2. connect the battery line(red:battery+ , black:battery-)
3. connect the controller throttle line, key lock?if throttle not have key lock, connect controller key lock to battery+?key lock must connect ?
4. connect the hall line(if motor without hall line, don’t need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again.if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.
