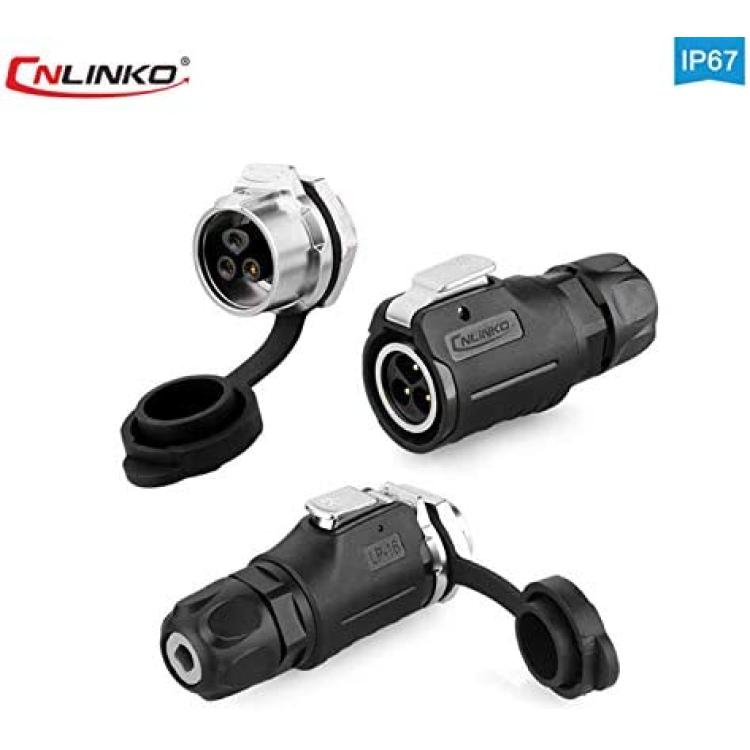

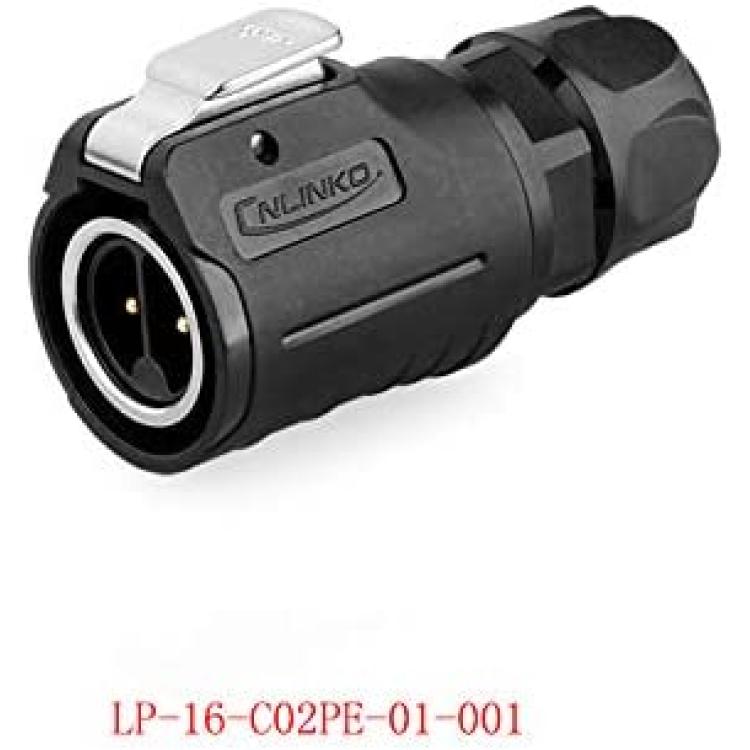

Aviation Connector M16 Plastic Male Plug + Metal Circular Female Socket Φ16mm Outdoor Waterproof IP67 Connectors with Cap Panel Mount 2 Pin Gold Plated for Industrial Device Power Signal
About this product

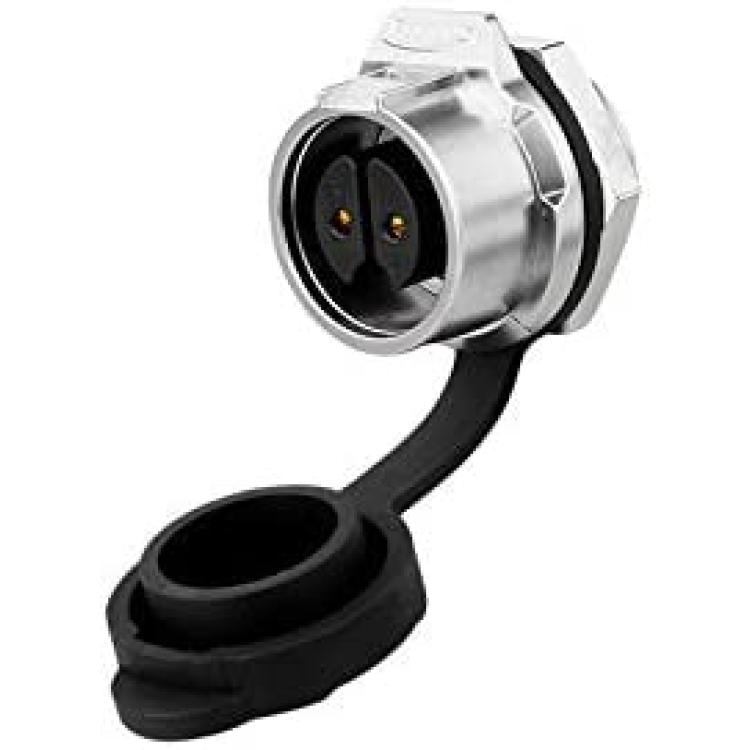

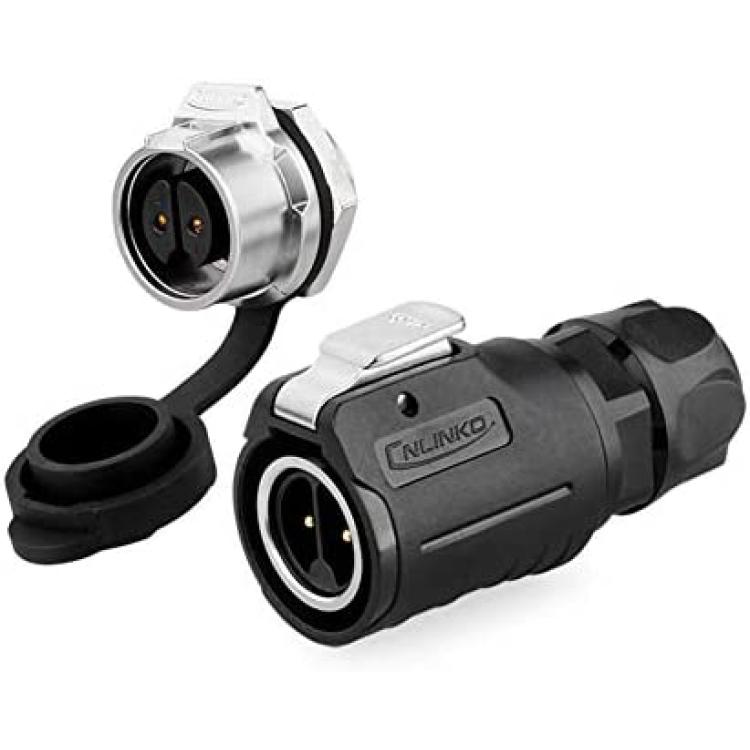

*Package list: 1 male plug + 1 female socket
*Humanization design achieved blind operation. Both soldering and crimping are available. Snap lock ensures stable and security firm.
*Gold-plated contacts, BPT material shell. High temperature resistance, anti-explosion, anti-corrosive.

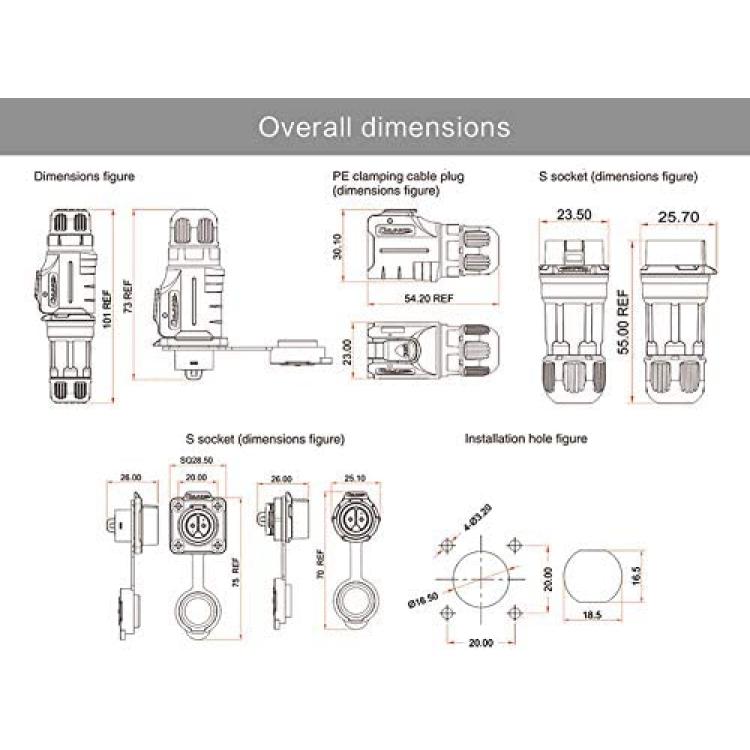

*Panel thread diameter:16mm. Waterproof level:IP67.
*Rated Current:10A. Operating voltage:500V. Withstanding Voltage 1 minute:2500V. Contact resistance:
Description

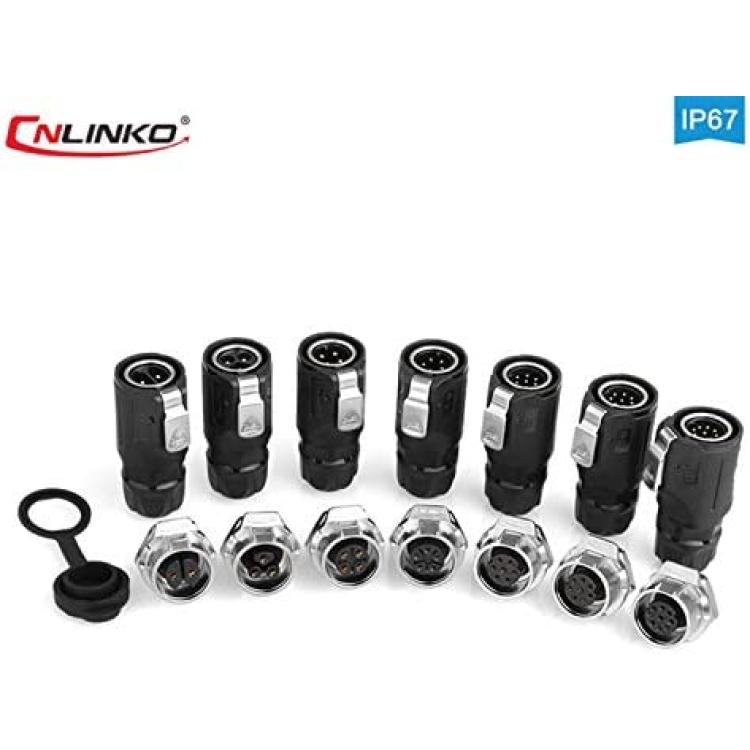

Specifications for 2pin, 3pin, 4pin:
Cable specification: 1.0m?-1.5m?/18-16 AWG
Diameter range: ?3mm??7mm
Contact diameter × number: ?1.5x2 / ?1.5x3 / ?1.5x4
Rated Current (A): 10A
Operating voltage (AC.V.rms): 500V
Contact resistance <2.5m?
Temperature rise: 10A contact temperature below 30?, 12A ......40??, 15A......50??
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: ?500M?
Protection level: IP65/IP67
Durability: ?500 times
Working temperature: -40??80?
Connecting mode: Plug unplug
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Specifications for 5pin, 7pin, 8pin, 9pin:
Cable specification: 0.15m?--0.2m?/26-24AWG
Diameter range: ?3mm??6mm
Contact diameter × number: ?1.0*5 / ?1.0*7 / ?1.0*8 / ?1.0*9
Rated Current (A): 5A
Operating voltage (AC.V.rms): 2500V
Contact resistance <5m?
Temperature rise: 10A ......30??, 12A......40??, 15A......50??.
Withstanding Voltage (AC.V) 1 minute: 1500V
Insulation resistance: ?500M?
Protection level: IP65/IP67
Durability: ?500 times
Working temperature: -40??80?
Connecting mode: Plug unplug
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Package list:
1 male plug +1 female socket
