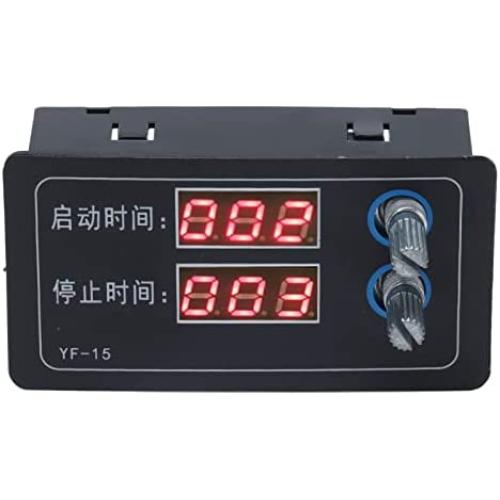

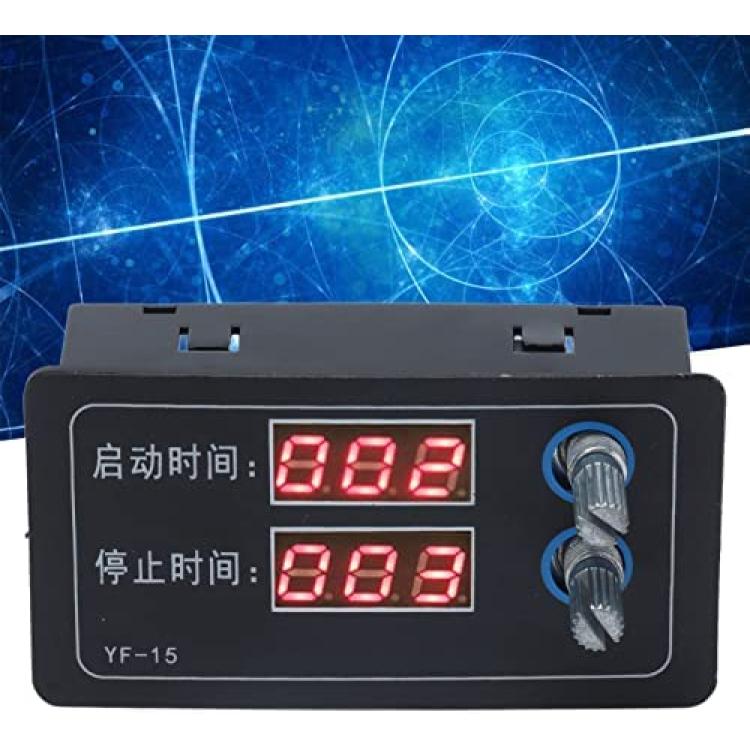

FTVOGUE YF‑15 Digital Timer Delay Switch Motor Controller Module Timing Switch Controllor with LED Display for Generator,Module

How to Use:
Function Description:
Power automatic cycle work, stop, work, stop... An infinite loop
If the turn?on time is set to 0; Power delay start, no cycle;
If the disconnect time is set to 0; Power delay disconnect, no cycle;
Time Settings:

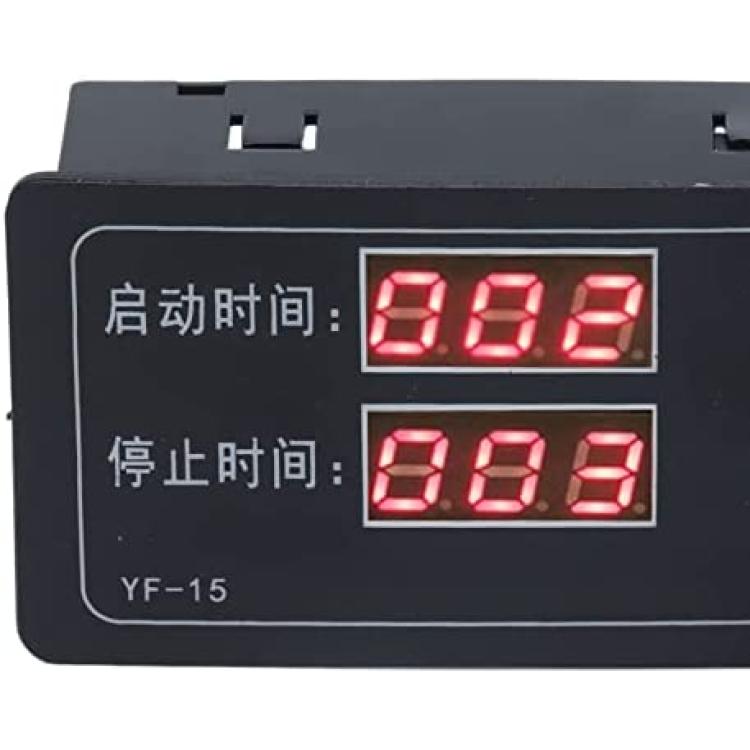

It shows the working hours;
The stop time is shown below;

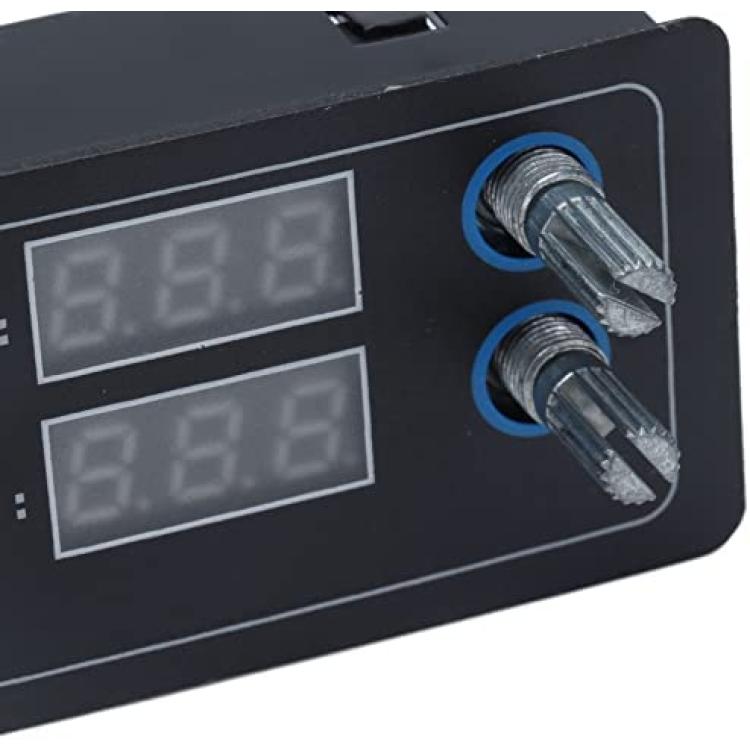

Rotating coding potentiometer can adjust the value; Press the code potentiometer to adjust the time unit;
Decimal point time unit description:
X.X.X. x Timing range: 0.001s to 0.999 seconds after the decimal point is in full
X.X when the decimal point is in the hundreds place, the timing range is from 0.01 to 9.99 seconds
X.X after the decimal point is in the tens place, the timing range is from 0.1 to 99.9 seconds
X X X has no decimal point. Timing range: 1 to 999 seconds
X X X. Timing range: 1 to 999 minutes after the decimal point
X X Timing range: 1 hour to 999 hours when the decimal point is after the tens and units digits

Specification:
Item Type: Time Delay Relay
Model: YF-15
Shell Material: ABS
Input Voltage: DC 7~27V Universal
Output Power: It Can Control DC Load Within 10A
Time Range: 0.001 Seconds ~999 Hours Any Time Adjustable
Package List:

1 x Time Delay Relay
