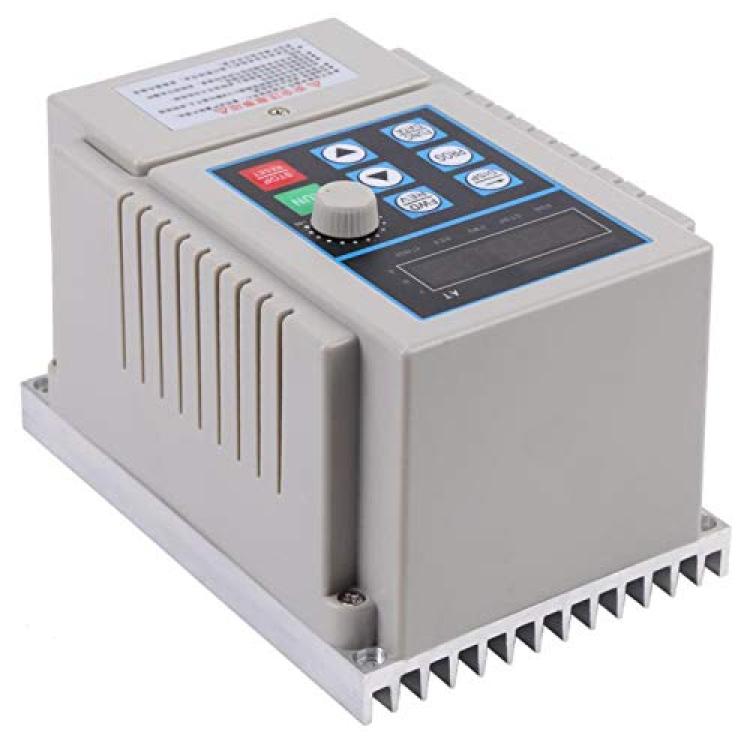

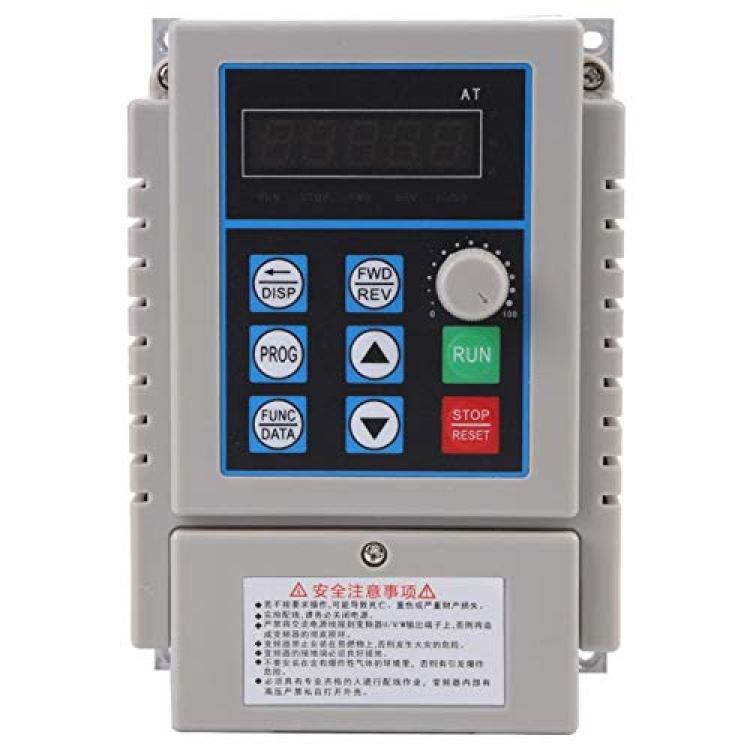

AT2-0450X Variable Frequency Drive Converter, 2.5A 220V AC VFD Converter Motor Speed Controller for Single-Phase 0.45kW AC Motor

AT2-0450X Variable Frequency Drive Converter, 2.5A 220V AC VFD Converter Motor Speed Controller for Single-Phase 0.45kW AC Motor

Name: AT2-0450X Variable Frequency Drive Converter, 2.5A 220V AC VFD Converter Motor Speed Controller for Single-Phase 0.45kW AC Motor
SKU: MM27478
Availability: InStock

Product Code: MM27478
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*۞۞۞【Great Torque and Speed Range】This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating driving range

*۞۞۞【Great Adaptability and Stability 】It has good anti-trip performance and ability to adapt to rough power supply, temperature, humidity and disturbance and developed with a large heat sink for better cooling that significantly improves stability

*۞۞۞【Low noise & Low Electromagnetic Interference】By optimizing the PWM control technology and the electromagnetic compatibility, the device runs with low noise and low electromagnetic interference

*۞۞۞【Easy to Use】Easy and convenient to use and wire, wires can be connected by screw terminals

*۞۞۞【Parameters】Suitable Motor Power: 0.45kw; Voltage: AC 220V(single-phase ); 16.5 x 11.5 x 10cm / 6.4 x 4.5 x 3.9inch; Weight: 1kg(approx.)

Description

Features:

Technical data:
Model: AT2-0450X
Area of ??application: Universal
Set for the power supply: Single phrase
Nominal current: 2, 5 A
Nominal voltage: AC 220 V (single phrase)
Supply voltage: low voltage

Suitable motor power: 0.45 kW
Filter: Built-in filter
DC power supply: Voltage type
Control method: V/F control circuit
Method for setting the output voltage: PWM control

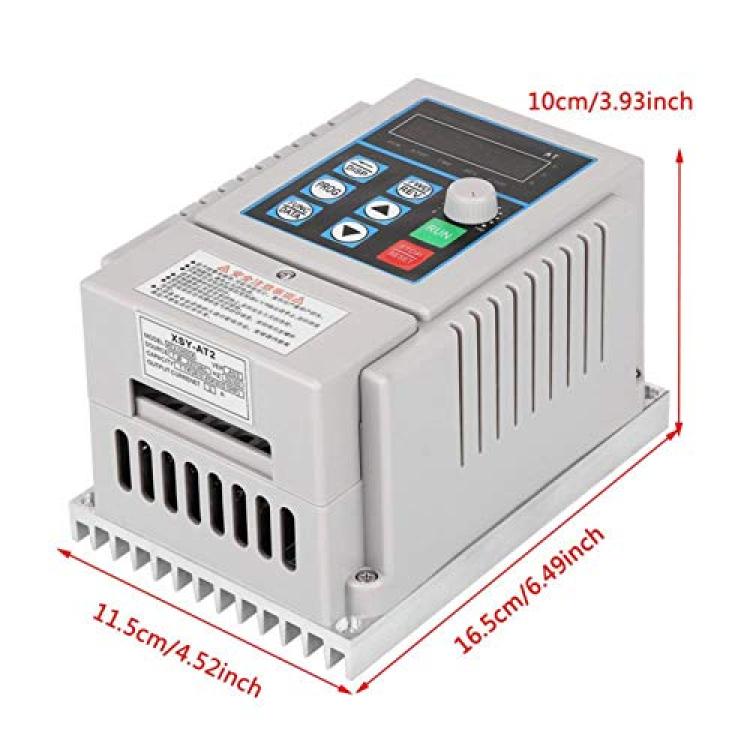

size: approx. 16.5 x 11.5 x 10 cm/6.4 x 4.5 x 3.9 inches
Quantity: 1 piece

Package contains:
1 x frequency converter

Note: When setting the The VFD no longer has to work with parameters, otherwise the parameter setting cannot be saved.
