FLASH HOBBY D4250EVO 3520 Outrunner Brushless Motor 600KV RC Electric Motor for RC Plane UAV Aircraft Fixed-Wing Coffee Machine & Robotic Arm
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 4.13 x 2.44 x 1.85 inches; 8.78 Ounces
*Date First Available : August 19, 2021
*Manufacturer : FLASH HOBBY
Description
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High-Temperature Resistant Copper Wire Winding
Working Temperature Range:-0?~+80?
Control Method: Use ESC And Adjust PWM signal For Control, PWM Adjustment Range 900- 2100US
Specification:

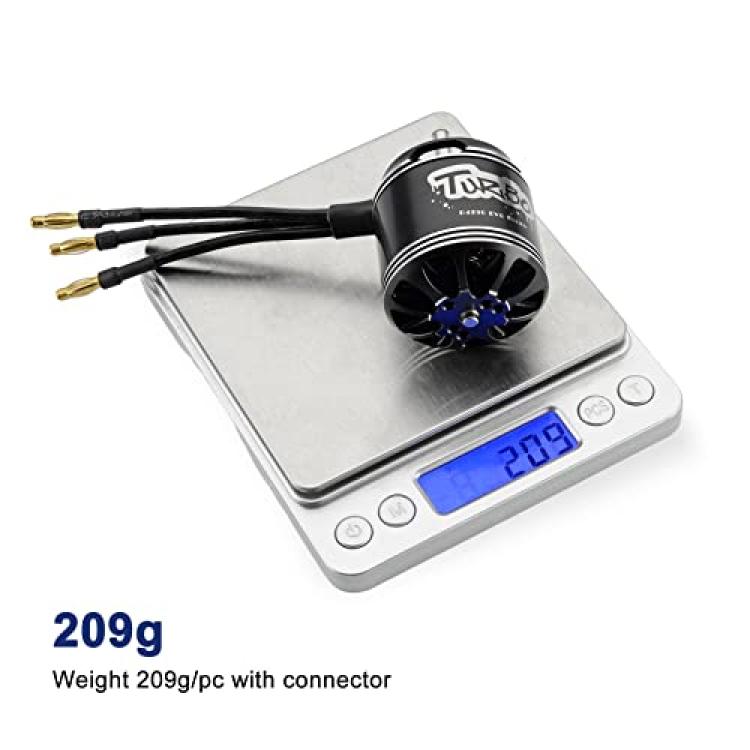

Weight: 209g (Including wires)

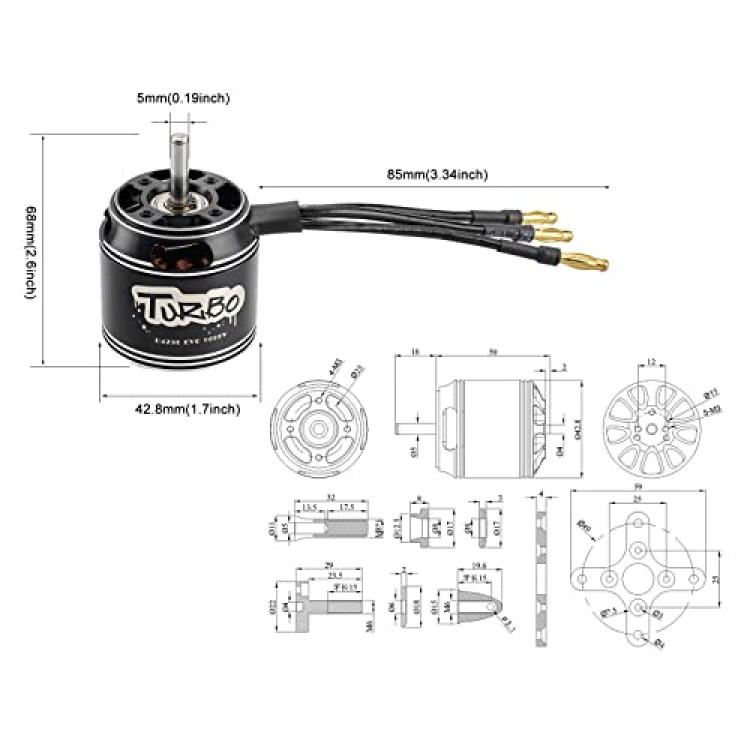

Motor Size: 42.8 x 50mm
Shaft Size: 5.0*70.0mm
Stator Diameter: 35mm
Stator Height: 20mm
Motor Mount: 25*25mm (M3*4)
Configuration: 12N14P
Max watts: 1252W
Max Current:57.83A
No Load current: 1.39A/10V
Resistance: 32.0m?
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop
