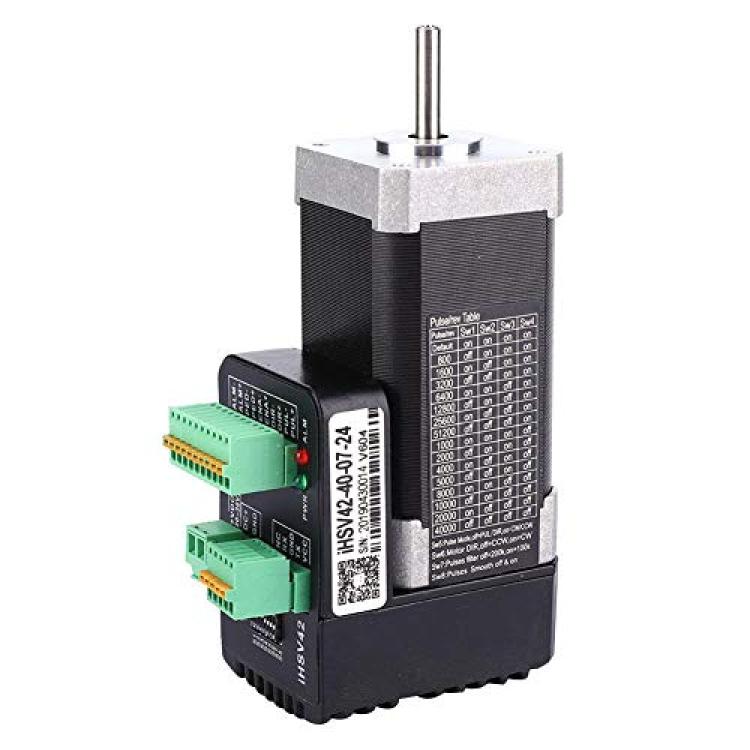

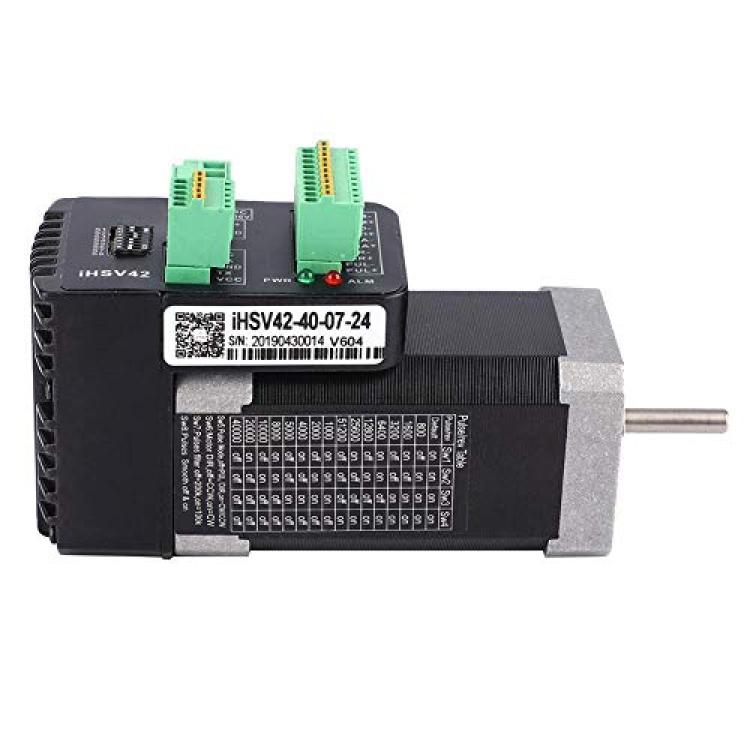

Nema 17 Stepper Integrated Servo Motor, 24V 5.1A 78W IHSV42-40-07-24 3 Phase High Speed Torque Digital Servo Motor 4000RPM with 1000 Lines Encoder, 2 in 1 Motor and Driver for CNC Control

Features:
2 in 1 motor and driver, saving space. Full closed loop, precise position and speed control for demanding application requirements. High resolution encoder provides precise positional accuracy. Three adjustable feedback loop control modes(position loop, speed loop, and current loop) Double pulse control, smooth and precise. Stable performance, low heat, high efficiency.

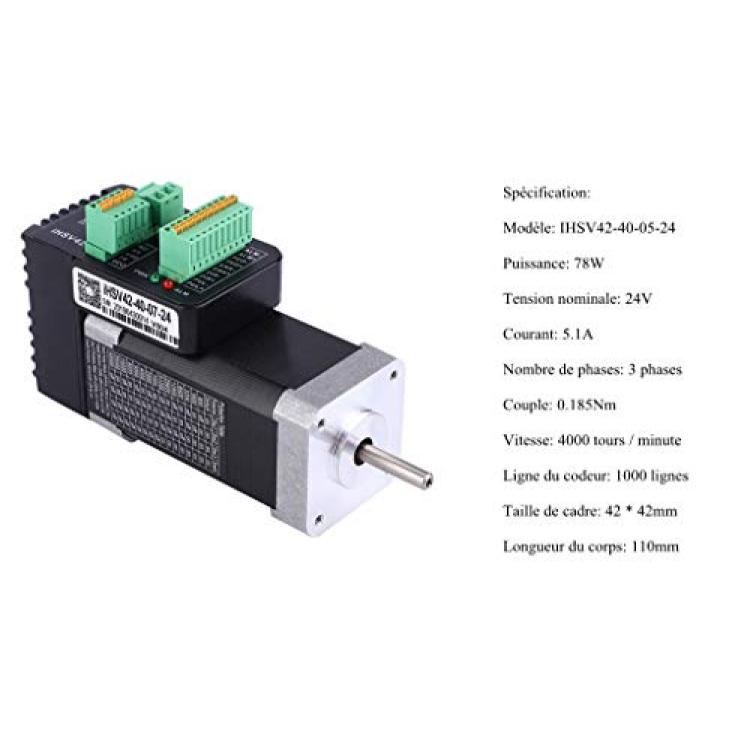

Specification:
Model: IHSV42-40-05-24
Power: 78W
Rated voltage: 24V
Current: 5.1A
Number of Phase: 3 phase
Torque: 0.185Nm
Speed: 4000RPM
Encoder line: 1000 lines
Frame size: 42*42mm
Body length: 110mm


Package list:
1 * Integrated Servo Motor
