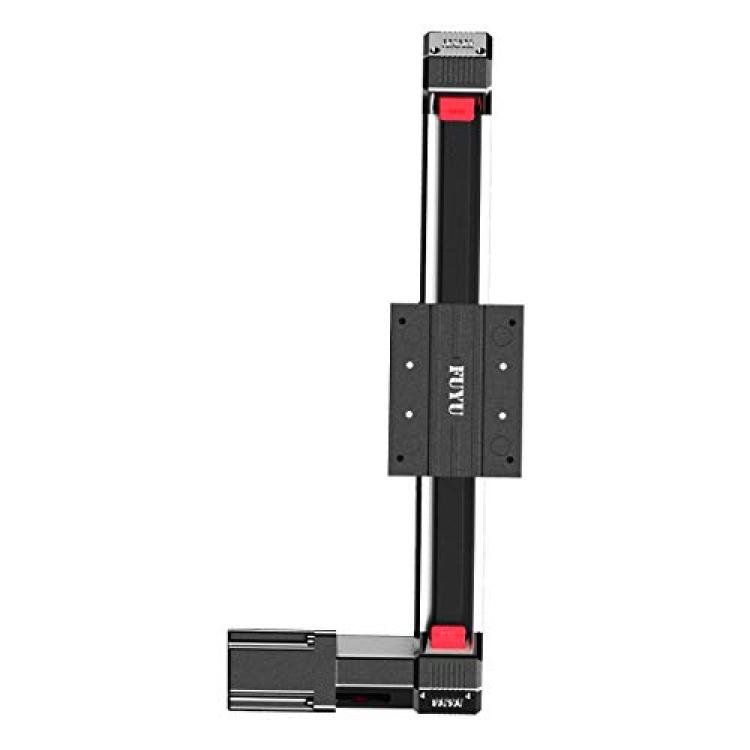

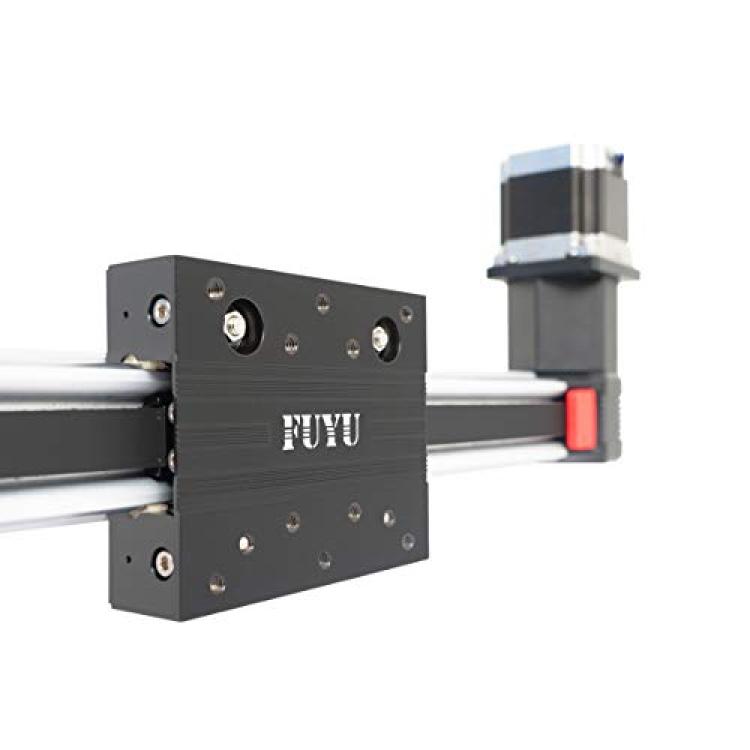

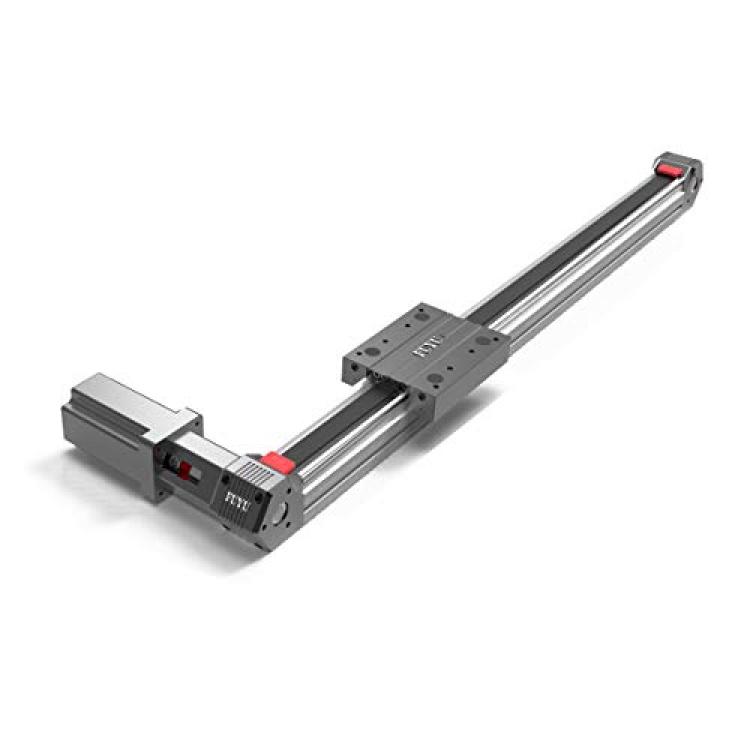

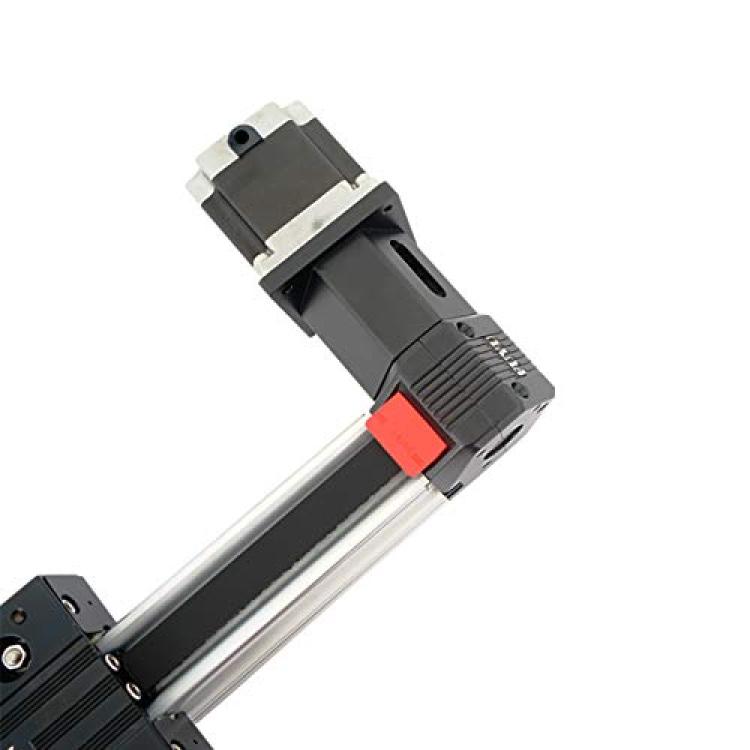

FUYU FPB50 CNC Linear Rail Slide Guide Belt Drive Linear Stage Motion Actuator Router Parts Motorized Nema Stepper Servo Motor[1500mm Stroke]

FUYU FPB50 CNC Linear Rail Slide Guide Belt Drive Linear Stage Motion Actuator Router Parts Motorized Nema Stepper Servo Motor[1500mm Stroke]

Name: FUYU FPB50 CNC Linear Rail Slide Guide Belt Drive Linear Stage Motion Actuator Router Parts Motorized Nema Stepper Servo Motor[1500mm Stroke]
SKU: MM28903
Availability: InStock

Product Code: MM28903
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Max stroke length up to 3500mm, contact us when need strokes are not within 500mm,1000mm,1500mm,2000mm

*Lubrication free maintenance design, dustproof profile, make low working noisy even to silent

*Use high quality bearing and slider make speed up to 4000mm/s at most

*Light weight and high rigidity, smooth and stable working, no shaking when have loadings

*Both stepper motor and servo motor can be mounted on this series linear guide, also, allow kinds of installation based on your requirements

Description

Parameter:
Repeat Position Accurancy: 0.05mm
Max Payload: 15kg
Profile width: 50mm
Pitch: 95mm
Noisy: ?70dB
Max Speed: 4000mm/s
Max Stroke: 3500mm
Max Stroke Package Length: 3750mm
Matched Motor: 400w servo motor and 5776 stepper motor

Motor can be mounted of positions as below:
Left
Upper Left
Lower Left
Right
Upper Right
Lower Right

Servo motor brand options:
Matsushita
Delta
Yasukawa
Mitsubishi

Tags: CNC Linear Rail, Linear Stage Actuator, Motion Actuator, NEMA Stepper Motor, Servo Motor, Router Parts, Linear Guide, 3500mm Stroke, 4000mm/s, 0.05mm Accuracy, FUYU FPB50
