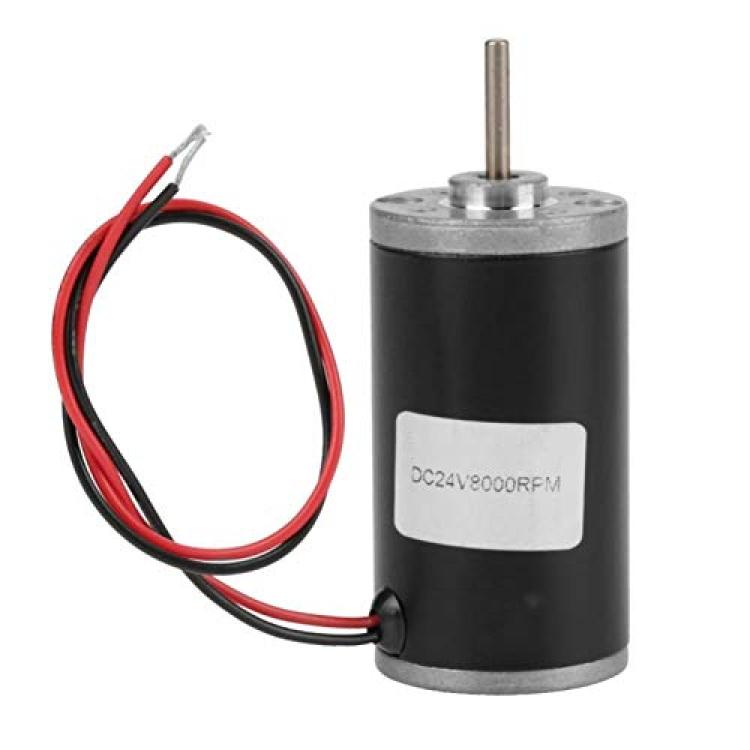

High Torque DC Motor 31ZY 6V/12V/24V 3500-8000rpm Permanent Magnet Motor High Speed CW/CCW (24V/8000rpm)
Availability: Pre-Order, Inquiry Price
About this product
*☂1☂ This motor uses precision machining, every step is made with care, the use of magnetic material treatment, insulation treatment, stable and reliable performance.
*☂2☂ The DC motor has large torque, low noise, and stable performance. It is very suitable for devices that require this performance. This DC motor supports clockwise and counterclockwise rotation.
*☂3☂ The motor is made of metal gears, which is wear-resistant, avoids tooth breakage, and has a long service life. The use of pure copper coils has low heat generation and low loss.
*☂4☂ This DC motor has the advantages of high temperature resistance, high wear resistance, strong carrying capacity, sturdiness and durability, and can effectively protect the gearbox motor body.
*☂5☂ Mainly used as DC motors for DC motors, electrolysis, electroplating, electric smelting, charging and excitation power supplies for AC generators, etc.
Description
Specifications:
Model: 31ZY
Outer diameter: 31mm / 1.22in
Shaft length: 19mm / 0.75in
Shaft diameter: 3mm / 0.12in
Type(Optional): 6V 4000rpm,12V 4000rpm,12V 8000rpm, 24V 3500rpm, 24V 5000rpm, 24V 8000rpm
Weight:165g
Wiring:
CW: red: "+", black: "-"
CWW: red: "-", black: "+"
Working voltage V(Optional)6V12V12V24V24V24V
No-load current mA?180?350?110?200?200?41
No-load speed  rpm400080004000500080003500
Rated moment of force gf.cm100200100200200150
Rated speed rpm320065003200400066002500
Rated current A?0.8?1.6?0.5?0.6?1.0?0.3
Locked-rotor moment of force gf.cm?500?1000?600?850?1200?400
Locked-rotor current A?3.3?6.5?2.3?2.0?4.4?0.8
Package includes:
1 x Motor
