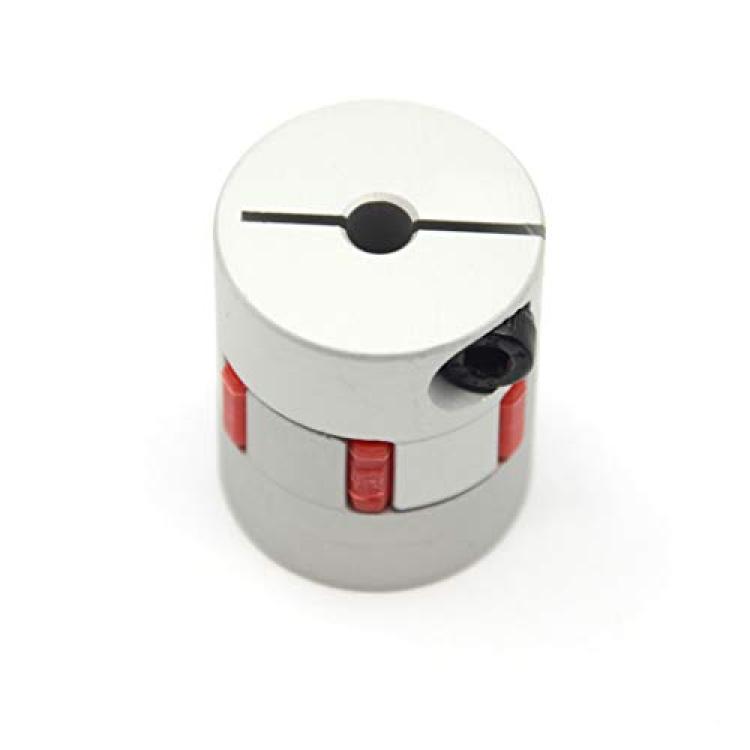

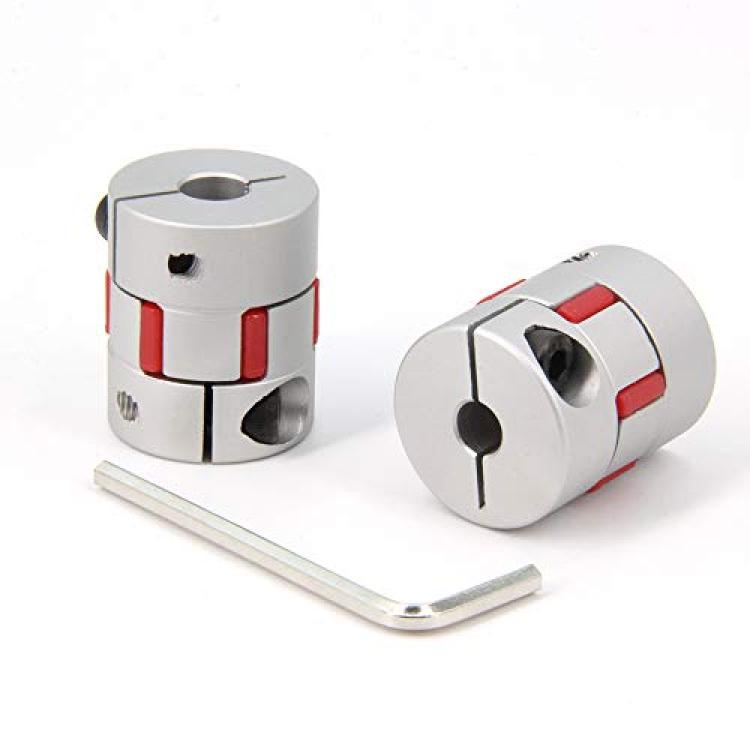

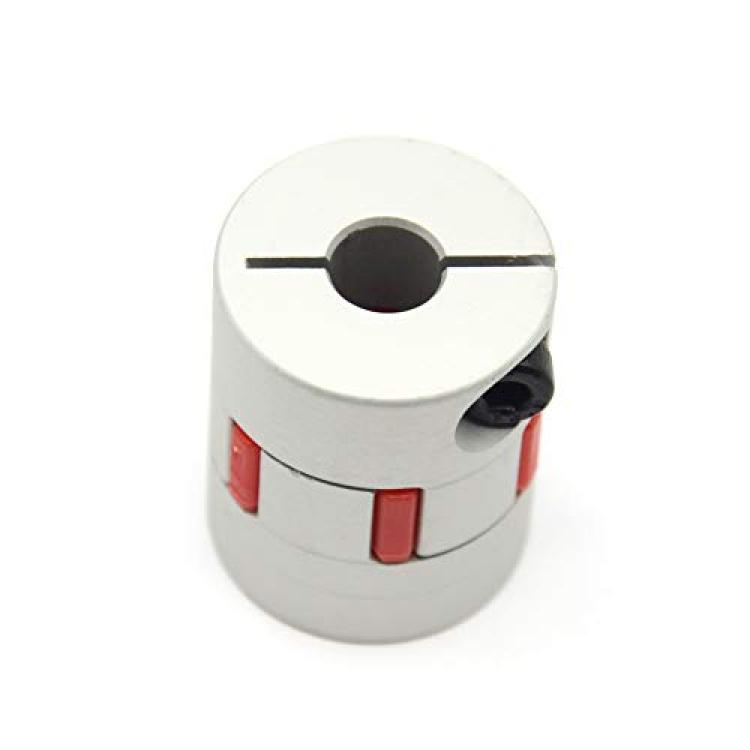

Zeberoxyz 2PCS 5mm to 8mm Aluminium Plum Flexible Shaft Coupling Diameter25mm Length30mm 5x8mm Motor Connector Flexible Coupler for 3D Printer CNC Machine and Servo Stepped Motor（5x8mm）
Availability: Pre-Order, Inquiry Price
About this product

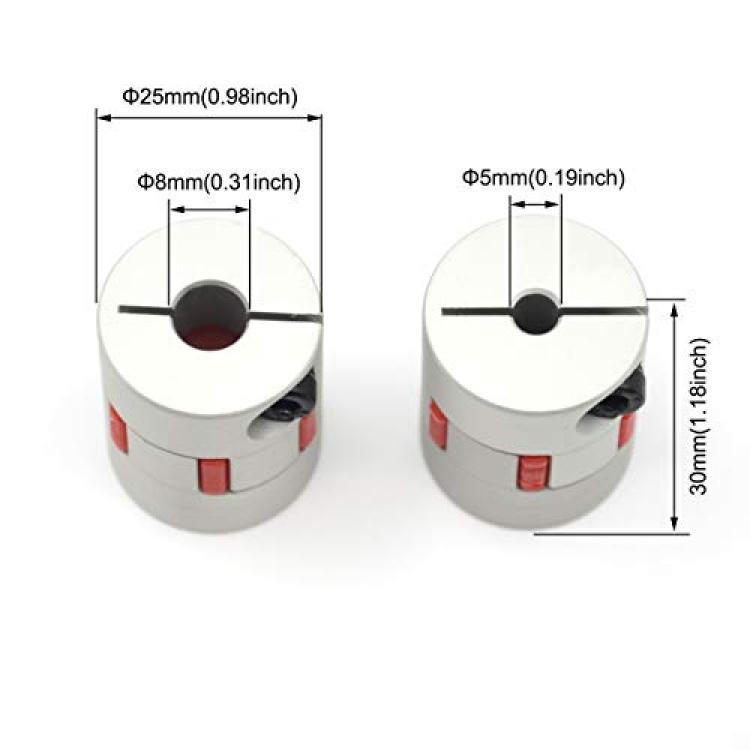

*Size:L30mm x D25mm/1.18inch x 0.98inch( L*D), Bore Diameter: 5mm to 8mm / 0.2inch to 0.31inch
*Material: Aluminum alloy, Surface oxidation treatment; Type: Plum shaped
*Super torque can absorb vibration, appropriate a large torque transmission.High hardness,Durable,and excellent response,not easy to loosen
*Flexibility of coupling shaft removes stress between the motor and driving components, The coupling can be disassembled and used in combination by itself
*The shaft couplers are mainly used for CNC machines,servo motors, spindle, step motor etc
Description
Product Specification:
Product Name: Shaft Plum Coupling
Type: Plum Shaped
Shaft Usage: 5mm to 8mm / 0.2inch to 0.31inch
Size: L30mm x D25mm/1.18inch x 0.98inch( L*D)
Material: Aluminum Alloy,Polyurethane
Main Color: Silver Tone,Red
Weight:30g for each
The shaft couplers are mainly used for CNC machines,servo motors, spindle, step motor etc

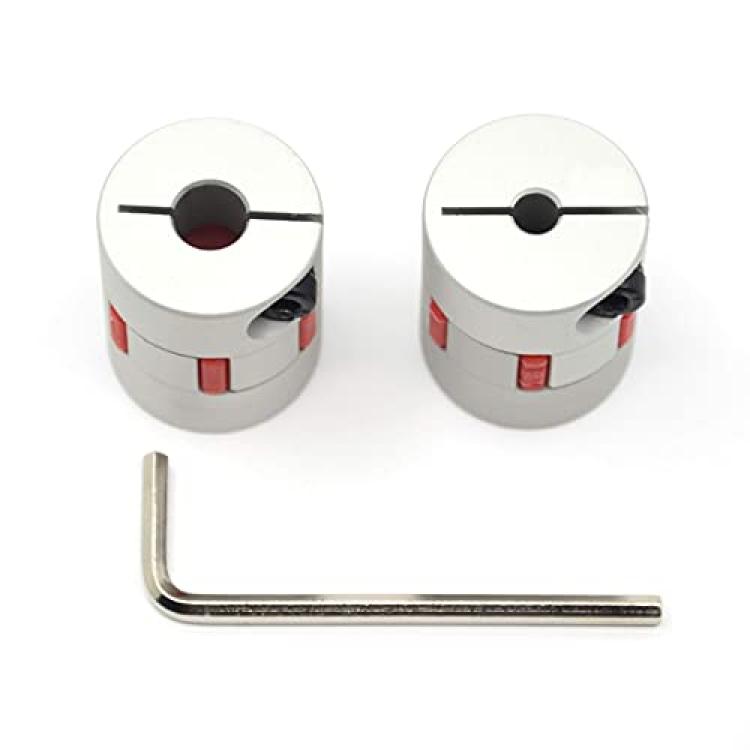

Package Content:
2 x Shaft Plum coupling
1x Allen Key
PLEASE NOTE:
Please allow 0-3mm error due to manual measurement.
The shaft coupler is not elastic, can not modify the concentricity.
Shaft must be located in a straight line.
If your equipment is eccentric already, then it will make noise and cause off-centering.
Please be cautious before your final purchasing, thank you. Any question or problem, do not hesitate to contact us,We will reply you within 24 hours.
