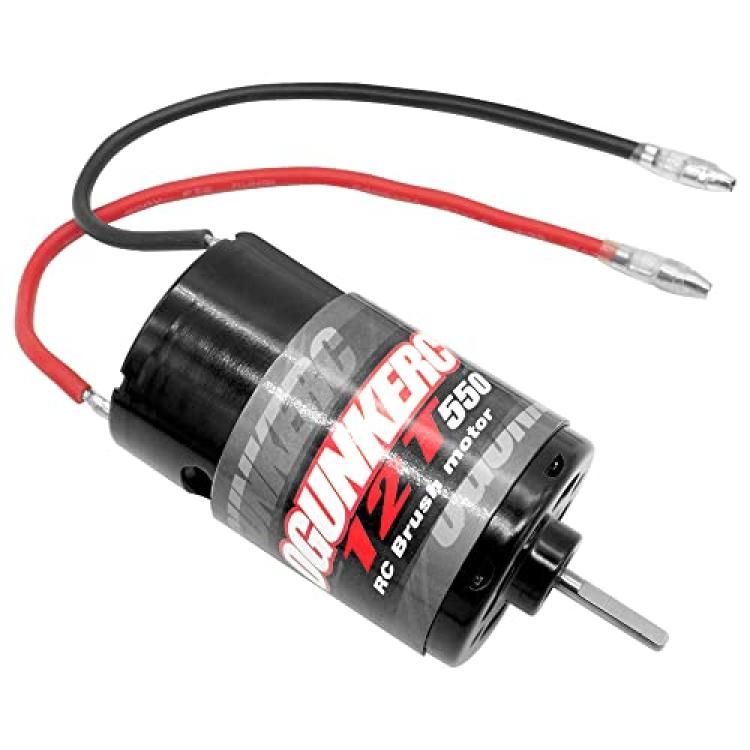

OGRC Motor 550 12T Brushed Motor for 1/10 Traxxas Slash 2WD/Traxxas Slash 4WD (Part:#3785) Redcat ARRMA AXIAL HSP HPI Wltoys Kyosho HELION
Availability: Pre-Order, Inquiry Price
About this product
*12T 550 Motor has a 30% longer armature than a standard 540 size motor for extreme monster torque, 3.175mm output shaft, Input voltage: 6-8.4V (Lipo&Nimh), 【Note: not compatible with 3S lipo battery】
*OGUNKE RC 12T 550 motor is designed for incredible mod-motor power output with virtually maintenance-free operation, and long-lasting performance. smoothness for best reliability and maximum 22500 RPM
*OGUNKE RC 12T 550 motor’s integrated cooling fan pulls cool air through the motor to keep temperatures down. A cooler running motor allows faster speeds, longer runtime, and extended motor life
*550 12T Motor Suitable for Rc 1/10 Scale Electric Short Course Truck Redcat ARRMA (GRANITE SENTON TYPHON)/AXIAL/HPI/HELION 10SC/HSP/Wltoys/Kyosho/etc.
*550 12T Motor Extended output shaft design, perfectly compatible (Part: #3785) for Traxxas Slash 2WD TRA58024/TRA58034-1/TRA58094-1/TRA58076-4/Traxxas Slash 4x4 1/10 4WD Short Course Truck TRA68054-1
Description
Specifications:
Item name: RC 550 motor
Color: Black
Size: 550
Turns: 12T
Watts: 137W
Max voltage: 6-8.4V
Max Amps: 70A
IO: 1.4A
Resistance: 0.0043
KV(RPM/Volt): 12T
Max RPM: 22500
Diameter: 36mm
Length: 55mm
Length of extend shaft: 11mm
Shaft diameter: 3.175mm
Weight: 223g
Package imformation:
Package weight: 228g
Package size: 7.5*4*4cm
Package list: 1*RC 550 motor
