Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics

Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics

Name: Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics
SKU: MM5089
Availability: InStock

Product Code: MM5089
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*42-60 nema 17 stepper motor, size 42 * 42 * 60mm

*Come with 1M (39.3") Cable

*High torque -Holding torque up to 0.7Nm. Low loss stators have better high speed performance

*Widely work for Most 3D Printer CNC Machine and Robotics

*For the sequence of the motor cable difference, you need swap middle two wires (the green and the red) of one end if you want use it for ender 3 series

Description

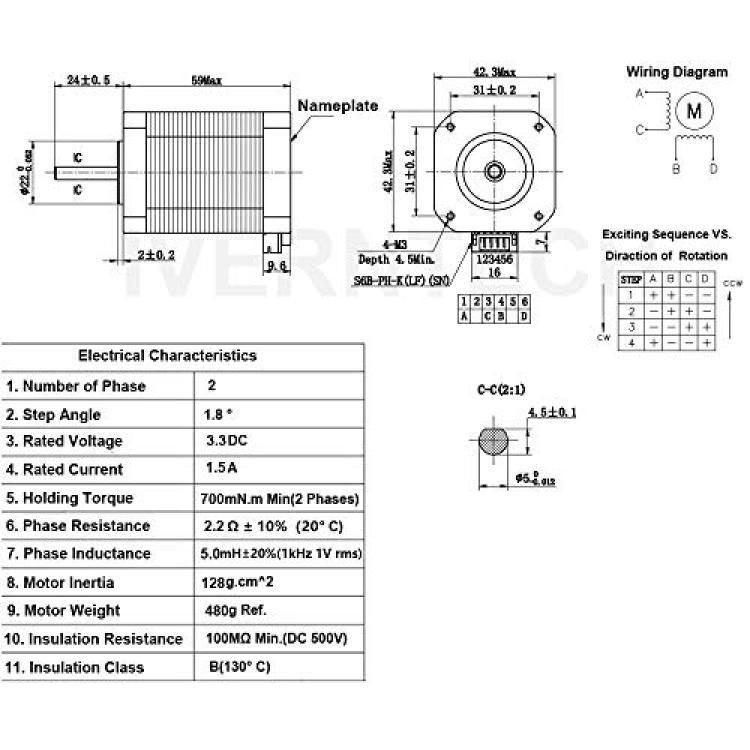

Iverntech 42-60mm Nema 17 stepper motor

Motor Type: Bipolar Stepper
Number of Phase: 2
Number of Leads: 4
Step Angle: 1.8 deg.
Rated Voltage: 3.3V DC
Rated Current: 1.5A
Holding Torque: 700mN.m Min
Phase Resistance: 2.2ohms±10%?20??
Phase Inductance: 5.0mH±20%(1KHz)
Rotor inertia: 128g.cm2
Item Weight: 480g

Package List:

1 x 42-60mm Nema 17 Stepper Motor

1 x 1M motor cable
