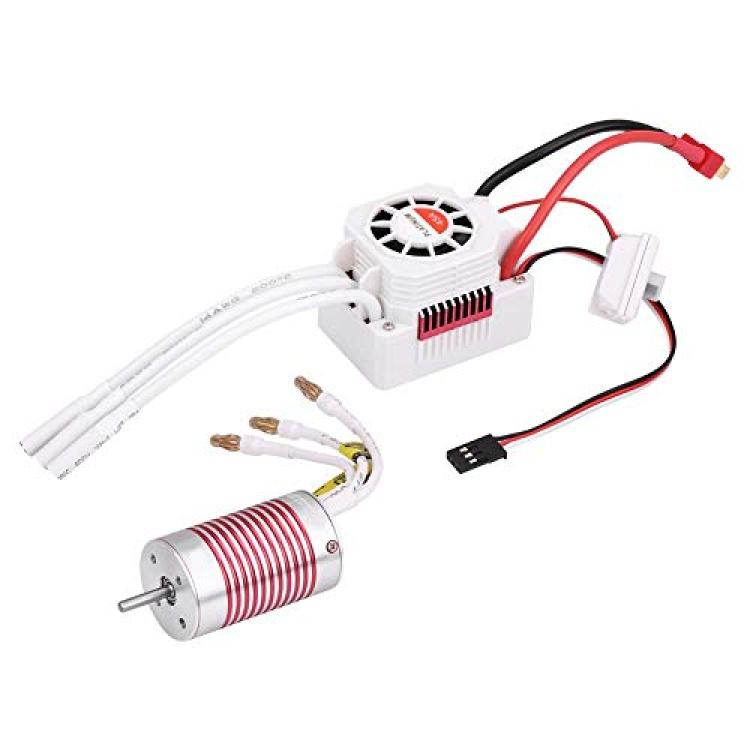

Motor ESC Combo, superss hobby Platinum 2845 4370KV Brushless Waterproof Motor 45A ESC for 1/12 1/14 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 poles, 12 slots, and high torque

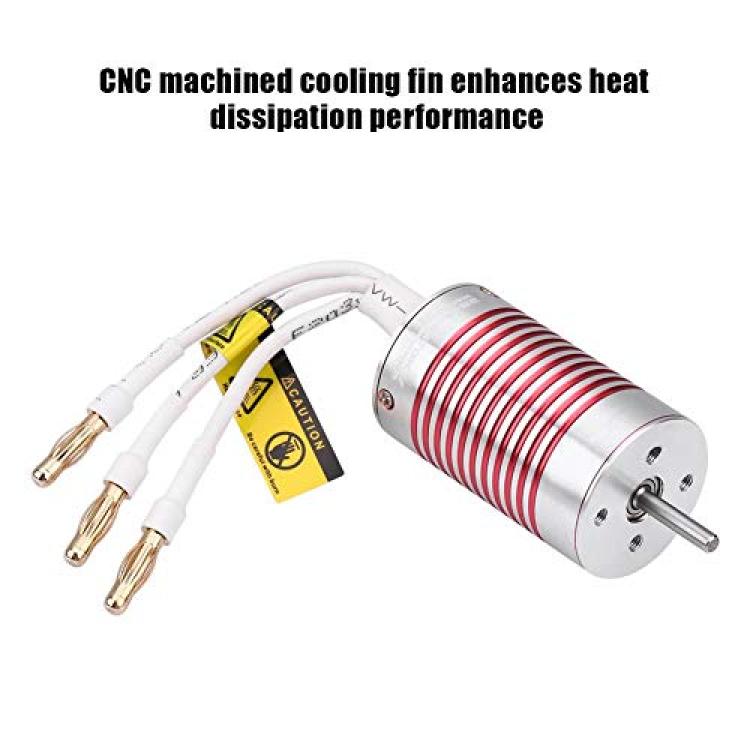

*CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it exquisite and durable
*High purity copper windings maximizes efficiency, with high temperature resistance
*High-speed ABEC5 bearing is precision and stably, with low friction, good durability
*Motor plug is 4mm gold plated connector, install it with M3 screw
Description
Features:Â
4 poles, 12 slots, and high torque. CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it exquisite and durable. High purity copper windings maximizes efficiency, with high temperature resistance.  High-speed ABEC5 bearing is precision and stably, with low friction, good durability. Motor plug is 4mm gold plated connector, install it with M3 screw. Balanced and smooth rotor can get best reliability and maximum RPM. Also, rotor is removable and replaceable. Ultra-thin silicon lamination behaves high magnetic permeability, good insulation and heat resistance.
Specification:Â
Material: Metal
Color: Shown As Pictures
Weight: 262g
Brand: superss hobby
Type: RC Model Part & Acces

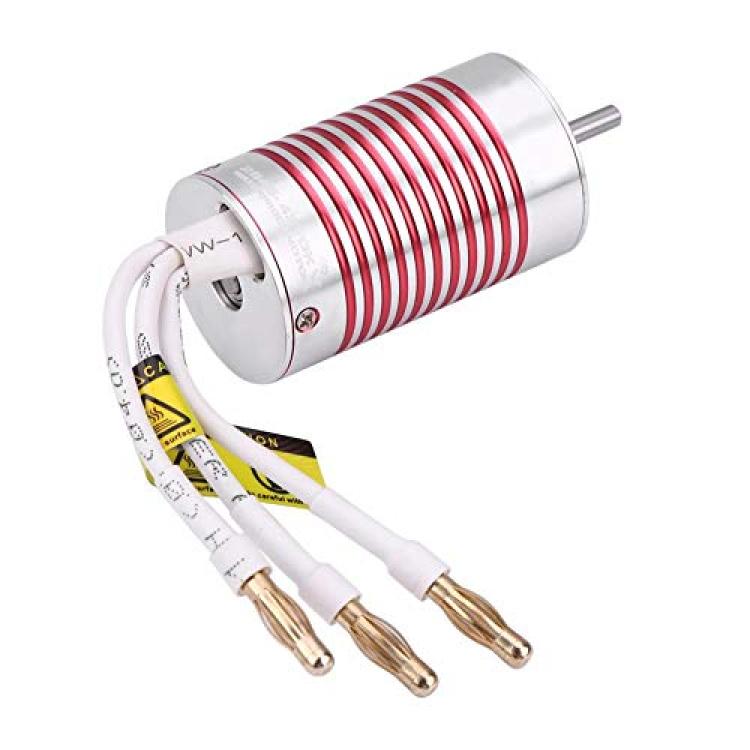

Motor Specification:
Motor Model: F540
Power: 800 W
Max Voltage: <12V
Max Current: 66 A
KV: 4370KV
Max RPM: 50000
Diameter: Approx. 36mm
Length: Approx. 50mm
Length of Shaft: Approx. 15mm
Diameter of Shaft: Approx. 3.175mm
Connector Type: 4mm Banana Plug
Mounting Hole: M3

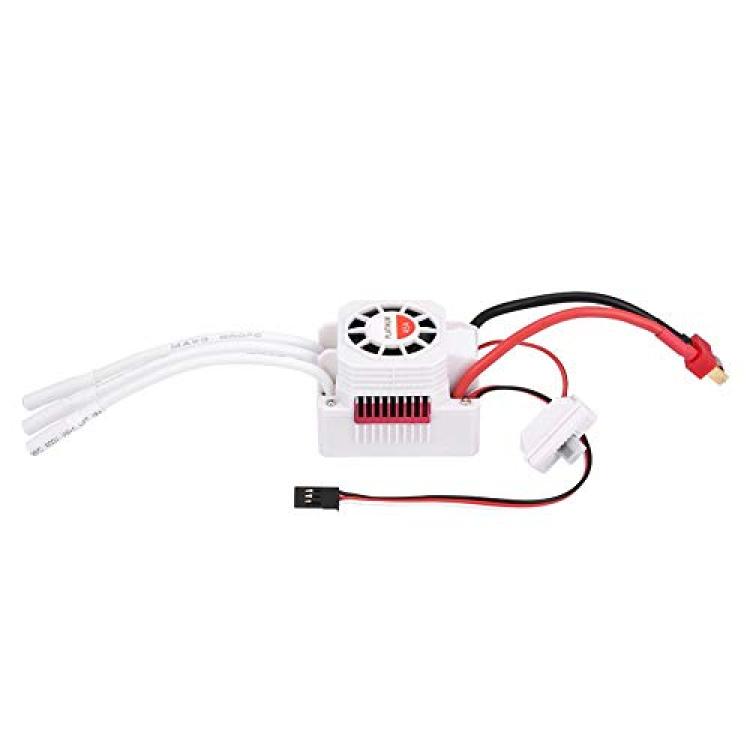

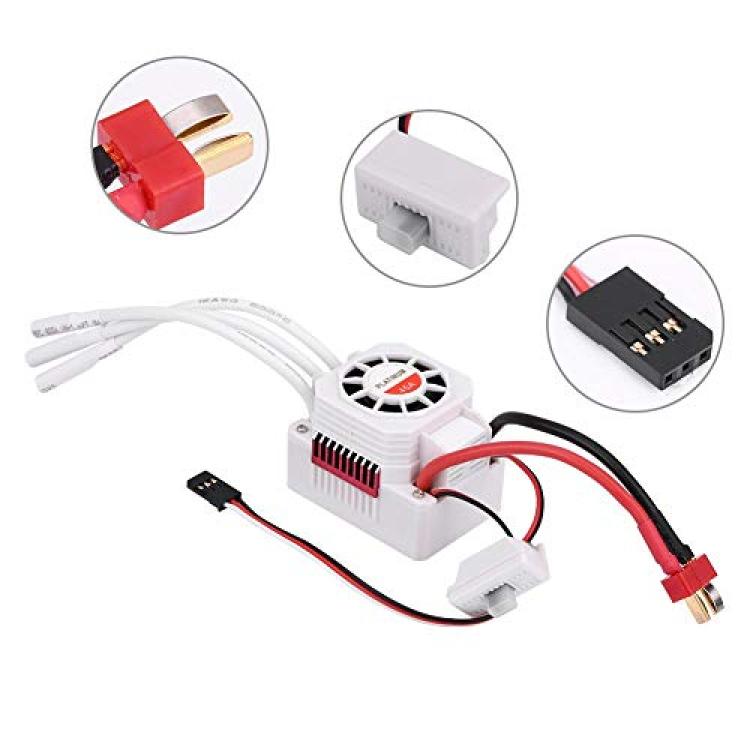

ESC Specification:
Continuous Current: 45 A
Brust Current: 240A
Suitable Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output: 5.8V/3A (Switch Mode)
Power Plug: T-plug
Motor Connector: 4mm Banana Female Plug
Size: Approx. 50.8 * 38.5 * 33.5mm / 2 * 1.52 * 1.32inch
Package List:
1 * Motor
1 * ESC
2 * Manual
