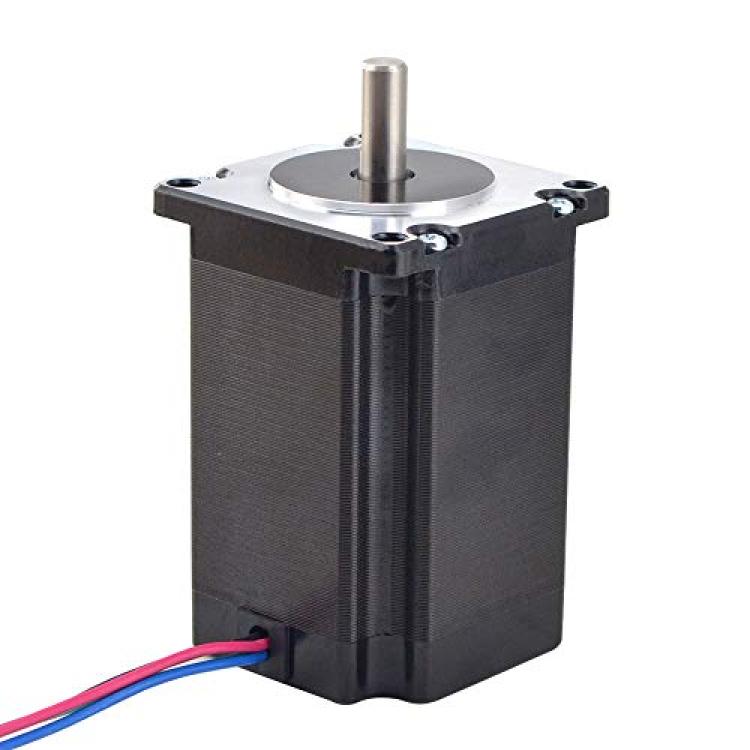

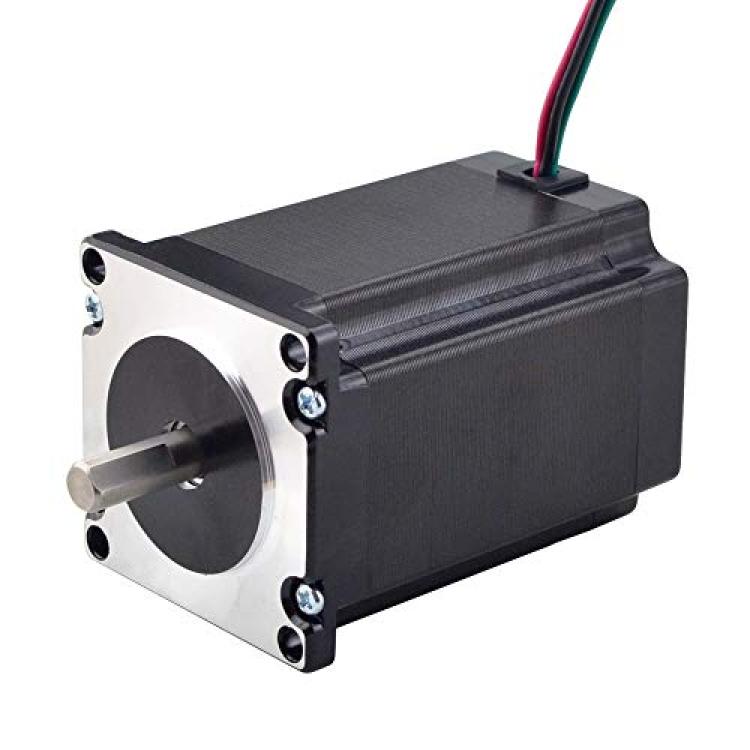

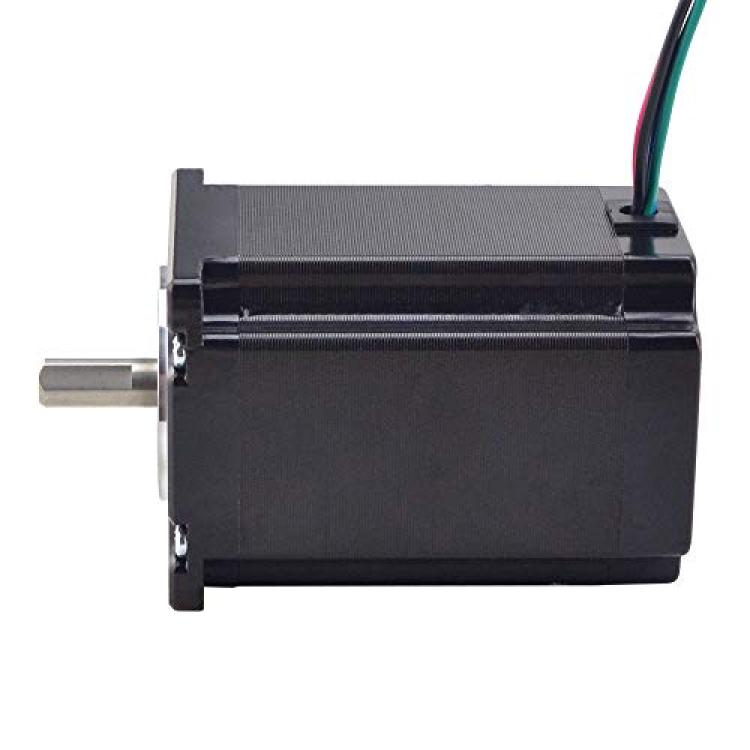

STEPPERONLINE Nema 23 Stepper Motor 2.4Nm(339.79oz.in) 4.0A 8mm Shaft 57x57x82mm 4 Wires
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Package Dimensions : 7.83 x 4.41 x 3.82 inches; 2.65 Pounds
*Item model number : 23HS32-4004S
*Date First Available : December 14, 2018
Description
Electrical Specification
*Manufacturer Part Number: 23HS32-4004S
*Number Of Phase: 2
*Step Angle: 1.8 deg
*Holding Torque: 2.4Nm(339.79oz.in)
*Rated Current/phase: 4.0A
*Phase Resistance: 0.65ohms
*Inductance: 3.2mH ± 20%(1KHz)
Physical Specification
*Frame Size: 57 x 57mm
*Body Length: 82mm
*Shaft Diameter: ?8mm
*Shaft Length: 21mm
*D-cut Length: 15mm
*Number of Leads: 4
*Lead Length: 300mm
*Weight: 1.2kg
Connection
A+: Black, A-:Green, B+: Red, B-: Blue
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
