DC Motor Speed Controller, PWM 10-55V 12V 24V 36V 48V 60A, Stepless DC Motor Speed Controller with switch function and LED Display (1 PCS)
About this product

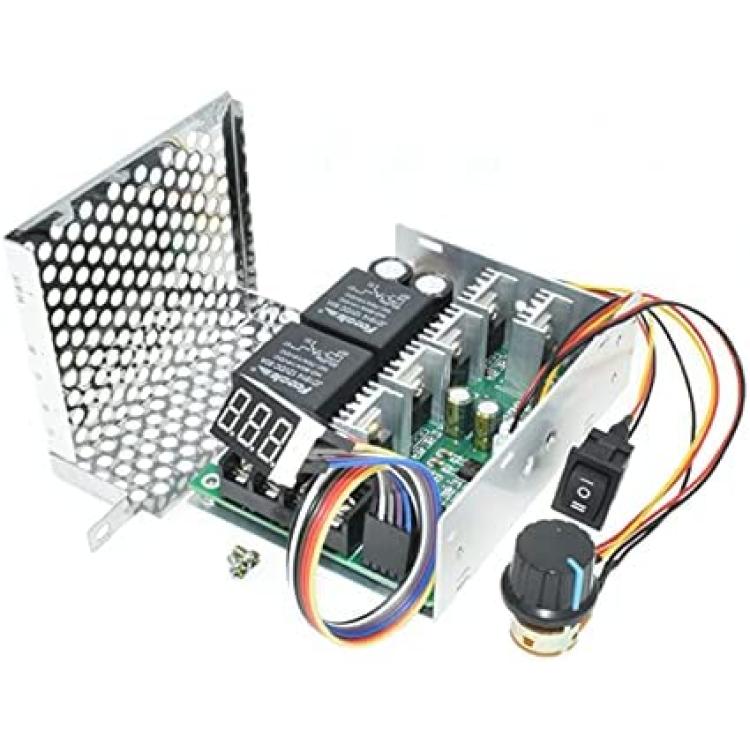

*Material:Stepless DC motor speed controller made of electronic components, The enclosure is an aluminum enclosure,which is strong and not easy to damage.
*Features:The aluminum housing has many round holes on the sides and top to help dissipate heat from DC motor speed controller.

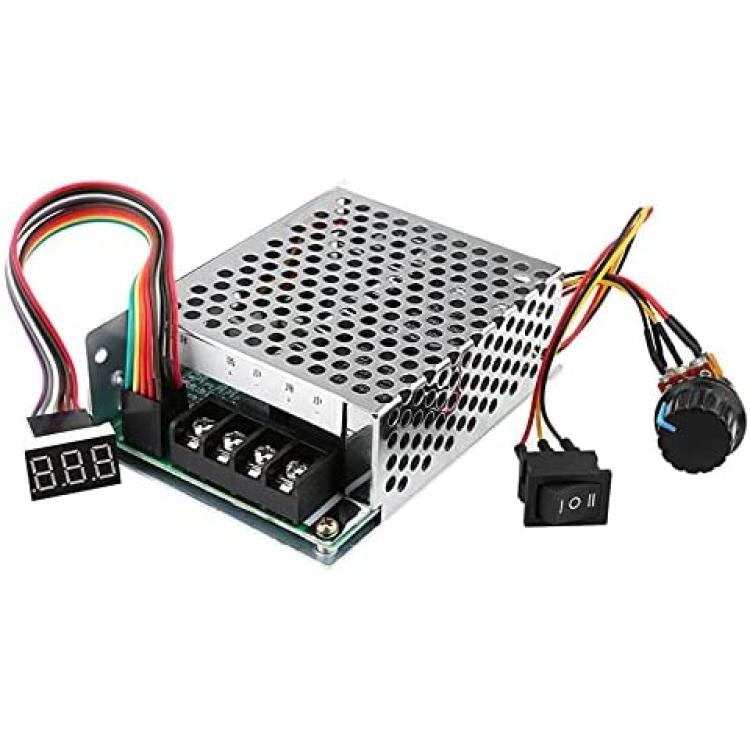

*Easy to use：Motor governor comes with a switch function and potentiometer knob to smoothly adjust motor speed from 0% ~ 100%.and with Digit Display, which is highly adaptable and makes it more convenient to change the direction of the motor.
*Note: This is not a power supply module. The speed can only be adjusted when the motor is connected.Not connected to the motor, the multimeter output is no change.
*Package contains: 1 * Stepless DC Motor Speed Controller
Description
Technical specifications:
Input voltage: DC10-55V (equal to the rated voltage of the motor)
Output voltage: linear under load
Current: 60A
Continuous current: 40A (long time with attention to heat dissipation or reduce the current use)
Type of speed regulation: current regulation
Speed regulation mode: potentiometer (linear)
Support motor: DC brush motor
Forward and reverse: support
Control frequency: 15KHZ

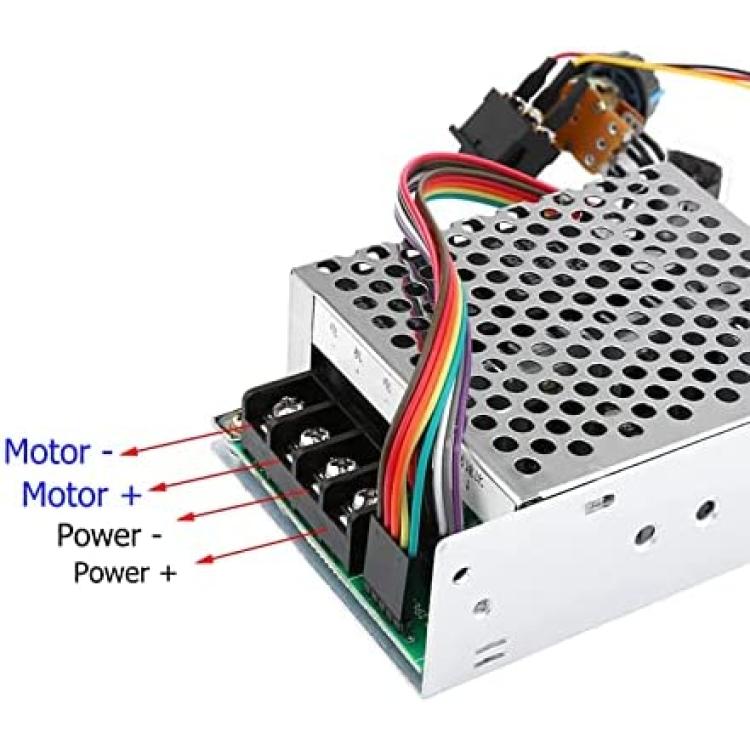

Wiring type: terminal
Knob specification: 100K (with switch)
Wiring type: Barrier type terminals Specifications of PWM DC motor speed controller:
Main board size: 3.93in*2.99in*1.10in/100MM*76MM*28MM

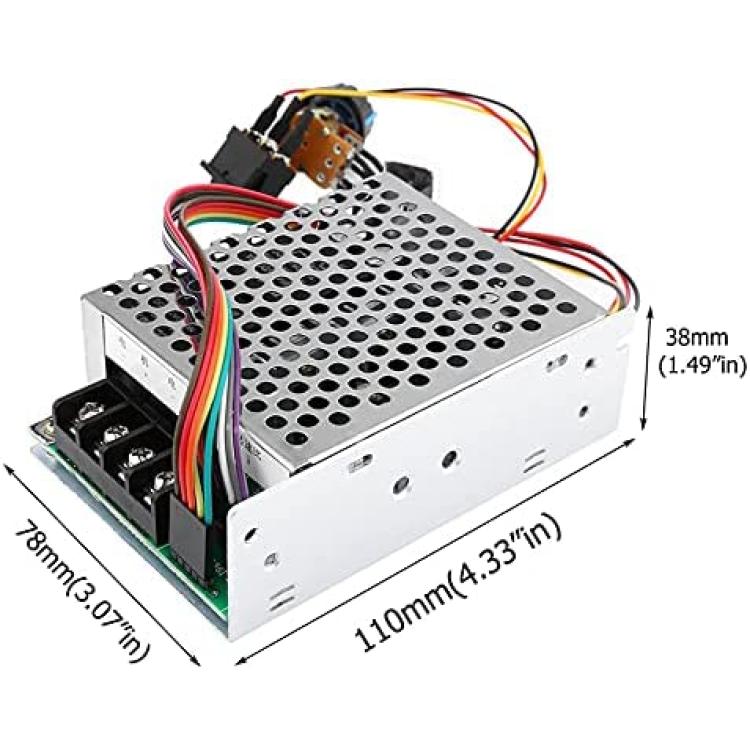

Shell size: 4.33in*3.07in*1.49in/110MM*78MM*38MM
Product net weight: 249g Note: Ensure that the positive and negative connections are correct before powering on, do not touch the heat sink with the wiring, touch may burn the circuit board.
