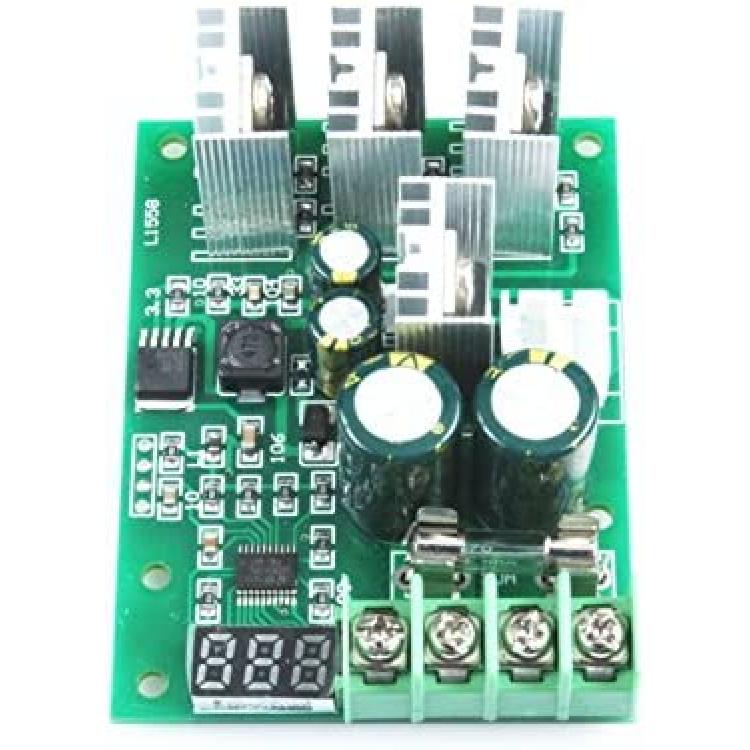

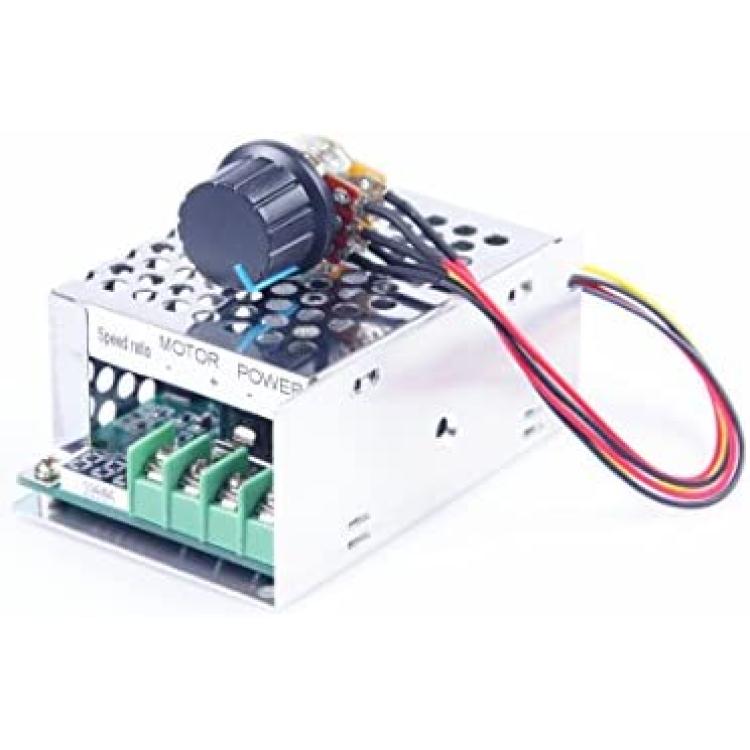

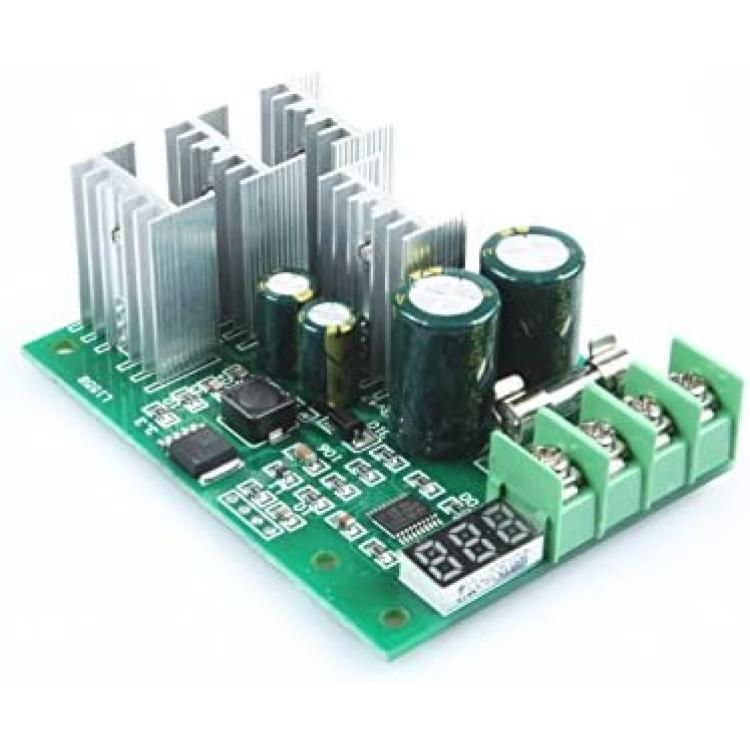

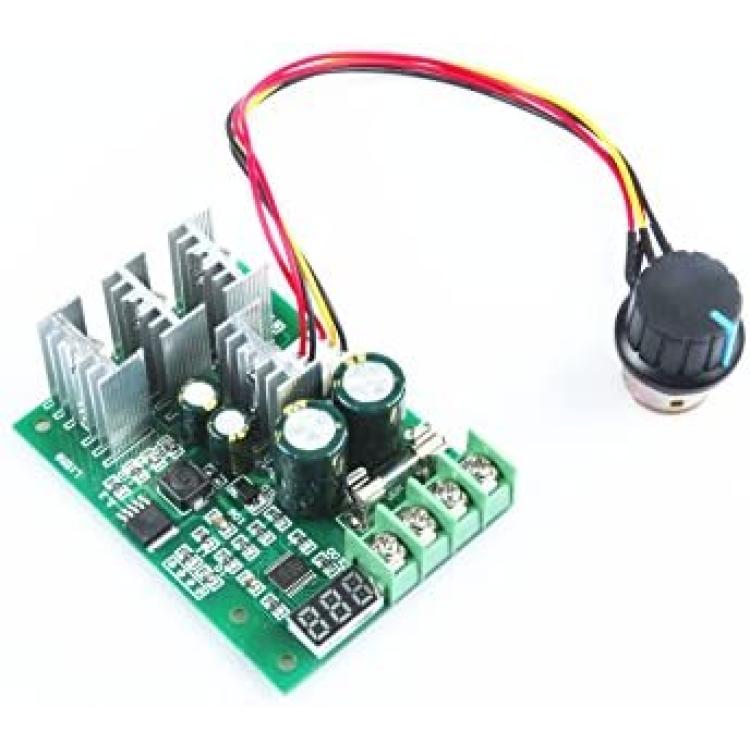

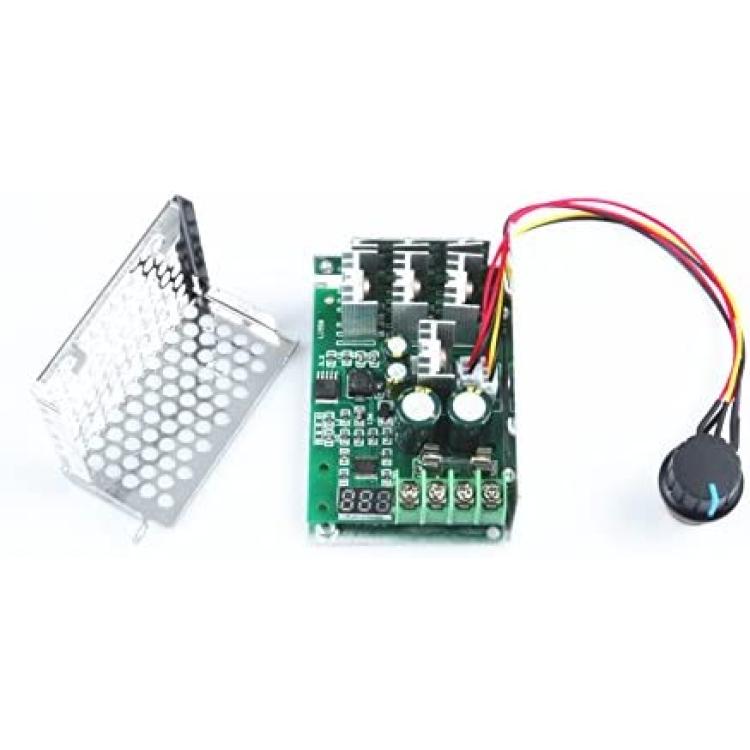

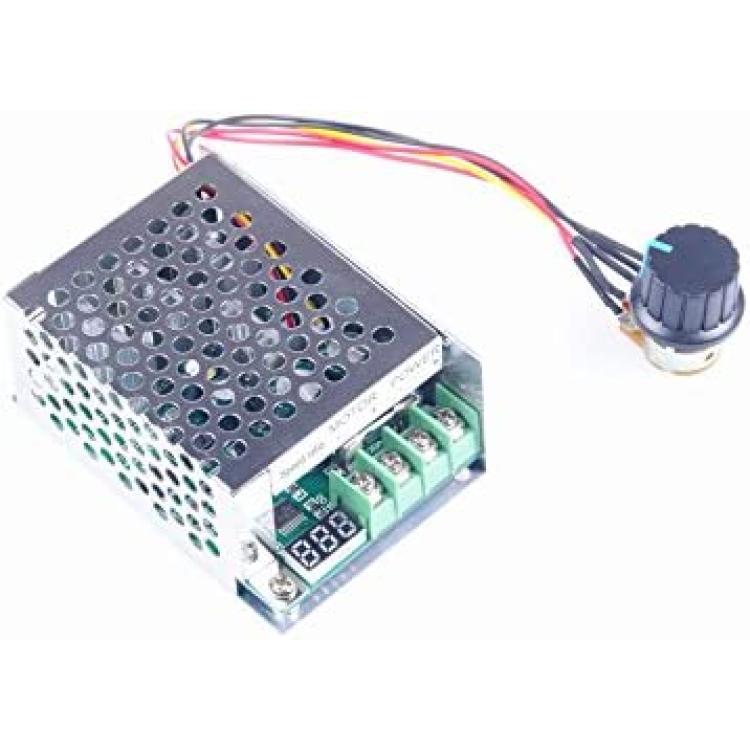

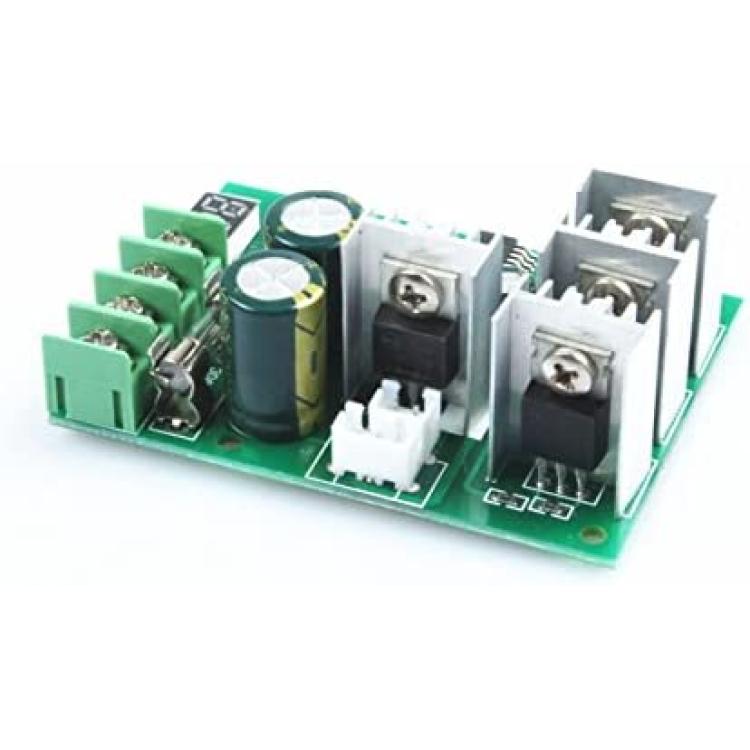

KNACRO PWM DC Motor Speed Controller 20A DC 6V 12V 24V 36V 48V 60V ( DC 6 - 60v) Wire Motor Drive Electronics Switch Module Maximum Power 1200W

Input voltage: DC 6-60V.Output voltage: Load Linear.
Input Current: require large than the motor operating current.Output Current: determine load size.
Continuous current: 20A within.Maximum power: 1200W .Quiescent Current: 0.01ma.
Speed type: modulated current.Speed mode: ON \ OFF linear potentiometer 270 degrees.
Operating frequency: 15KHZ.Speed Percentage: support.
Input voltage: DC6-60V.
Output voltage: Load Linear.
Input Current: require large than the motor operating current.
Output Current: determine load size.
Continuous current: 20A within.
Maximum power: 1200W.
Quiescent Current: 0.01ma.
Speed type: modulated current.
Speed mode: ON \ OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 15KHZ.
Speed Percentage: support.
Size: 85 * 58 * 38mm?L*W*H?.
Product Weight: 120g.
Note: The table below shows the figures show the percentage of the speed, not the actual motor speed.
