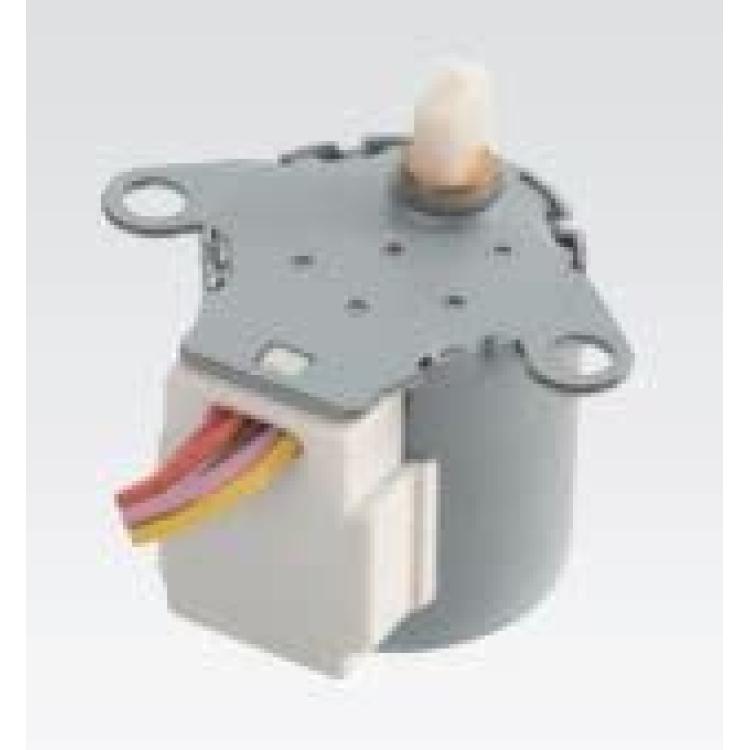

Geared Stepper Motor (20BYJ46-647)

Performance Parameters:
Insulation Class : 105
Noise dB(a): <40
Rated voltaje: 12 VDC
Resistance: 250 Ohms
Step angle: 7.5°
Frecuency of use: 100 Hz
Pull in Torque: > 39.2 mN.m
Self detent Torque: > 39.2 mN.m
No load Pull in Frecuency: >500 Hz
No load Pull out Frecuency: >800 Hz
Drive method: Unipolarity
Excitation Mode: 1-2 Phase
Reduction Ratio: 1/85
Friction Torque: 49~196 mN.m
Lead Exposed Length: 260 mm
Typical Applications:
Air conditioner
Refrigerator
Intelligent sanitary
Refrigerator
Automatic door lock
CCTV monitor system
Electronic Instruments
