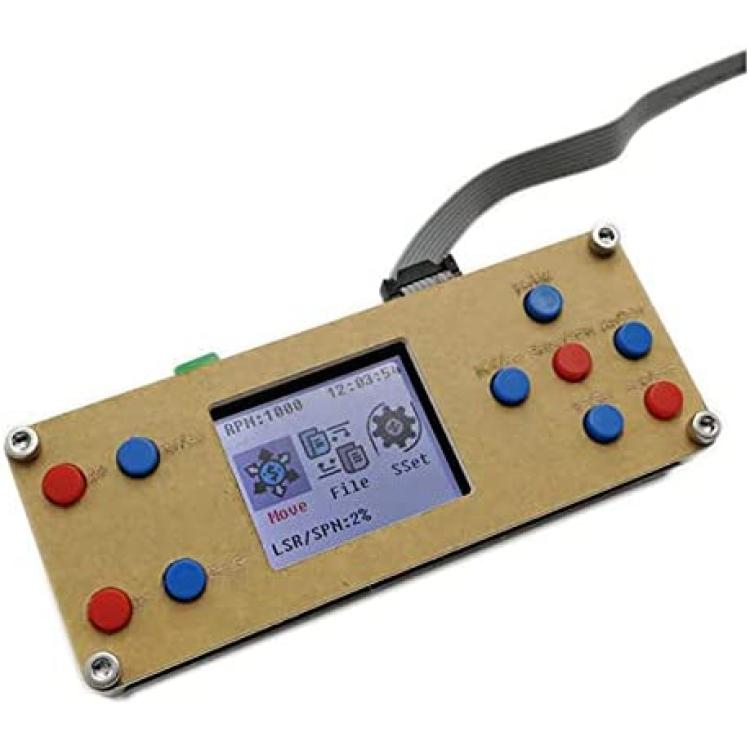

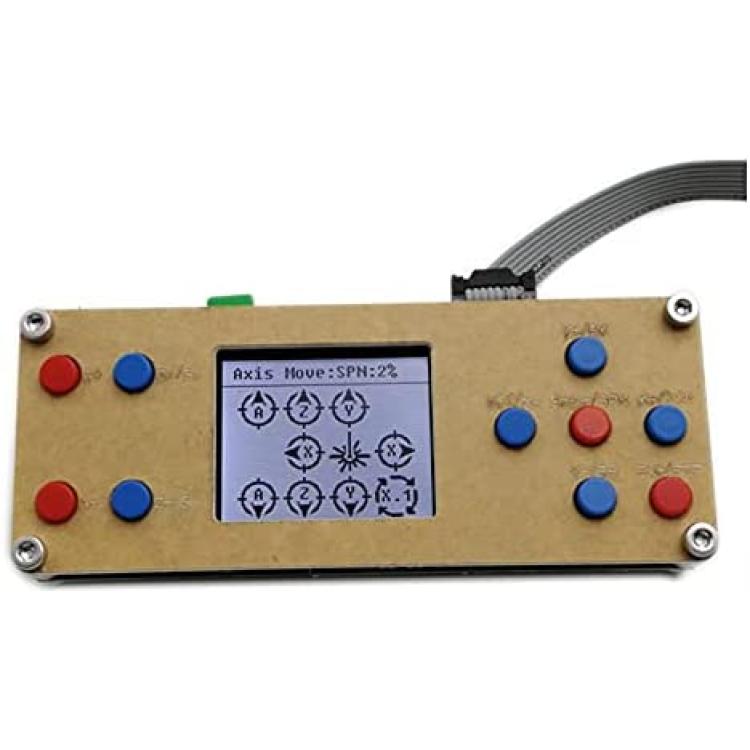

CNC GRBL 4 Axis Offline Controller Board CNC Controller for 3018 Pro Engraving Machine Carving Milling
About this product
*The duty cycle of PWM pulse frequency is adjustable, short press the main page Z+, Z- Laser power/spindle speed
*Short press the homepage EXIT, the maximum spindle speed is 1000/10000 switch (the speed when PWM is set to 100% duty cycle)
*Supporting files: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC
*Press Z+ for 5 seconds: Change the Language to English
*Note: Due to express company restrictions, CR1220 batteries need to be purchased by customers themselves.
Description
The duty cycle of PWM pulse frequency is adjustable, short press the main page Z+, Z- Laser power/spindle speed
Short press the homepage EXIT, the maximum spindle speed is 1000/10000 switch (the speed when PWM is set to 100% duty cycle)
Y+Unlock
Y-return to zero
Z+Chinese and English switching
Can control four-axis XYZA axis
Supporting files: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC
File page turning: Short press X+/ X- on the File page
Built-in battery time adjustment
Free 128MB memory card
Support SD/TF memory card
Press Z+ for 5 seconds: Change the Language to English
Press SMOD: return.
SD card: SD card reader is to write into the root directory G-code files
Note: Due to express company restrictions, CR1220 batteries need to be purchased by customers themselves.
Product Include:
1*1.8 Inch Offline Controller Board
1*TF Card
1*Cable
Note: you cannot use computer software while using offline controller
