Risunmotor Ebike Controller 24V/36V/48V 250W/350W 20A Brushless DC KT Controller Square Wave Controller with Regenerative and Reverse Function
About this product
*24V/36V, 36/48V Universal Voltage, Suitable for electric bicycles, scooter, etc
*Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
*Stable, high efficiency, low current consumption, long life
*Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
*With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic
Description
24V/36V, 36V/48V 250W, 350W DC Brushless eBike Controller 6 MOSFET 20A
Applicatoin: 24V/36V 250W 350Wor 36V/48V 250W 350W Brushless Hall Sensor Motor

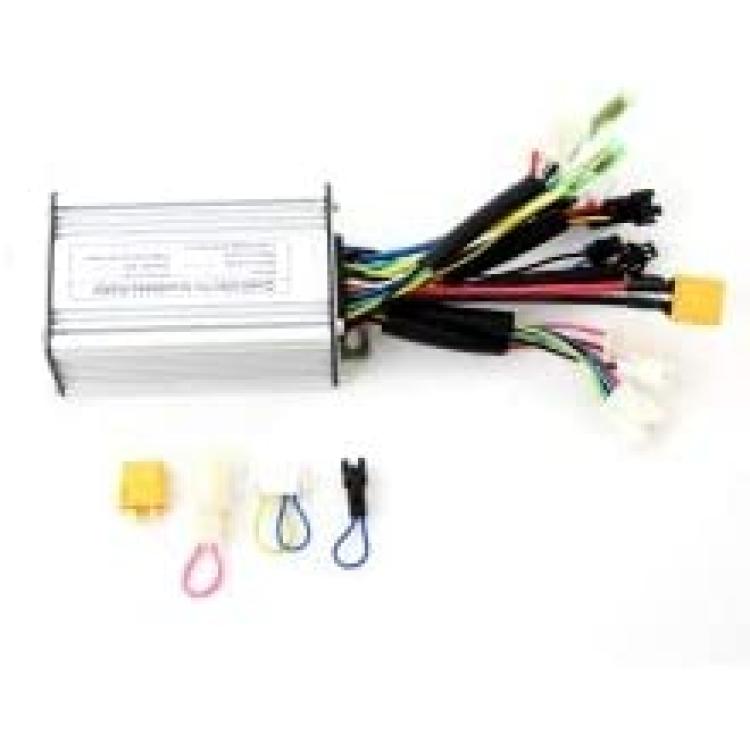

Parts Include: Controller, Connector (XT60 Female), Jumper Connectors(Display, Electric Lock, Cruise Jumper)
Support Regenerative Function (must use our KT LCD Display together to active this function)
Technical Data:
Rated Voltage: DC 24V/36V or 36V/48V
Rated Current: 10A
Low Voltage Protection: DC20/30V±0.5V, DC30/40V±0.5V
Max. Current: 20±1A
Speed set: 1-4.2V

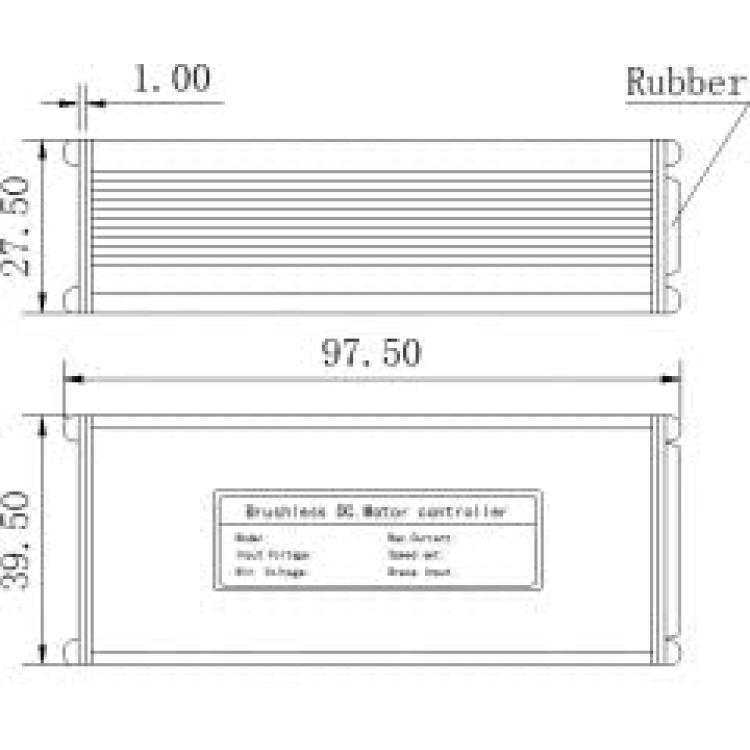

Size: About 106*62*36mm
Color: Silver
6 pcs MOSFET
Applicatoin Power:
Rated: 24V/36V 250W, 350W or 36V/48V 250W, 350W
Advantages:
24V/36V or 36V/48V Universal Voltage
Stable, high efficiency, low current consumption, long life
Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost.
With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
Support Electric Lock Function
Support two modes light control (24V/36V, 36V/48V): Mini 100mA Current Light Control by Display, Normal Current Light Control by switch
Support Cruise Function
Support Reverse Function
