FTVOGUE FTVOGUE Motor Speed Controller Module 12V-40V 10A PWM DC Governor Stepless Variable Speed Control Switch,Module
Availability: Pre-Order, Inquiry Price
About this product
*This is a simple and easy-to-use DC motor speed controller of stable performance.
*Speed controller is made with high quality circuit board which ensures a longer service life.
*Equipped with fuse tube to protect the speed controller from burning out that short circuit causes.

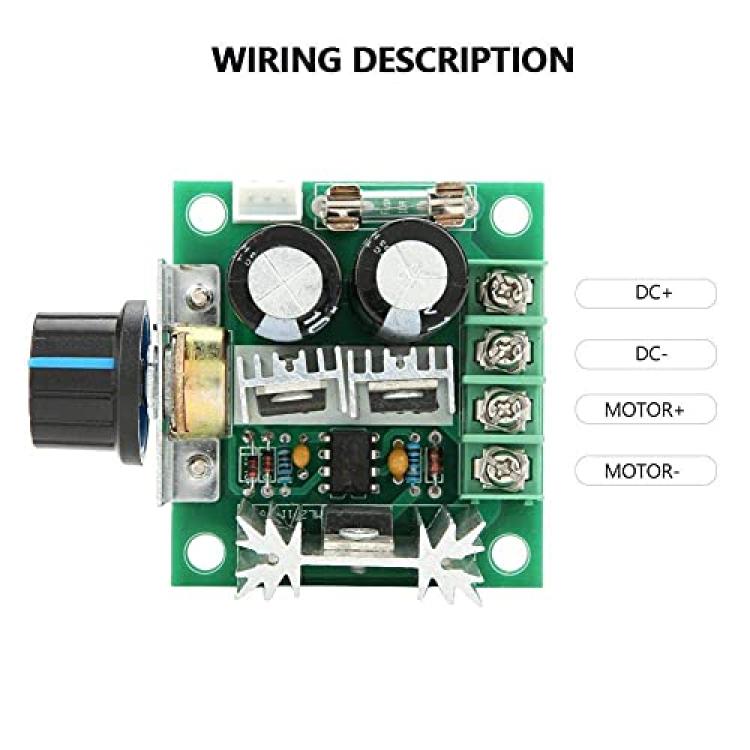

*With reverse connection protection function. Designed with convenient screw terminals for quick wiring.
*We strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.
Description
Specification:
Input Voltage: DC 12V-40V
Control Power: 0.01-400W
Rated Current: 8A
Maximum Current: 10A
Static Current: 0.02A(standby status)
Frequency: 13kHz
Speed Adjustment Range: 10%-100%
Hole Diameter: 3.2mm
Operating Temperature: -20?~125?

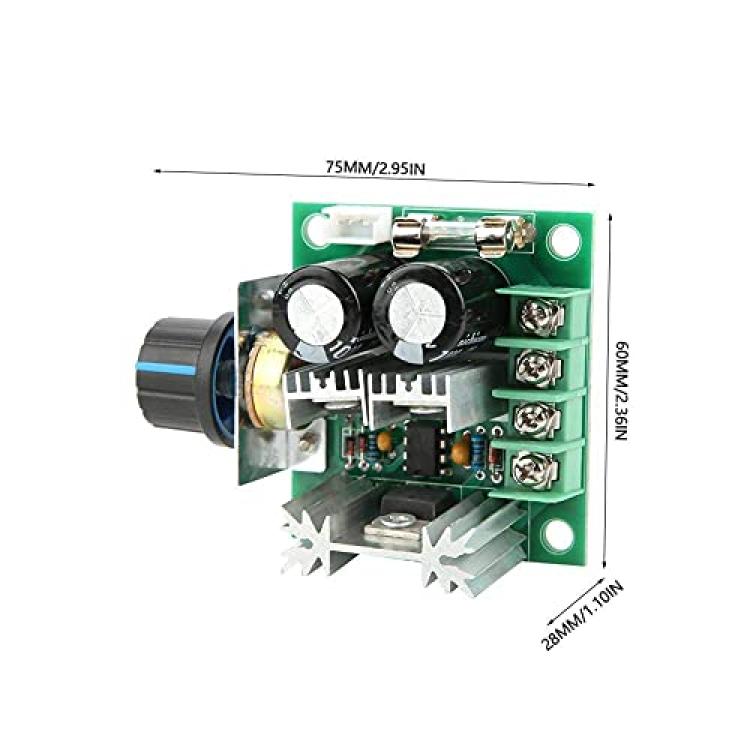

Dimensions: 75*60*28mm / 2.95*2.36*1.10in
Package Weight: Approx. 73g/2.6oz
Package List:
1 * DC Motor Governor
