Encoder Motor, 12V DC Brushed Hall Effect Encoder Motor All Steel Spur Gearmotor 100rpm Fits for Tetrixrobotics Pitsco Robot Parts

Feature:
1. The motor has a built-in high resolution Hall effect encoder for precise motor control.
2. Based on user feedback and specifically designed to withstand the pressure of intense robotic competition, this is our strongest fristtool motor so far.
3. For TorqueNADO, it is suitable for fristtool Maximum DC motor mounts and fits for TETRIX PRIME.
4. The body is made of steel with a plastic encoder housing for long life.
5. Fits for Tetrixrobotics and for Pitsco robot parts.


Specification:
Item Type: Encoder Motor

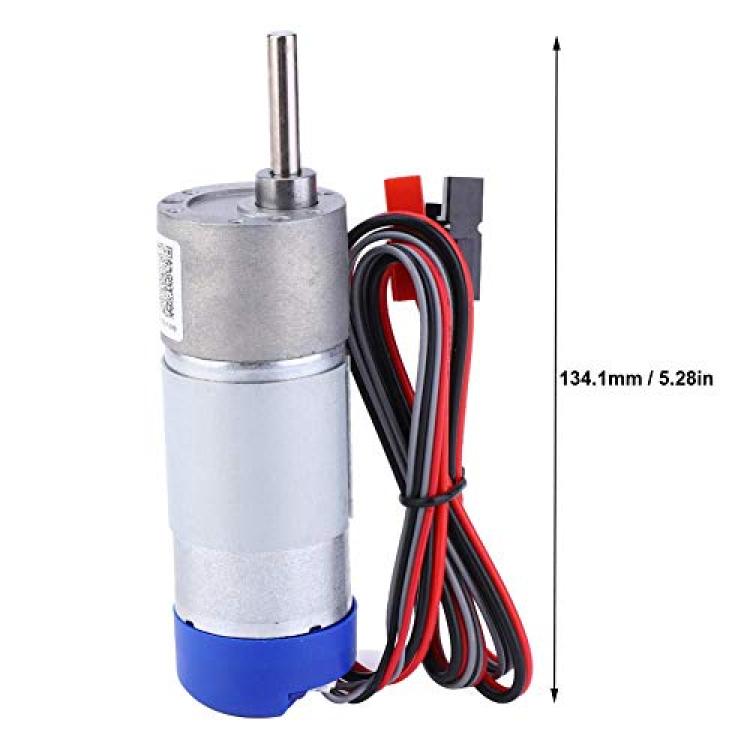

Overall Length: Approx. 134.1mm / 5.28in
Maximum Diameter: Approx. 37mm / 1.5in
Body Material: Steel with plastic encoder housing
Motor Weight: 324 g / 11.4 oz(approx.)
Output Shaft Diameter: 6 mm with 0.5 mm deep flat
Output Shaft Style: D shaft
Output Shaft Length: Approx. 26mm / 1in
Gear Ratio: 60:1
Gear Material: All steel
Gear Box Style: Spur
No-Load Speed: 100 rpm
Voltage (nominal): 12V DC
Stall Torsion: 700 oz-in.
Motor Type: DC brushed
Electrical Connection: Powerpoles for motor 4-pin encoder connector
Encoder Voltage: 3.3/5 volts DC
Encoder Type: Hall effect
Countable Events per Revolution: 1440


Package List:
1 x Motor
