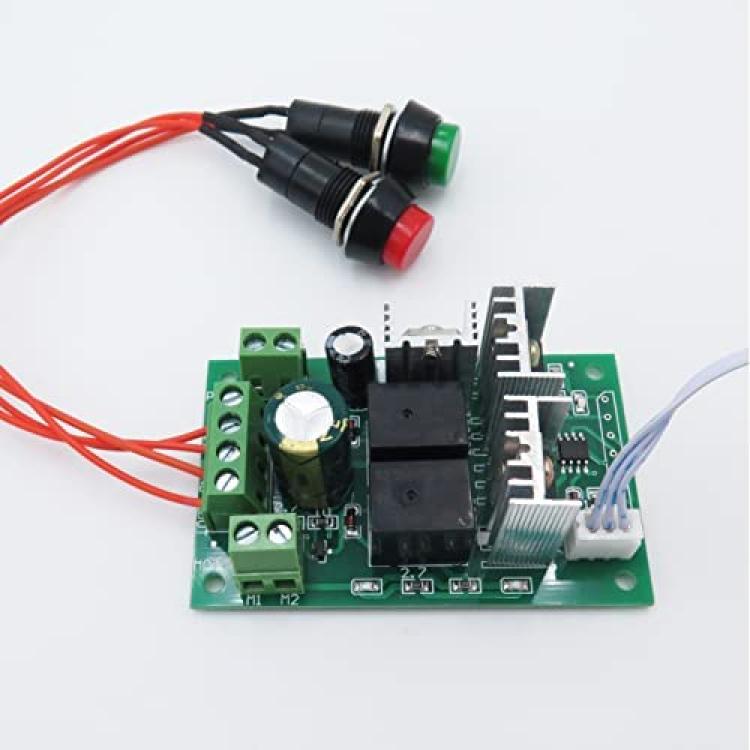

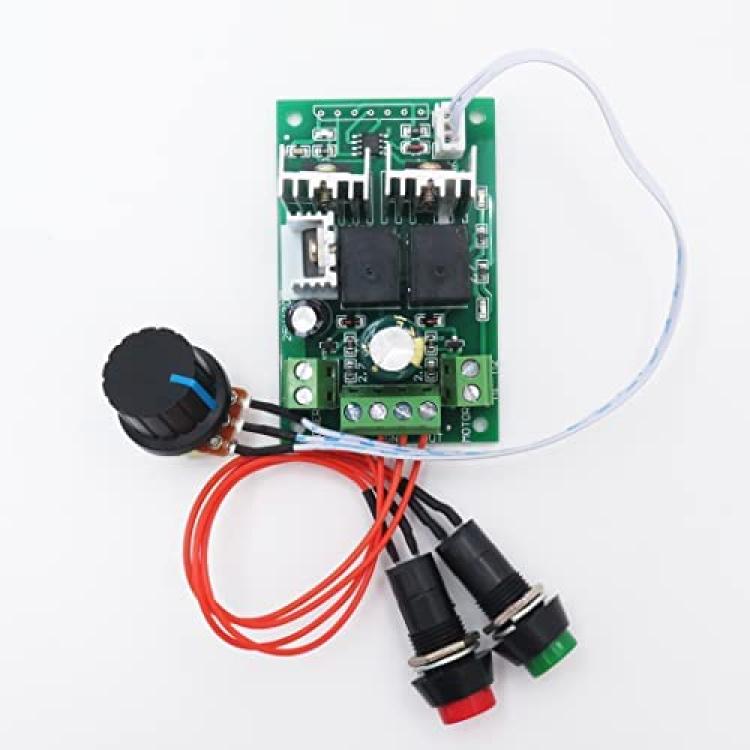

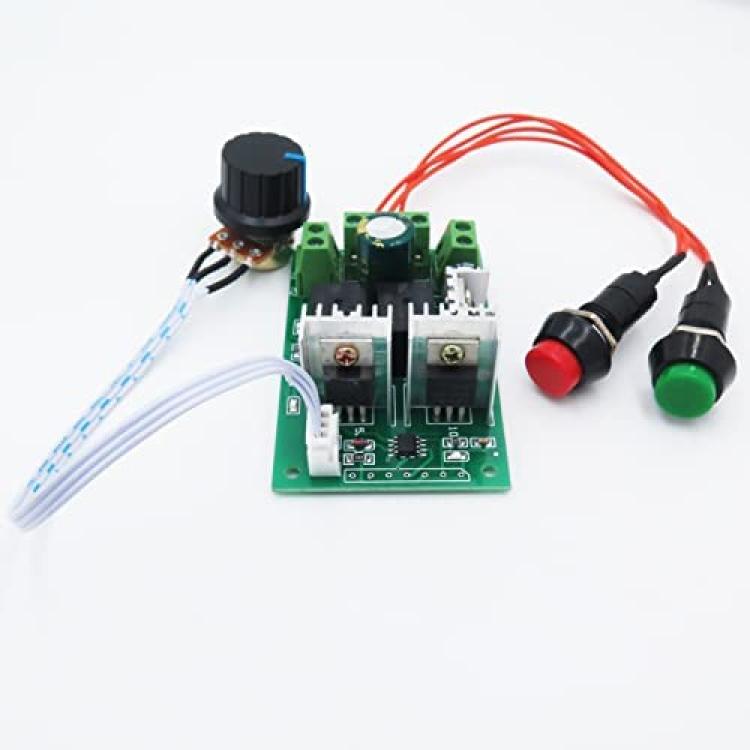

PWM DC Motor Speed Controller 6V 12V 24V 10A Switch Control
About this product
*Input Voltage: DC5-30V (equal to motor rating)
*Maximum Current: 15A
*Continuous Current: 10A
*Support motor: ON OFF linear potentiometer 270 degrees
*Forward Reverse: Support
Description
Input Voltage: DC5-30V (equal to motor rating)
Output Voltage: load Linear
Maximum Current: 15A
Continuous Current: 10A
Variable speed type: Variable
Speed mode: Potentiometer (with switch)
Support motor: ON OFF linear potentiometer 270 degrees
Forward Reverse: Support
Speed range: 0 - 100%
Control frequency: 15KHZ
Wiring type: Terminal knob
Specification: 100K (with switch)
Net weight: 2.8 oz
Motherboard size: 2.9in*1.8in*1.1in?L*W*H?
Package Included:1pcs 10A PWM Motor Speed Controller
Note: the digital display is the percentage of motor full speed 0-100, which is not the actual speed of the motor The input voltage must be positive or negative The input voltage is DC 5-30v, which shall be equal to the rated voltage of the motor
