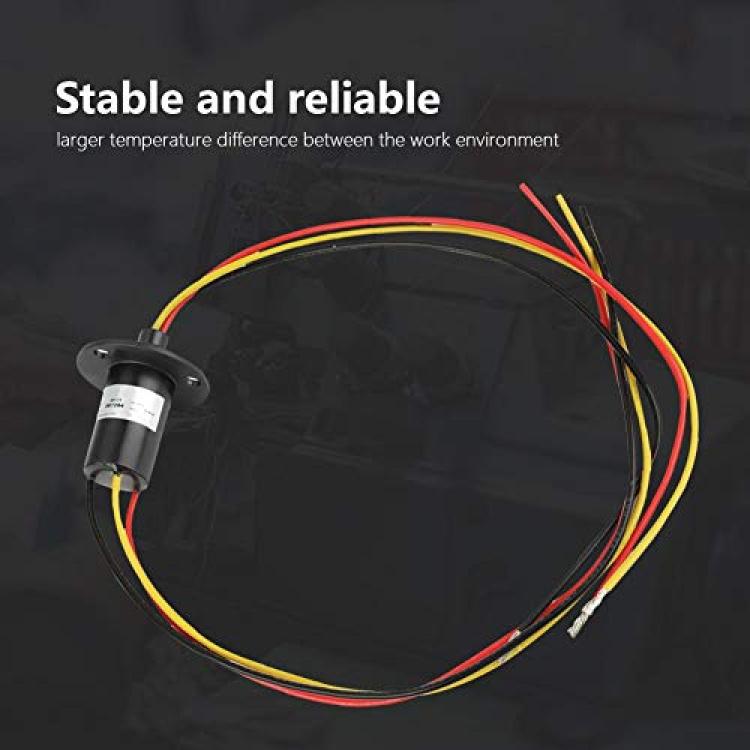

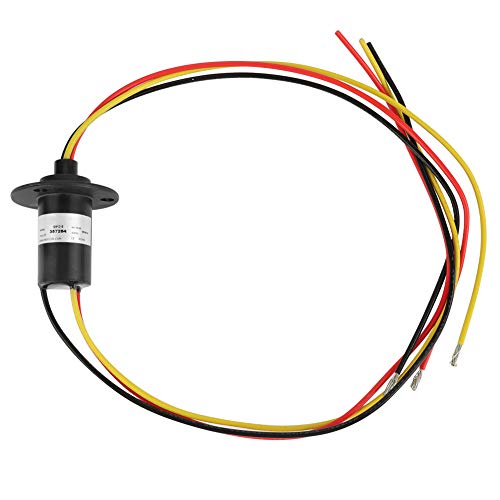

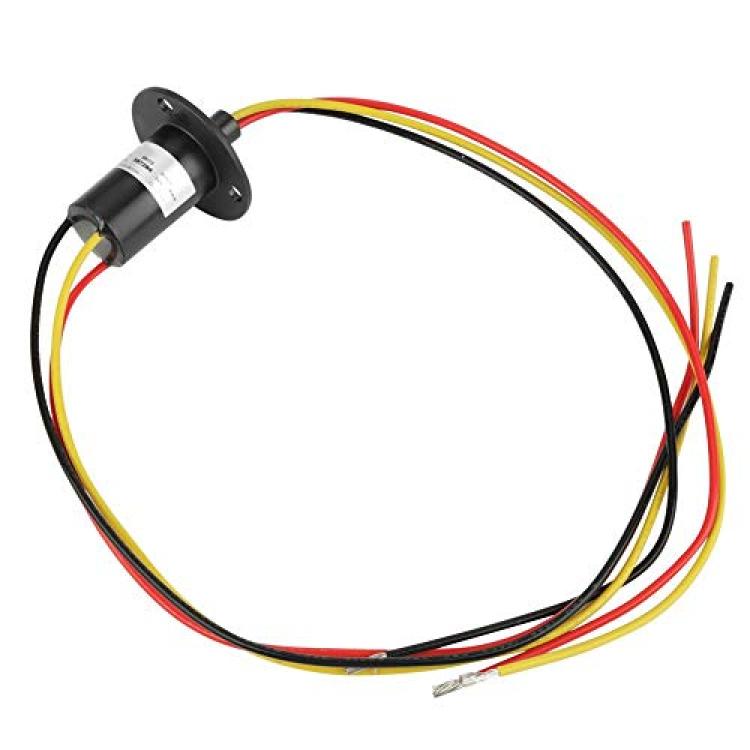

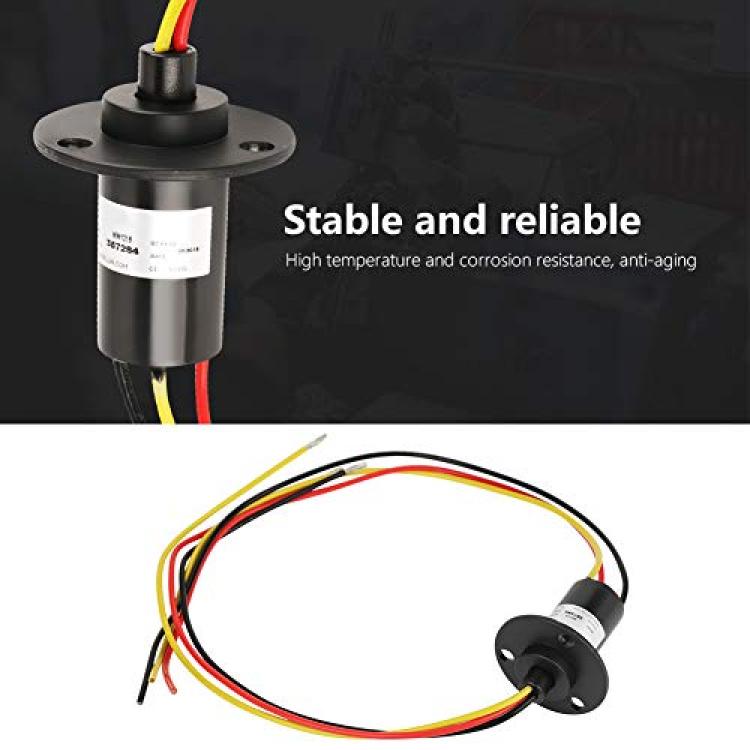

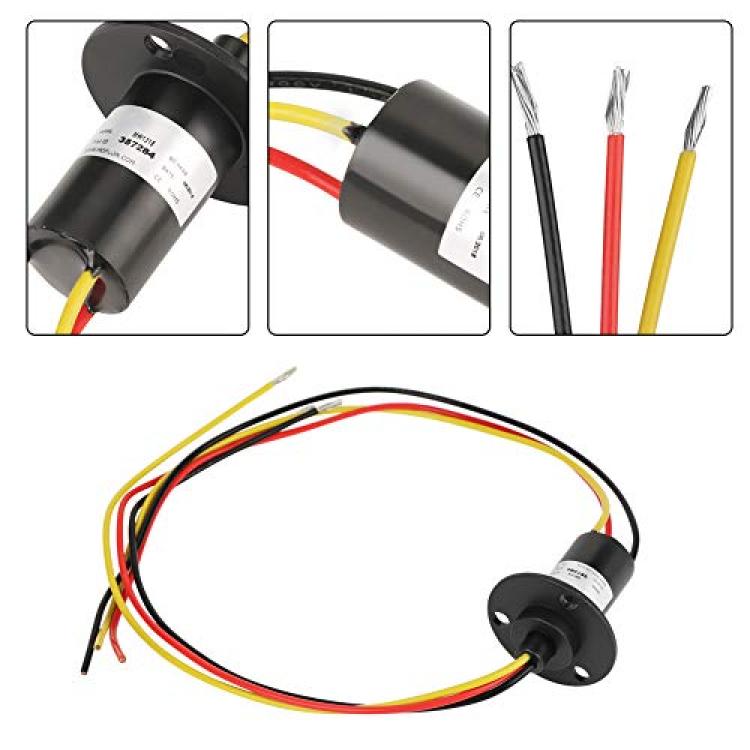

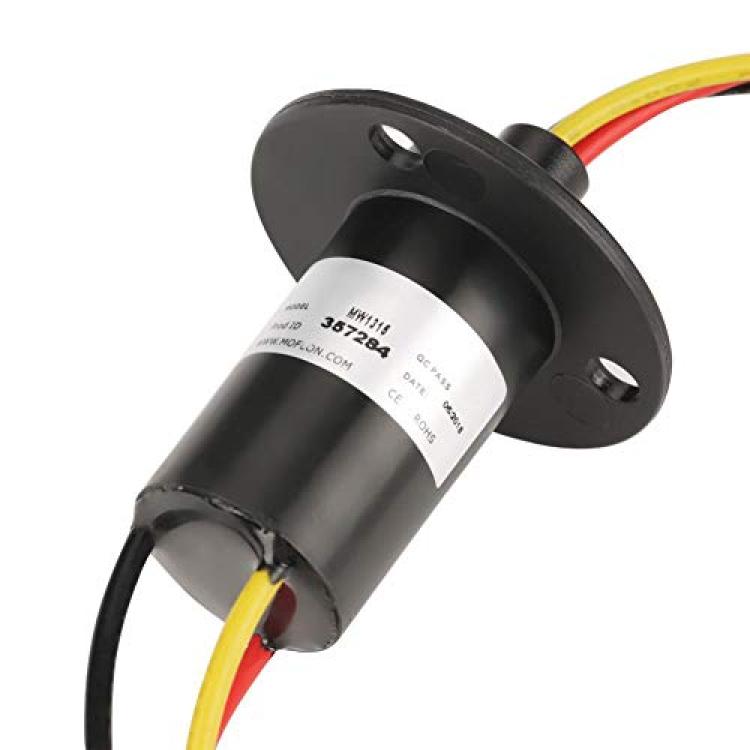

FTVOGUE Mini 3 Wires Slip Ring Plastic Electron Component 250RPM 15A 0-600V for Wind Turbine Power Generator,Dynamo
Availability: Pre-Order, Inquiry Price
About this product
*Function: Generator slip ring has the function of multi-channel signal transmission, anti-jamming.
*Excellent Performance: Generator slip ring has the performance of high temperature and corrosion resistance, anti-aging, and the anti-vibration and anti-dust design can meet your basic working needs.
*Applied Environment: Mini slip ring has the feature of low temperature resistance, wide operating temperature range, so it can be adapted to the larger temperature difference between the work environment.
*High Quality Engineering Plastics: Wind generator slip ring is made of high quality engineering plastics, which is solid, wear-resistant and pressure resistant.
*Scope of Application: Generator slip ring is applicable to most equipment, including wind, controller, robot, construction machinery, medical equipment, military radar and so on.
Description
Features:
Multi-channel signal transmission, anti-jamming. Made of high quality engineering plastics, solid, wear-resistant and pressure resistant. High temperature and corrosion resistance, anti-aging. Anti-vibration and anti-dust design with good performance can meet your basic working needs. Low temperature resistance, wide operating temperature range, can be adapted to the larger temperature difference between the work environment.
Specifications:
Material: Engineering plastics
Voltage: 0-600V
Insulation Resistance: 1000M? at 500VDC
Rated Current: 15A
Insulation strength: 500VAC at 50Hz, 60s
Electrical Noise: 20M?

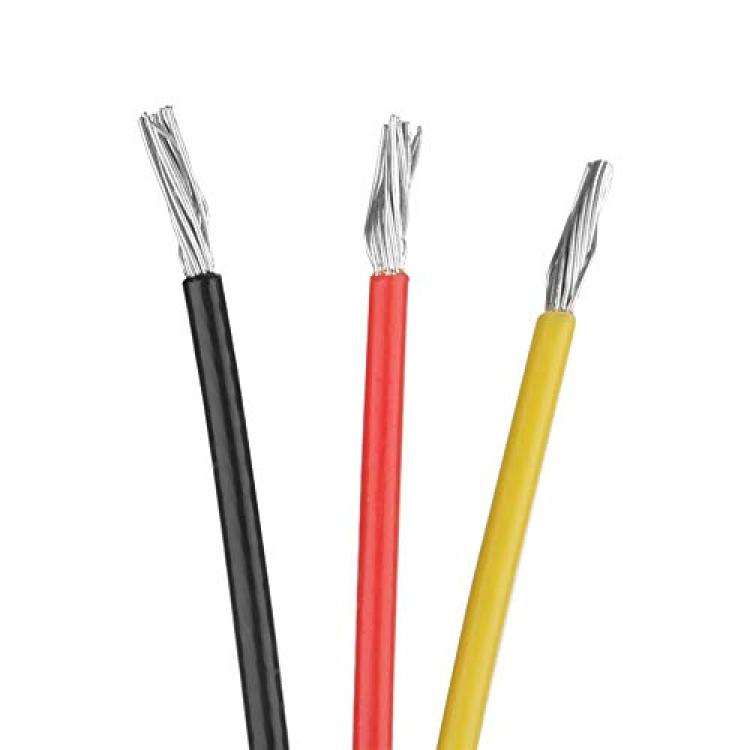

Pathway: 3 Wires
Working speed: 150RPM
Operating temperature: -30~80
Operating Humidity: 0-85% RH
Contact materials: precious metal
Lead length: 300mm
Torsion: 8 g.m
Protection class: IP51

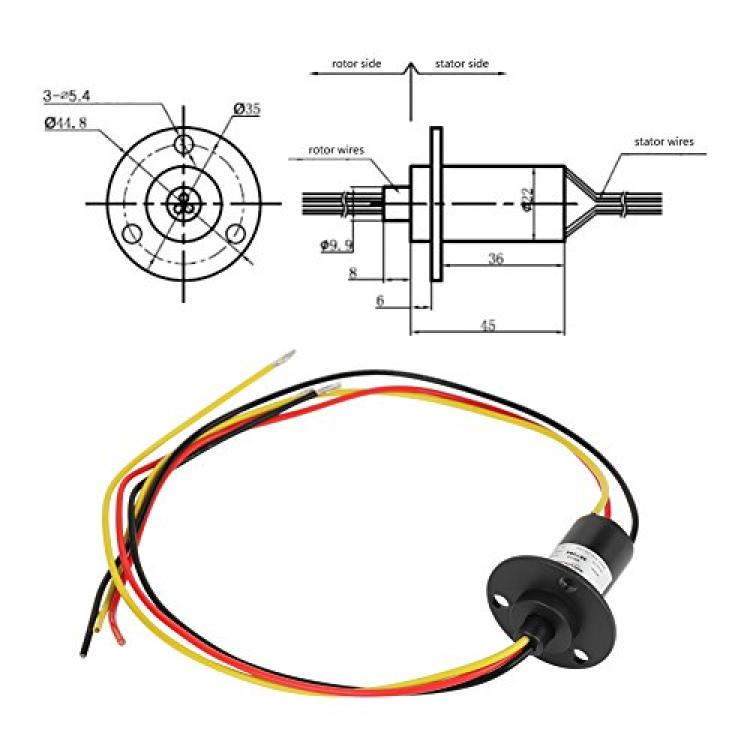

Size: Approx. 70 x 5 x 5cm / 27.56 x 1.97 x 1.97inch
Weight: Approx. 84g
Package Included:
1 x Slip Ring
