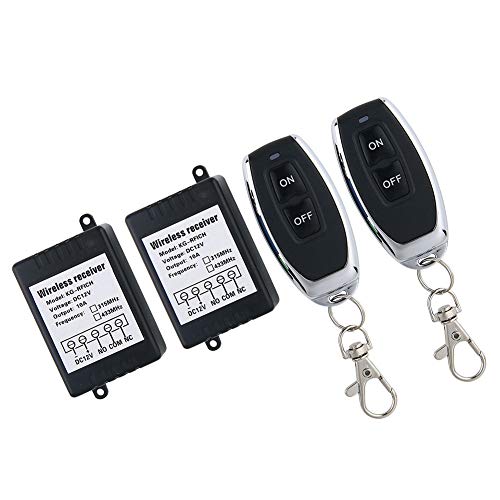

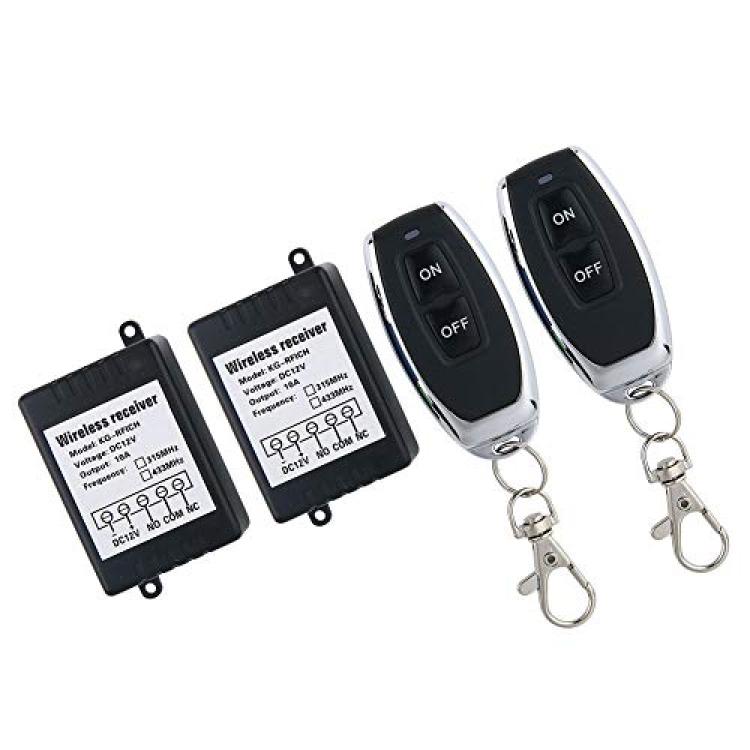

DC 12V 1CH 433Mhz RF Relay Smart Wireless Remote Control Light Switch, 2 Transmitters with 2 Relay Receiver

Function

1.DC12V input
2.Working model:Jog-lock(Momentary)/ Self-locking/ Interlock
3.Timer Function:10s/30s/90s/120s

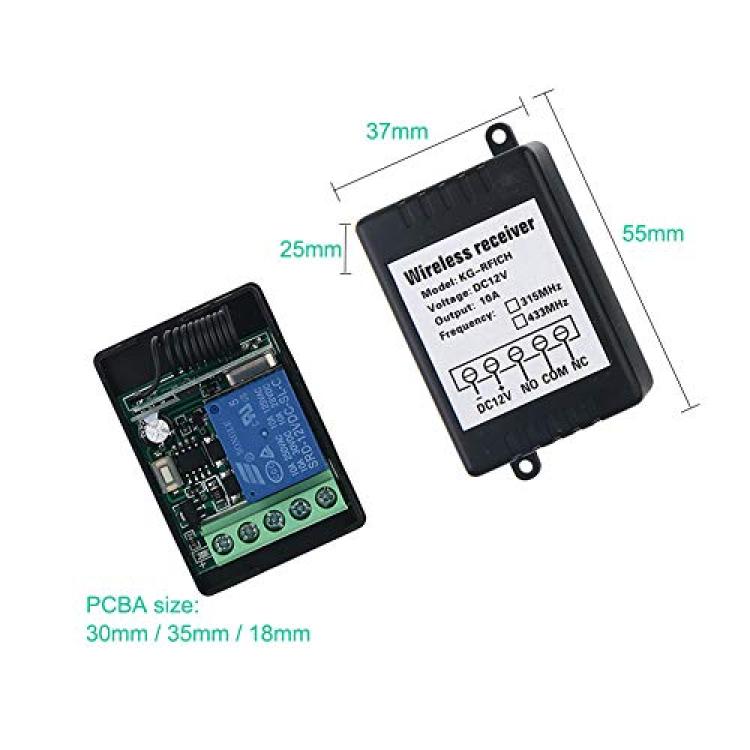

4.PCBA Size:30mm*35mm*18mm
5.Cover Size:55mm*37mm*25mm
6.Can be paired with 35pcs remote control at the same time

How to set working mode

1.How to clean code:

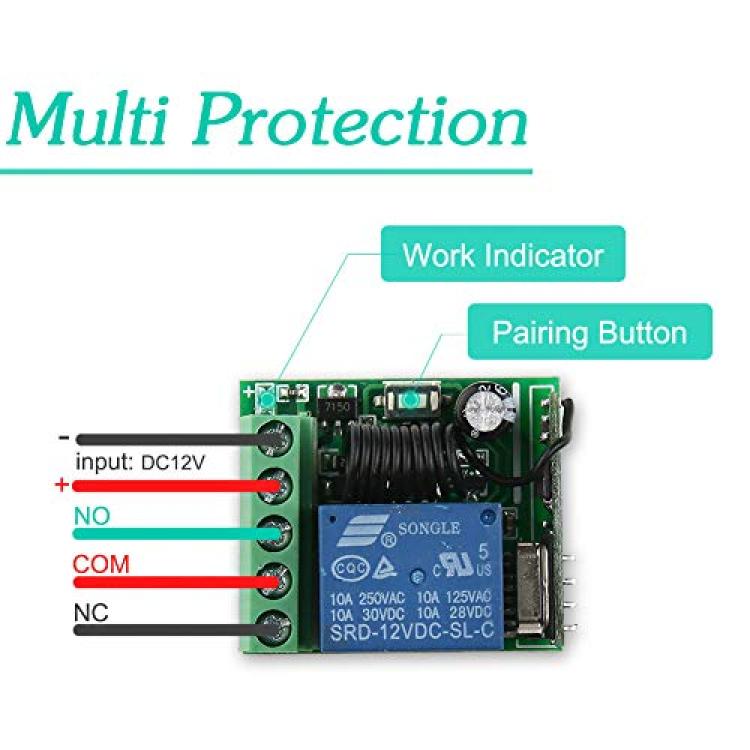

* Press the Paired Button on the board 8 times,light flash,cleaning code successfully.
2.How to set the remote working mode: Power on the switch, then...
* Jog-lock(Momentary):
Press "paired button" once ,red light on,then press remote control button,red LED blinks, then off, jog mode completed
* Self-locking:
Press "paired button" twice fast,red light on, then press remote control button,red LED blinks,then off,Self-locking mode completed
* Interlock:(you need a remote with 2 buttons)
Press "paired button" 3 times fast,red light on, then press remote control button,red LED blinks,then off,Self-locking mode completed
3.How to set timer mode:
10s delay:press the "paired button" 4 times fast,Then press remote control button
30s delay:press the "paired button" 5 times fast,Then press remote control button
90s delay:press the "paired button" 6 times fast,Then press remote control button
120s delay:press the "paired button" 7 times fast,Then press remote control button
