DC Motor Controller 6-60V 30A Motor Speed Controller with Digital Display for Setting The Slow Start and Stop Time of The DC Motor
Availability: Pre-Order, Inquiry Price
About this product
*➤【High Quality Material】 This PWM motor speed controller is made of high quality printed circuit material, which has good durability and wear resistance to ensure long-term service.

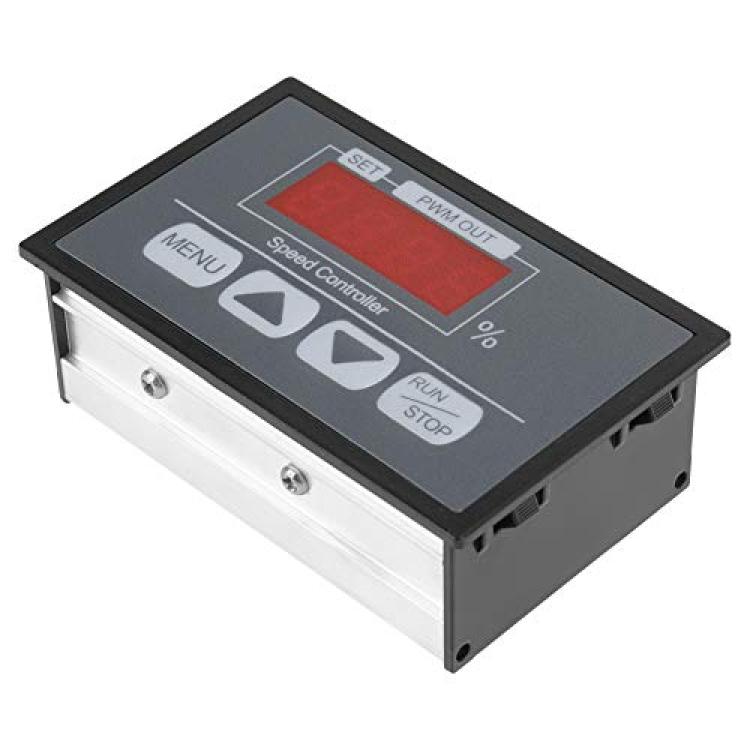

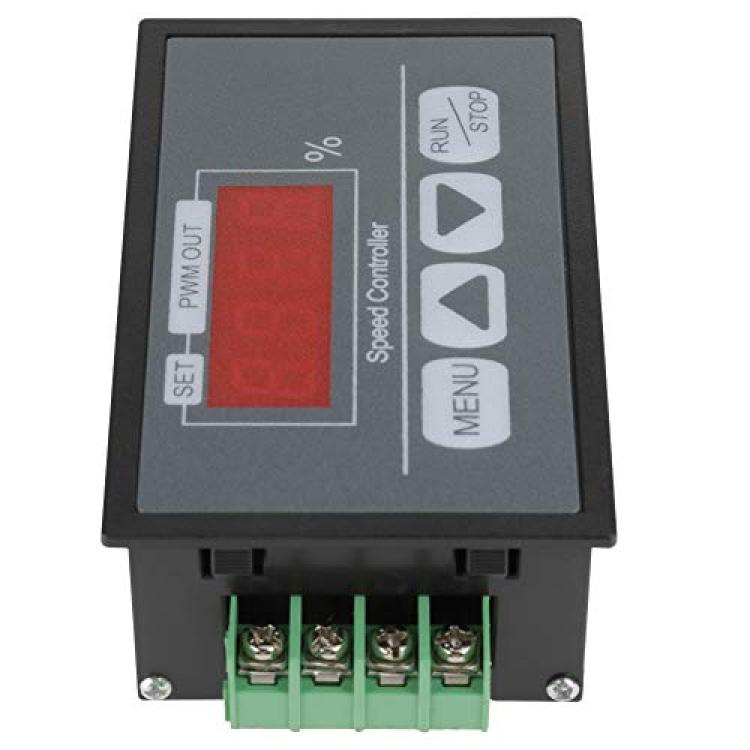

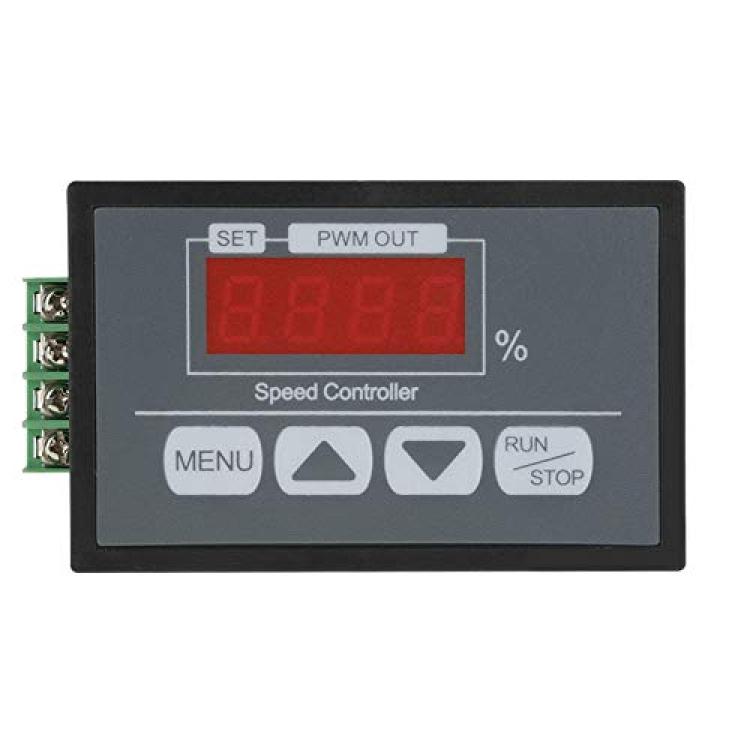

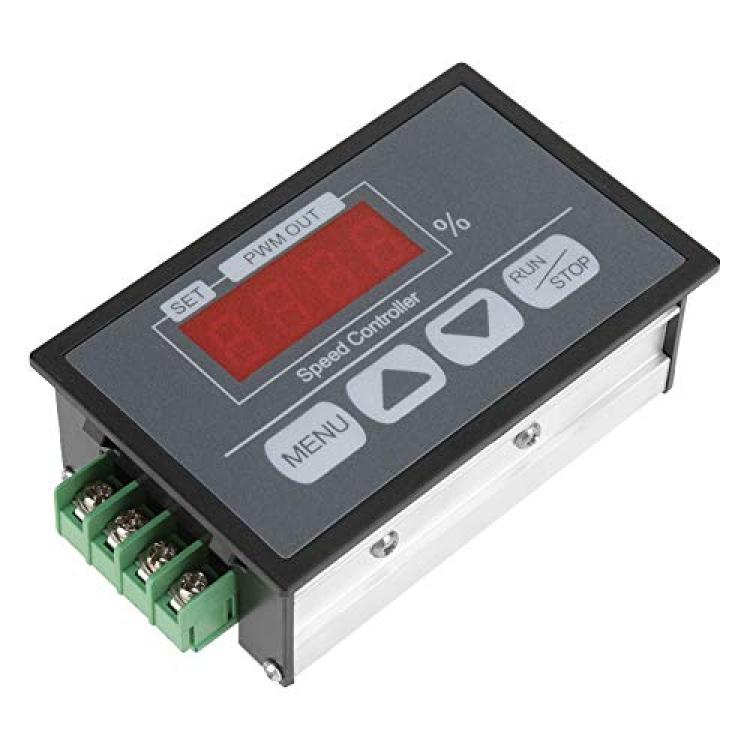

*➤【LED Display Design】 The DC motor controller is equipped with a digital display that shows the actual speed percentage at maximum speed, so the data is easy to read and operate.
*➤【Function】 This product is mainly used to control the motor speed, you can set the start time and slow stop of the DC motor, easy to operate.
*➤【Wide Input Voltage Range】 This DC PWM motor speed controller supports a wide input voltage of 6VDC to 60VDC. At the same time the output current is 0 A to 30 A, which guarantees a wide use. You can use this adjustable motor controller on different occasions for different purposes.
*➤【Estable Stable Performance】 This simple and easy-to-use motor controller has stable performance and a momentary start and stop switch and a speed control potentiometer for easy operation. You can adjust it through the potentiometer to obtain a better and more stable performance.
Description
Specifications:
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control mode: jog + -
Speed regulation range: 0-100%
Control frequency: 21KHZ

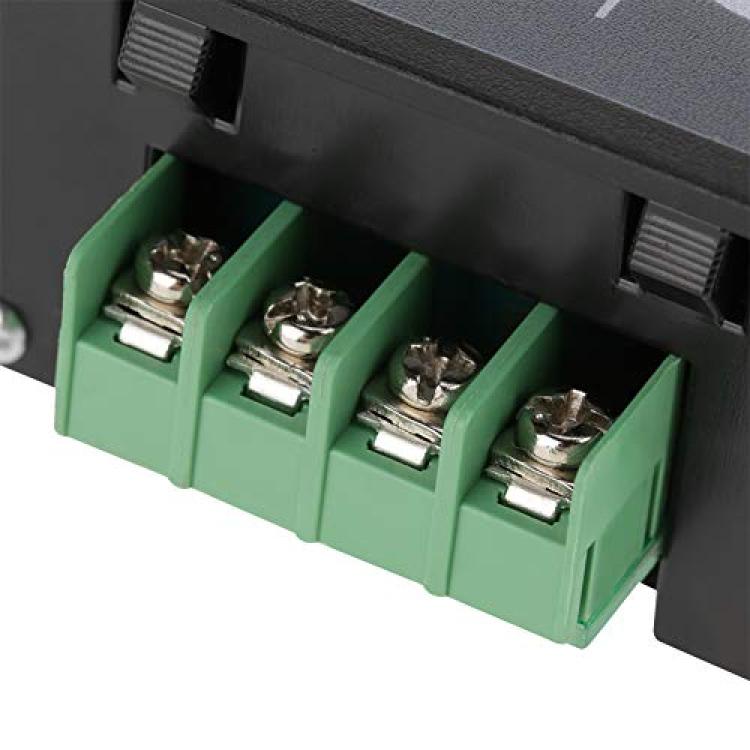

Type of connection: Barrier terminal
Support motor: brush motor
Significant speed:Â 0-100%
Size: 10 x 6cm / 3.94 x 2.36in
Weight: 100g
Detail:
1.Slow start time setting Function 1: 000 - 100 Slow start to 100% Speed time adjustable between 0-10 seconds Default is 1 second.
2.Slow stop time setting Function 2: 000 - 100 Slow stop time is adjustable between 0-10 seconds Default is 1 second.
3. Speed lower limit setting function 3: 000 - 080 The minimum speed is between 0-80% adjustable and less than the maximum speed setting The default is 0.
4. Speed upper limit setting function 4: 000 - 100 The maximum speed is adjustable between 0-100% and greater than the minimum speed setting The default is 100%.
 5.Acceleration and deceleration value setting Function 5: 001 002 005 010 015 020 025 Each time you press the plus/minus key, the speed changes correspondingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Package included:
1 x Motor Controller
Note:
1.The input voltage must differentiate "+" ,"-", can't input 220V voltage
2.The input voltage should be equal to the rated voltage of the motor within 6-60V
