Universal PWM DC 6V-90V 15A Wide Voltage Stepless Brushed Motor Speed Controller High Precision Variable PLC Voltage & Speed Regulator With Output Voltage LED Display
Availability: Pre-Order, Inquiry Price
About this product
*This PWM DC motor speed controller is suitable for DC 6-90V motor
*Input protection: when input voltage is inverting, it does not work, it is good to protect the speed control board and power
*Input DC 6-90v, the governor can only be used for brush motor
*This PWM DC motor speed controller comes with 20A ceramic fuse
*The maximum current can reach 15A ,suggest within10A for use.
Description
Note: This variable voltage and speed controller is for brushed dc motor, not suitable for brushless motor.
It's the combination of high performance and exquisite workmanship.Â
Wide voltage Range: from DC 6V to 90V

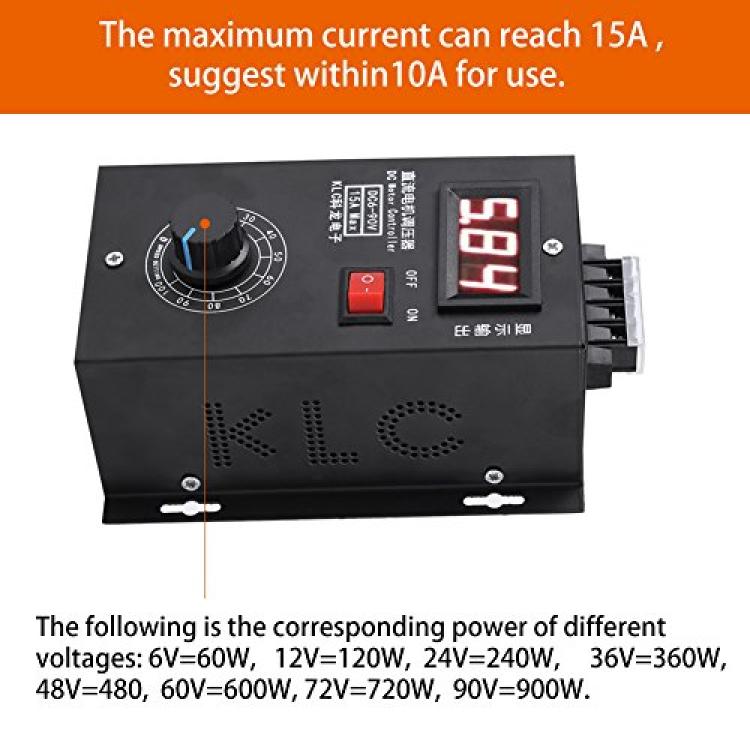

The maximum current can reach 15A ,suggest within10A for use.The following is the corresponding power of different voltages: 6V=60W,  12V=120W, 24V=240W,    36V=360W, 48V=480, 60V=600W, 72V=720W, 90V=900W.

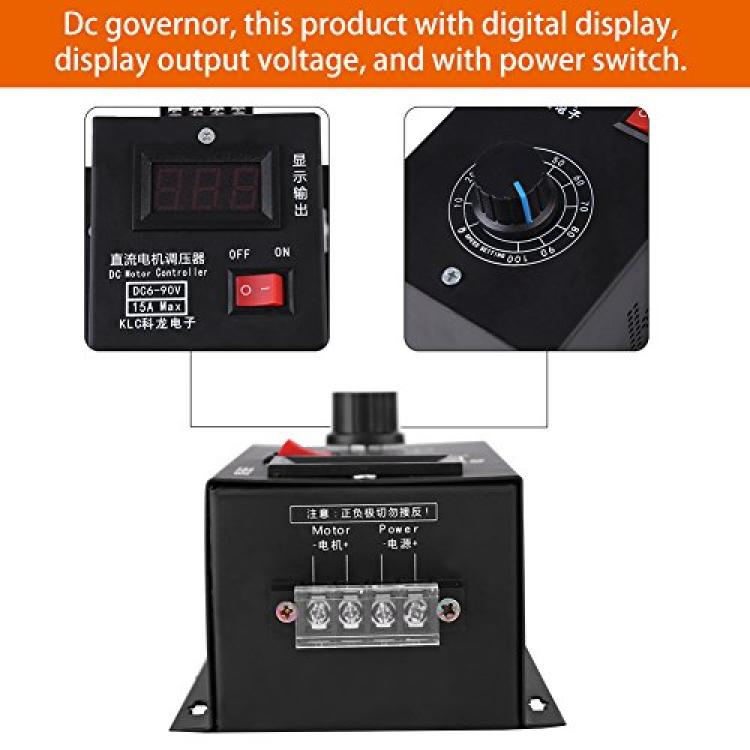

Gains LED display for output voltage and power on/off button, it's very easy and convenient to use;
Well designed and strong enclosure can provide very good protection for the controller from rust or fall.Â
Specifications:
Suitable: DC6-90v (wide voltage)
Rated current: 8A
Maximum current: 15A
Power range: 0.01-1000W speed range: 0-100%
Frequency: 16 KHZ
Weight: 470g
Package Included:
1 x DC motor speed controller
