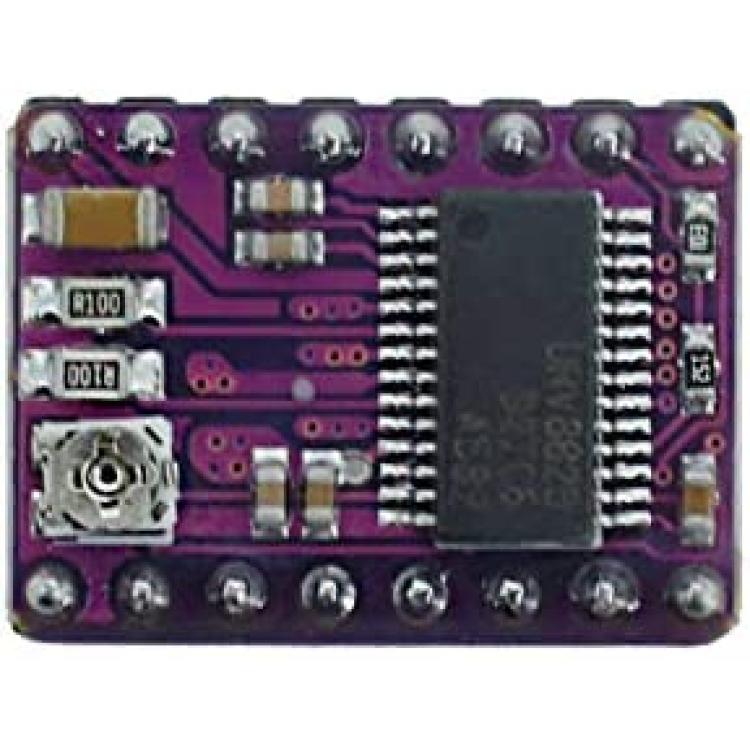

DEVMO 5pcs DRV8825 Stepper Motor Driver Module with Mini Heat Sink for 3D Printer Accessories Compatible with RepRap 4 RAMPS 1.4 StepStick

The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 ¨C 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features:
* Simple step and direction control interface
* Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
* Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor rated voltage to achieve higher step rates
* 45 V maximum supply voltage
* Built-in regulator (no external logic voltage supply needed)
* Can interface directly with 3.3 V and 5 V systems
* Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
* Short-to-ground and shorted-load protection
* 4-layer, 2 oz copper PCB for improved heat dissipation

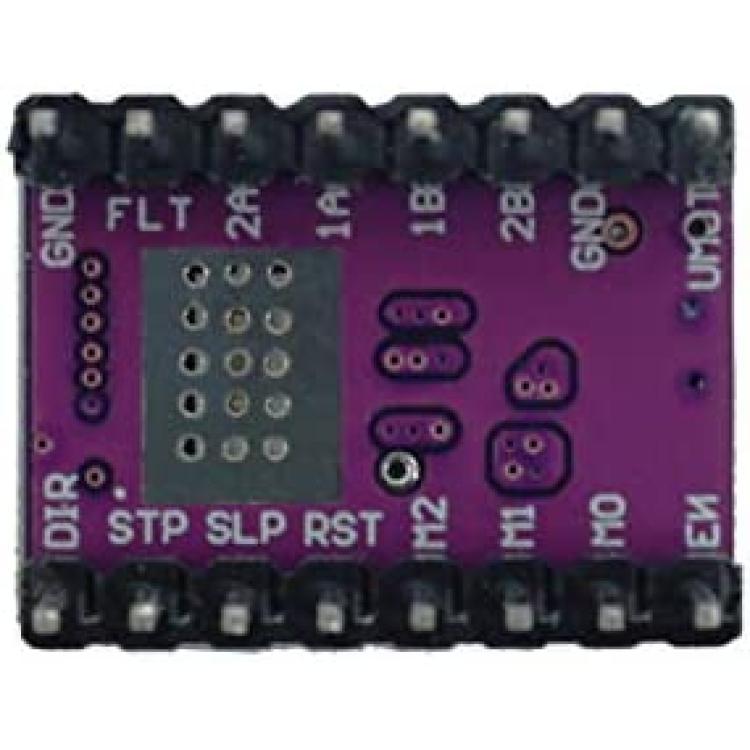

* Exposed solderable ground pad below the driver IC on the bottom of the PCB
*Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects

Package included:

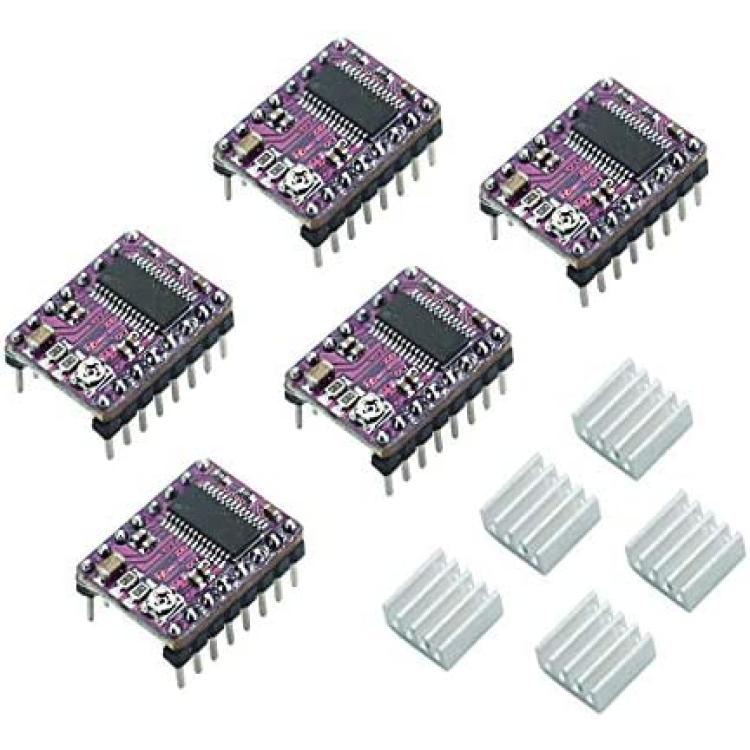

5 X DRV8825 Stepper Motor Driver Board
5 X Heat Sink
