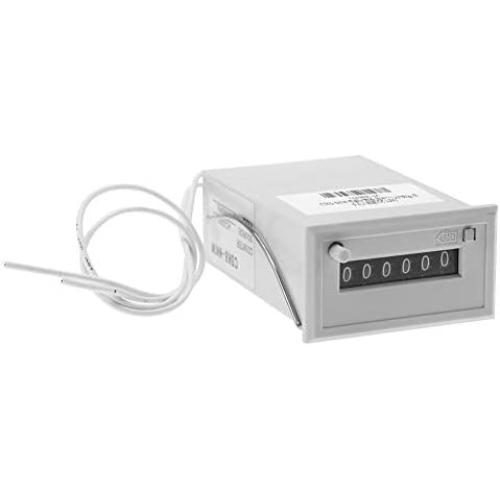

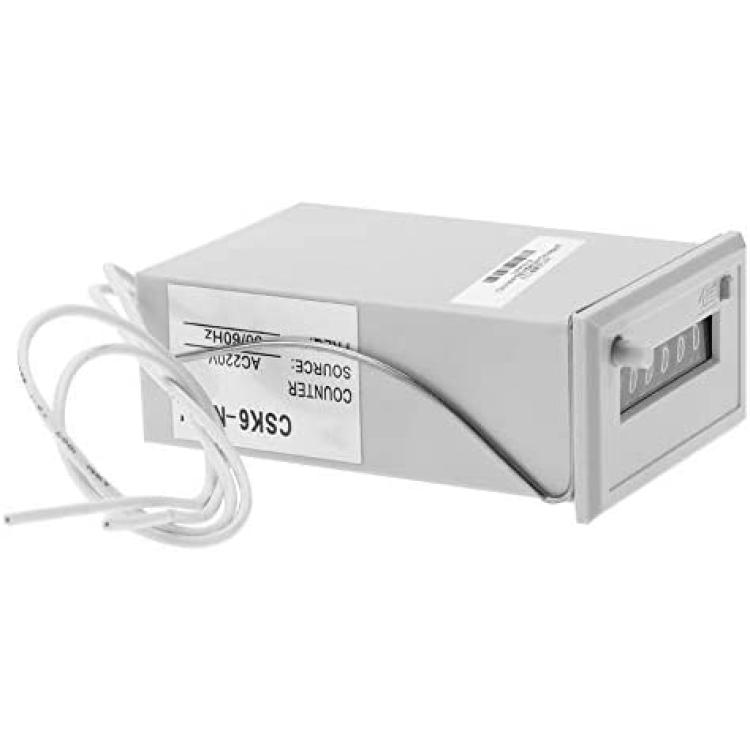

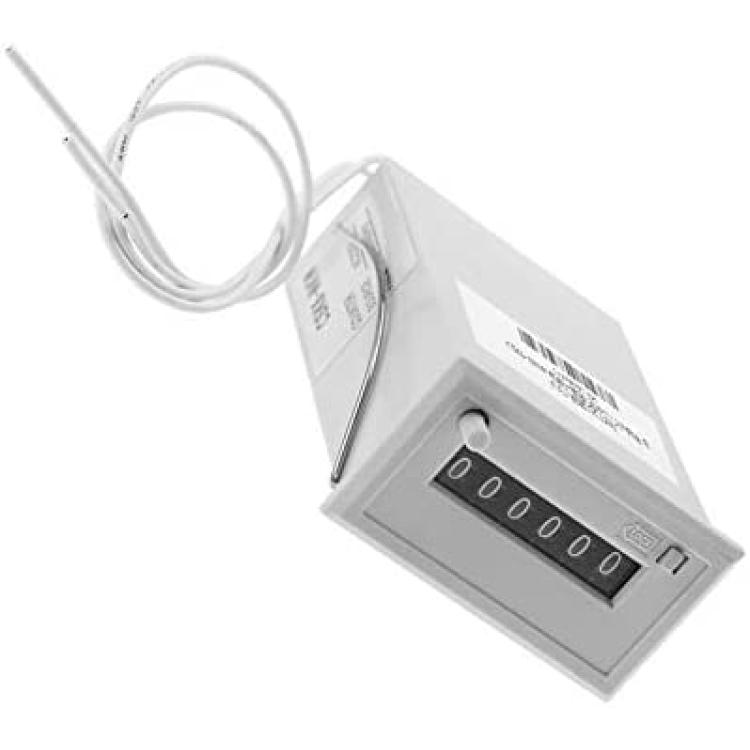

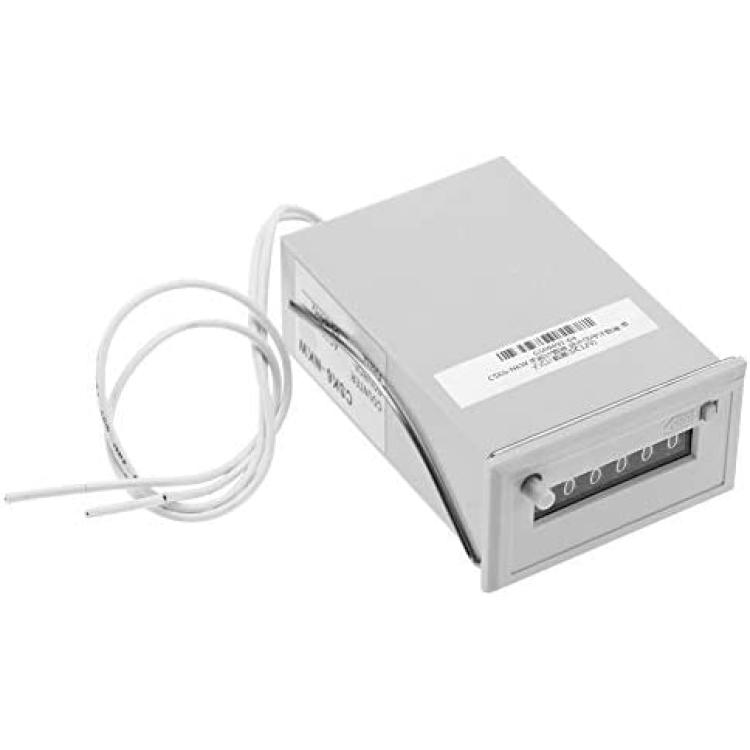

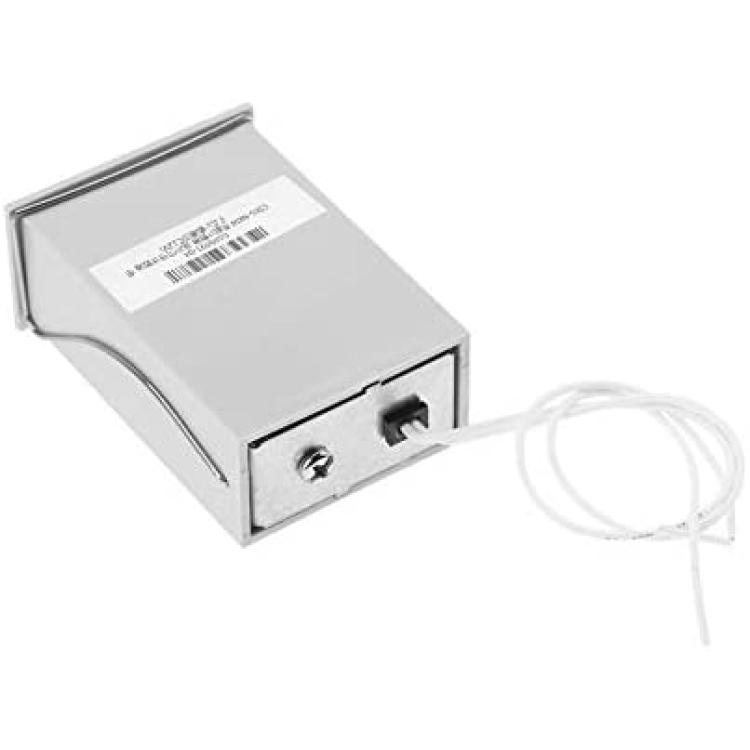

Electromagnetic Counter 6 Digit Pulse Counter CSK6-NKW AC220V / AC110V / DC24V / DC 12V(DC 12V)
About this product
*Six digit electromagnetic counters which is used to record the cumulative number of electric pulse signals.
*High speed counter measurement, accurate count, small indication error.
*Combined with secondary instrument, it can be digital display instrument.
*It will generate attractive power in the electromagnet after the electrical signal input to the counter.
*Widely used in petroleum, chemical, textile, machinery, mining, defense, agriculture, food, printing and other industries of all kinds of electric pulse count.
Description
Overview:
This product is used in recording cumulative total of the number of times of electronic pulse signal. Widely used in various electric pulse counts in oil, chemical, textile, machinery, mining, national defense, agriculture, food, printing and other industries.
Specification:
Model: CSK6-NKW
Material: Plastic
Weight: 117g/4.1oz
Count Range: 0~999999
Voltage & Power: #01 AC 220V, AC 2.5VA; #02 AC 110V, AC 2.5VA; #03 DC 24V, DC 1.5W; #04 DC 12V, DC 1.5W (Optional)
Count Speed: DC 20 times per second, AC 10 times per second
Indication Error: < 1x 0.00001
Environment Temperature: - 20 ~ 50
Relative Temperature: 85%
Installation Method: panel
Reset Mode: Pressing type (with lock)
Package List:
1 x Electromagnetic Counter
