DC Speed Regulator, 9 to 60V 20A 1200W 25KHz PWM Motor Speed Controller, Used for DC Motors Within 20A

Description:
This is a simple and easy to use DC motor speed controller with mini size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 9V to 60V and output voltage is 0 to 100% of the input voltage. This speed controller is quite convenient to use.

Specifications:
Color: Silver
Material: Metal
Input Voltage: DC 9 to 60V
Output Current: 0 to 20A
Power: 1200W
PWM Frequency: 25 KHz
Adjustable Speed Range: 0 to 100%

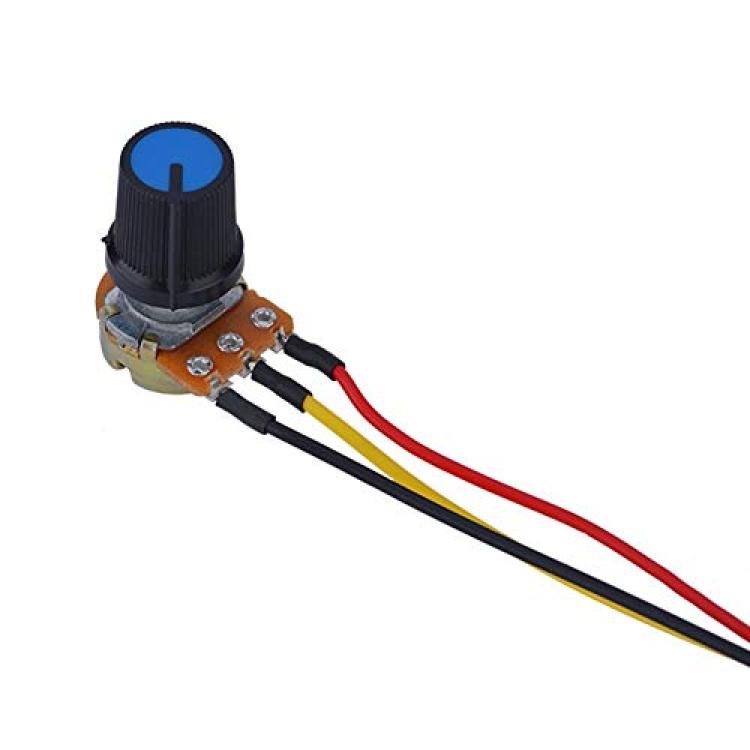

Speed Adjustment Way: Potentiometer
Output Voltage: Linear under load
Efficiency: >90%
Size: Approx. 92 x 52 x 36mm / 3.6 x 2.0 x 1.4in
Package Weight: 132g

Package List:
1 x Speed Controller

Note:
This DC motor controller input is connected to direct current, CANNOT be connected to alternating current, or it will be burnt. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
