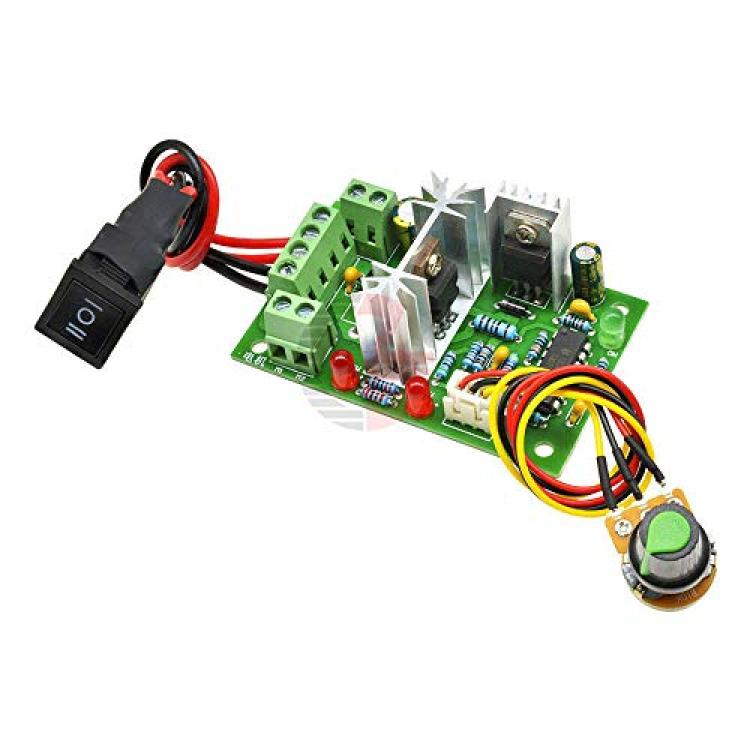

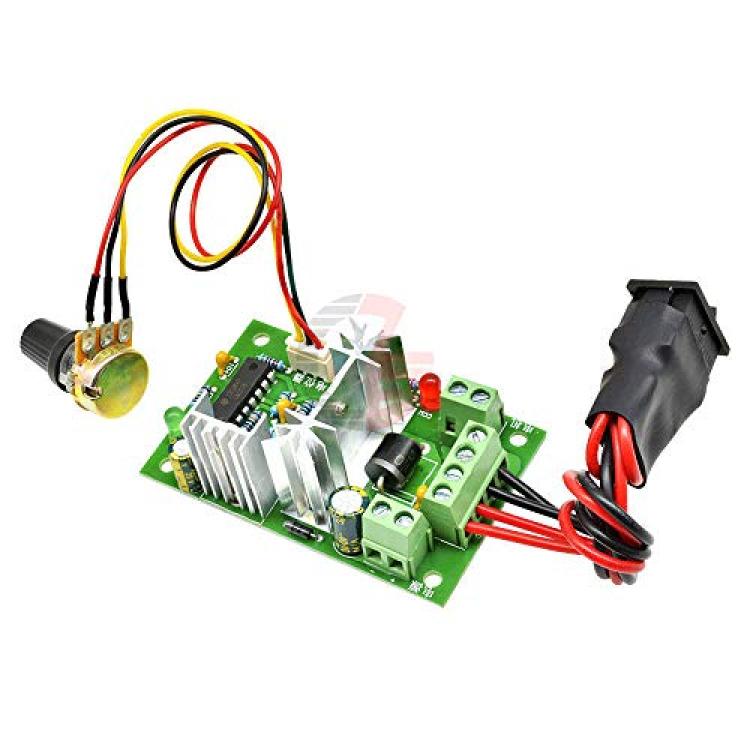

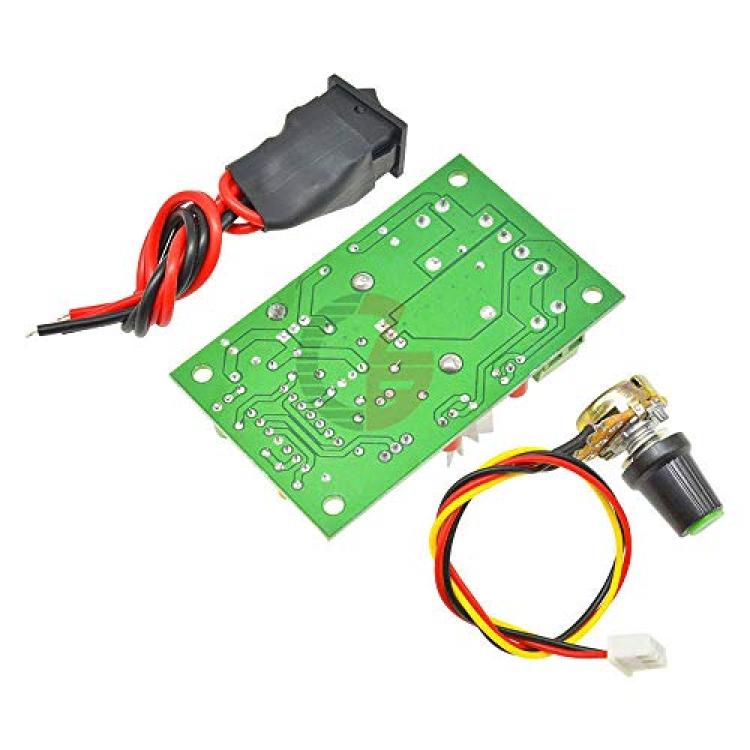

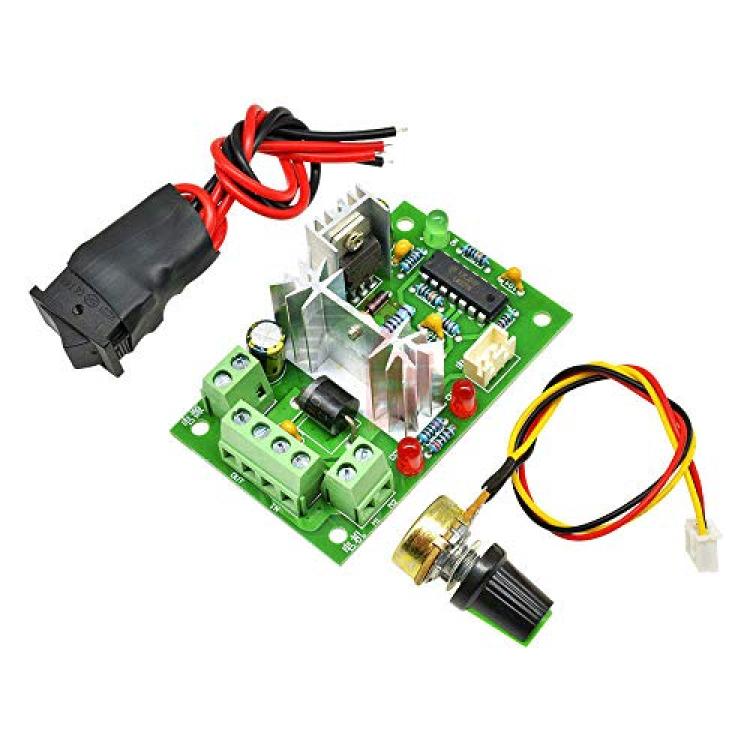

80W 10A 12V Reversible Adjustable DC Motor Speed Controller High Torque PWM Speed Regulator Control Switch 6-30V Potentiometer

Descriptions:





Material: Plastic, metal


High efficiency, high torque, low heat generating


Control the speed of a DC motor with this controller


With reverse polarity protection, high current protection


Input: DC 6~30V


Output: Max 80W


PWM range: 10% ~ 95%


Current: Max 10A(Recommend you to use in 6A)


With potentiometer


With reversible switch


All tested before shipment





Operating Instruction:





1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a DC power supply(the DC supply voltage range is more than 6V and less than 30V).Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged.


2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent with the expectative one, you can adjust the sequence of lines or switch position to change the direction.


3. Adjust the switch. Positive inversion switch is used to control the motor speed direction. When the switch is located on the zero position, the motor stops rotating.


4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output duty ratio of the regulator, then motor speed change.






Package Included:





1 x DC Motor Speed Controller
