iFlight 4pcs XING-E Pro 2207 1800KV Brushless Motor 6S for QAV FPV Racing Drone Quadcopter
Availability: Pre-Order, Inquiry Price
About this product
*The XING-E Pro is a very strong and powerful FPV motor for FPV racing, great value choice with well known XING performance. Focuses on quality, the XING-E series is affordable motors that are strong and durable
*This 2207 sized motor features a high-strength 4MM steel hollow shaft, single strand winding for performance, M3 shaft screws and larger 9X4X4MM NSK bearings
*The iFlight XING series motor is characterized by support 6S
*These 4 pack 2207 brushless motor used standard M3 16mmx16mm mounting pattern at the bottom,160mm cable length for different frames and setups
*Each motor has been dynamic balanced, crush resistant damping bearing, eliminate vibration effectively
Description
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.
focuses on quality, the XING-E series affordable motors that are strong and durable.Â
This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw,
and larger 9x4x4mm NSK bearings.
Features
-High-strength 4mm Steel shaft
-N52H High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-Hex bolt shaft set screw

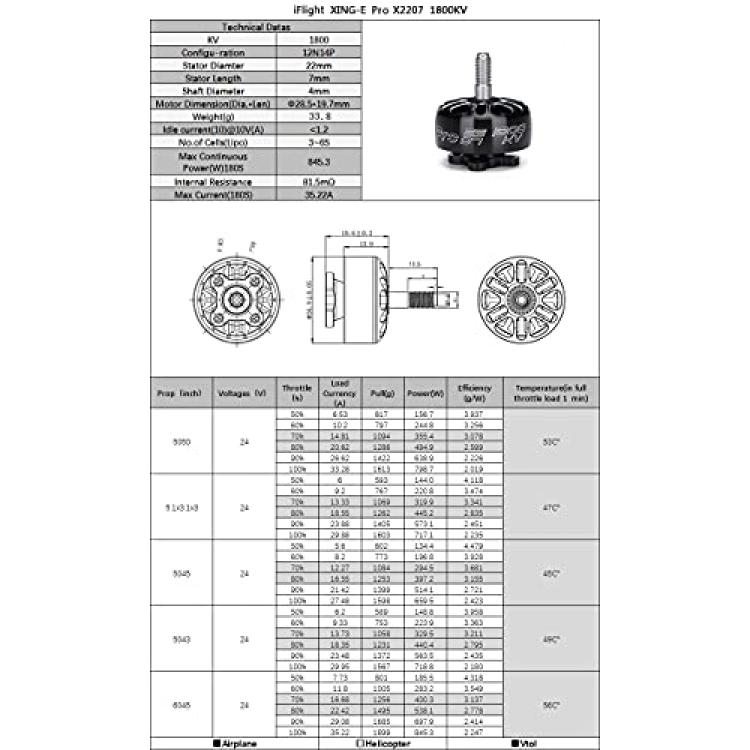

Specifications
-Configuration:Â 12N14P
-Stator Diameter:Â 22mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension: 28.5x19.7mm
-Weight: 33.8g (150mm wires)
-Idle Current @12.6v (Io):Â 1.2 A
-Cells (LiPo): 2-6S
-Max Burst Current <10s: 35.22A
-Max Power (W) 60s: 845W
-Internal Resistance (Rm):Â 81.5m?
-Motor Wire Length:Â 150mm / 20AWG
Package included:Â

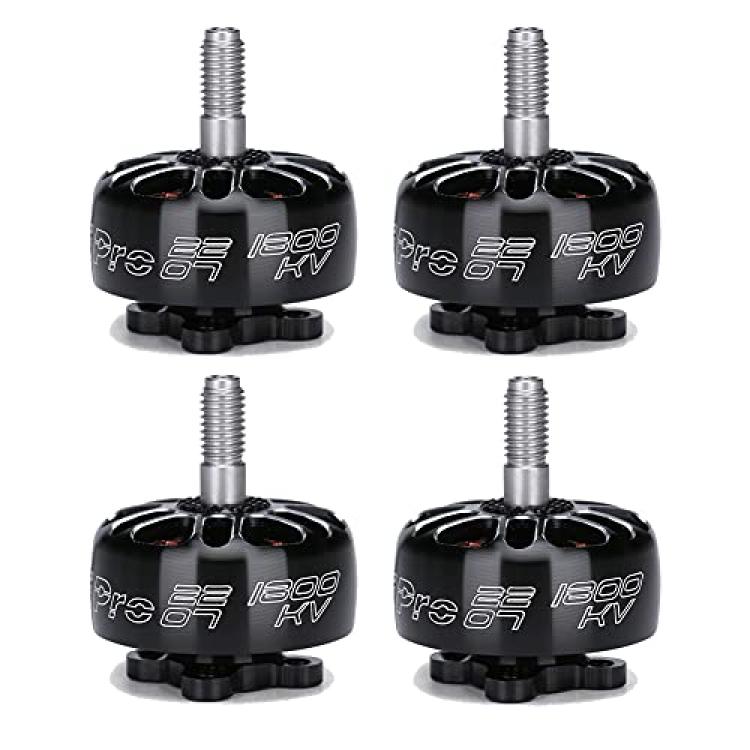

4 x MOTOR XING-E Pro 2207Â 1800KV motor
