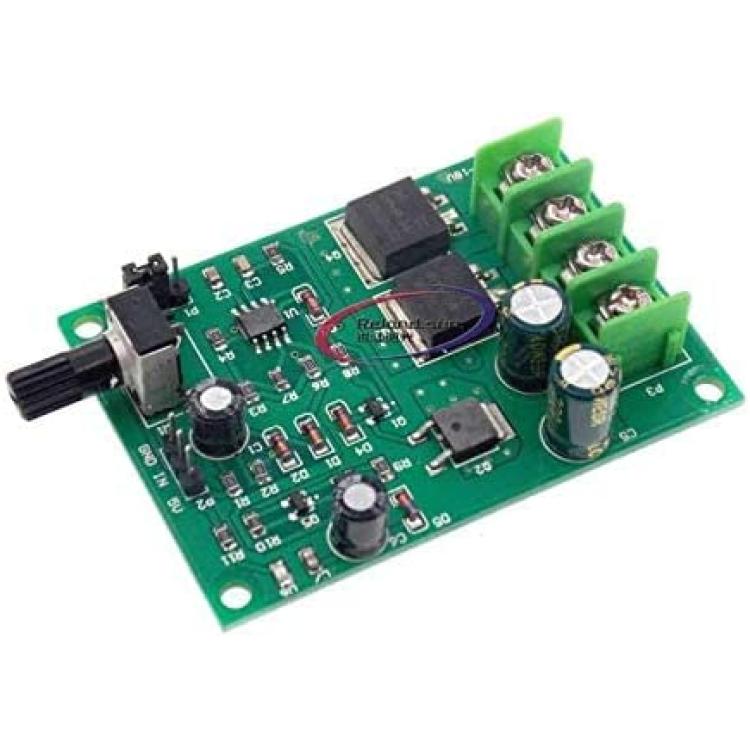

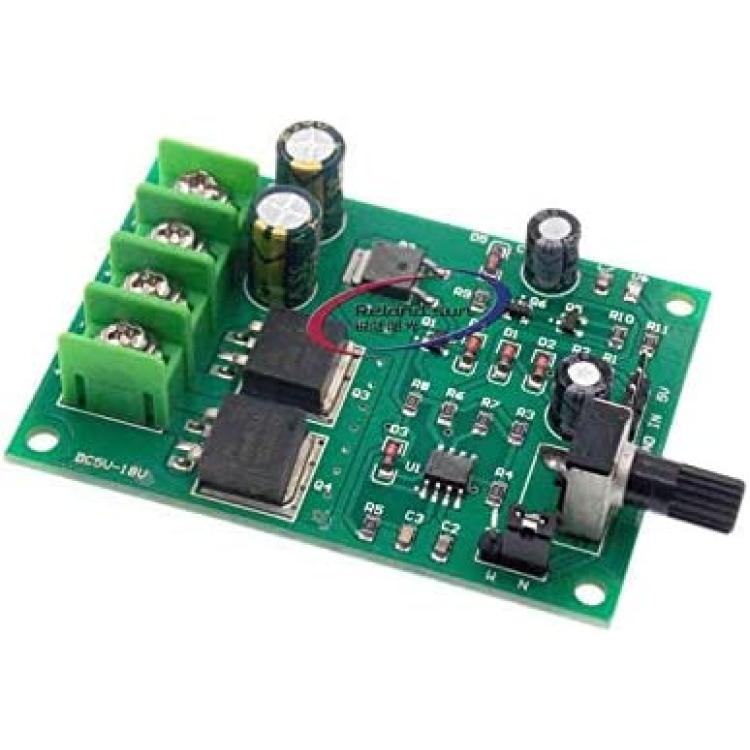

Motor Driver Board DC5-18V PWM High Power Speed Governor Motor Speed Controller with Switch

Features:
Applicable Motors: within 5V60W, 6V70W, 9V110W, 12V150W, 15V180W and 18V200W are all available. PWM output range: 0% to 100%, motor can be fully mediated and running at maximum speed There is power supply voltage reverse connection protection on the speed control board. With slow motor start function, increase motor current to normal within 2 seconds The Controller board can be connected with PWM signal of about 5V 10KHZ or speed regulation of 0-5v voltage


Spec:
Driver voltage:DC5v-18v
Rated current 12A, short time 15A
PWM output range: 0% - 100%
Frequency: 13kz
Weight: Approx.28g/1oz

Package list:
1 x Motor Controller
