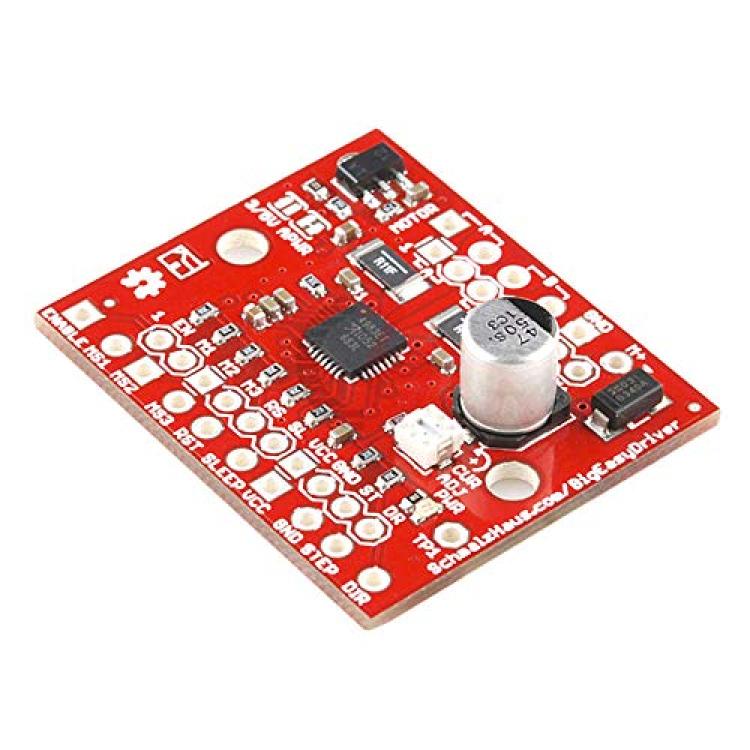

Big Easy Driver Board V1.2 A4988 Stepper Motor Driver Board 2A/Phase for 3D Printer

Features:

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to 2A/phase. It is based on the Allegro A4988 stepper driver chip. It's the next version of the popular Easy Driver board.

Each BigEasyDriver can drive up to about 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 2A/phase. You can find the recommended heatsink in the related items below.


Notes:
The arrow indicators on the current adjustment potentiometer is backwards. Keep this in mind if you're adjusting the current limits.


This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.


Features:

Bi-polar Microstepping Driver
2A/Phase Max
Max Motor Drive Voltage: 35V
On-board 5V/3.3V Regulation


Package Included:

1 x Stepper Motor Driver Module
