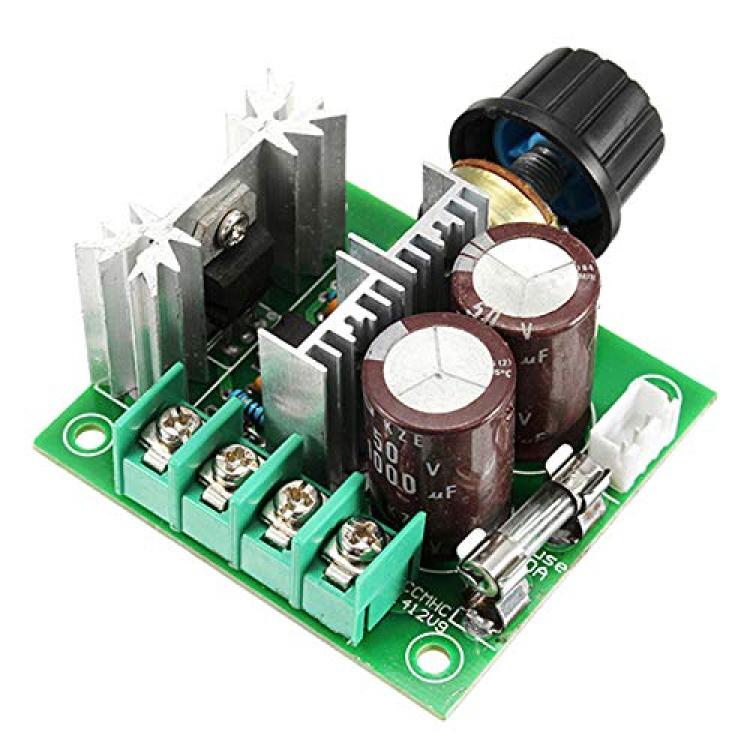

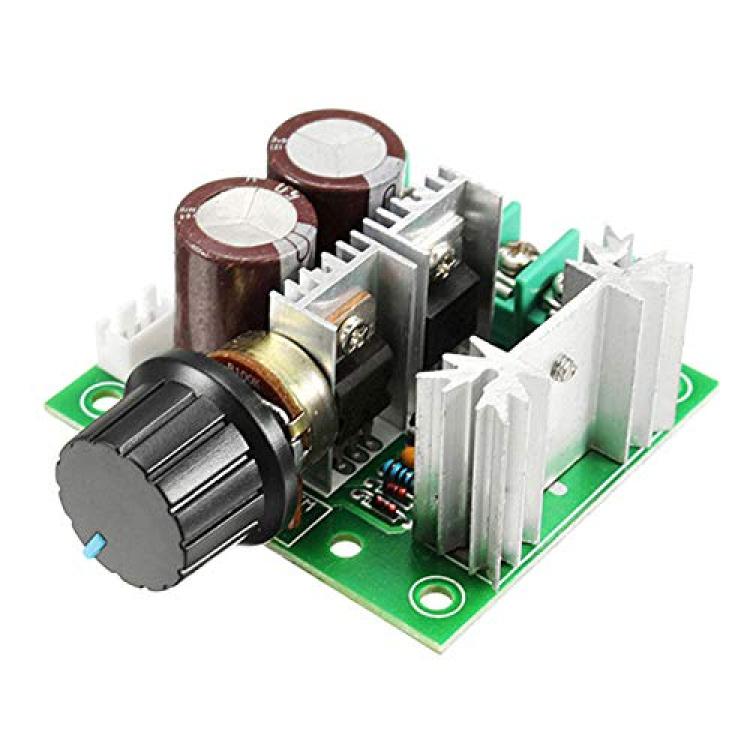

1pc DC 12V-40V 10A 13Khz Motor Speed Controller Pump PWM Stepless Speed Change Speed Control Switch
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*Test before shipping.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
Description
Specifications:
Input voltage: DC 12V-40V
Power: 0.01-400W
Current: rated current 8A, large, the maximum current 10A, static current 0.02A (standby)
Frequency: 13Khz
PWM pulse width regulation range: 10%-100%
With 10A fuse (5 x 20mm standard size), with power supply reverse, control voltage over-voltage protection function
With high quality potentiometer
If the forward and the reversal function is required, you can connect the positive and negative switch.
Size: 60 x 55 x 28mm, the positioning hole is 5mm from the-edge of the board, and the diameter of the locating hole is 3.2mm.
Package included:
1 x DC 12V-40V 10A 13Khz motor speed controller
