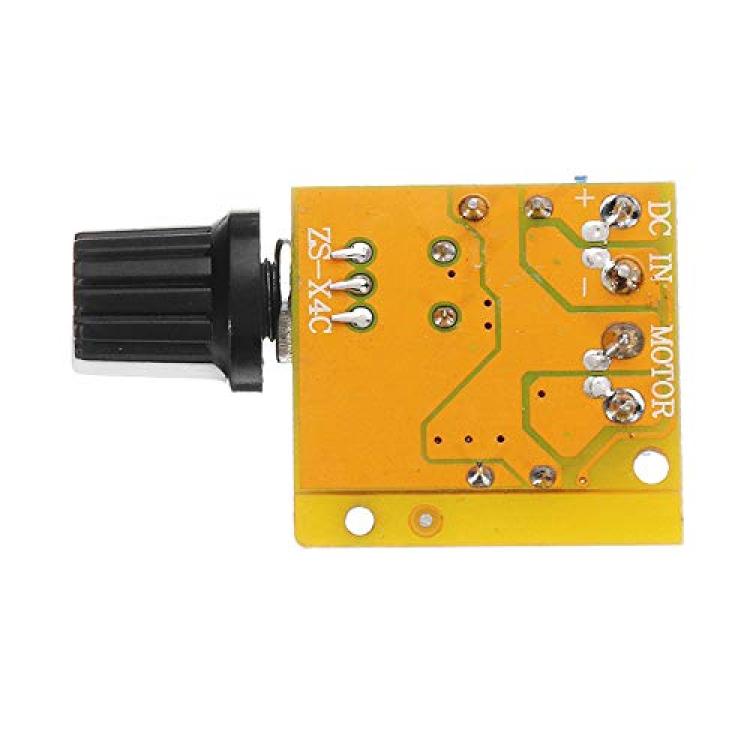

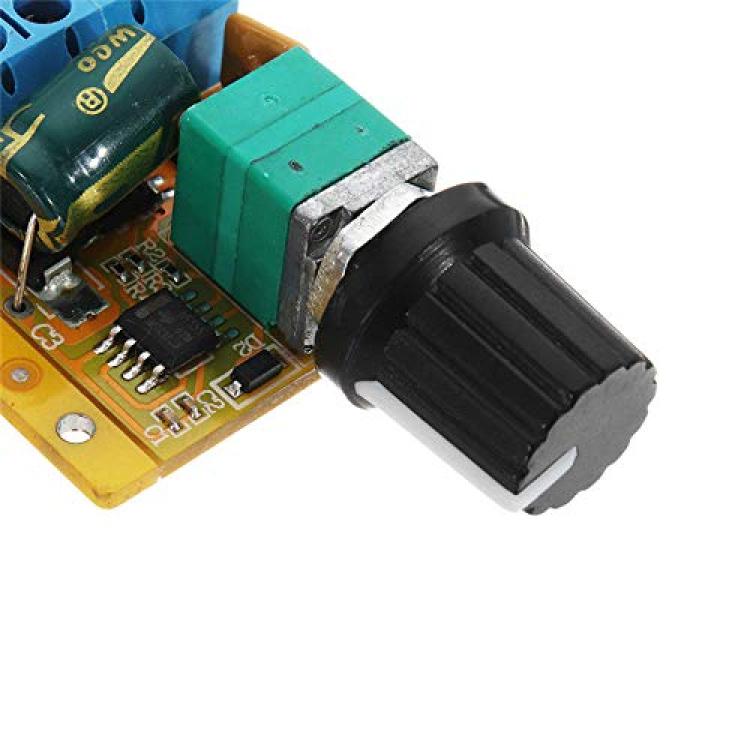

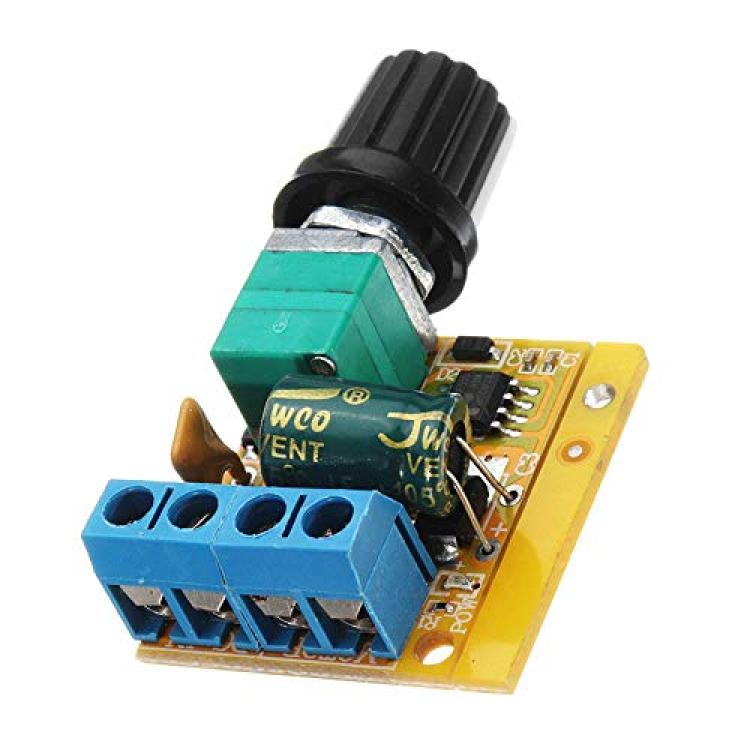

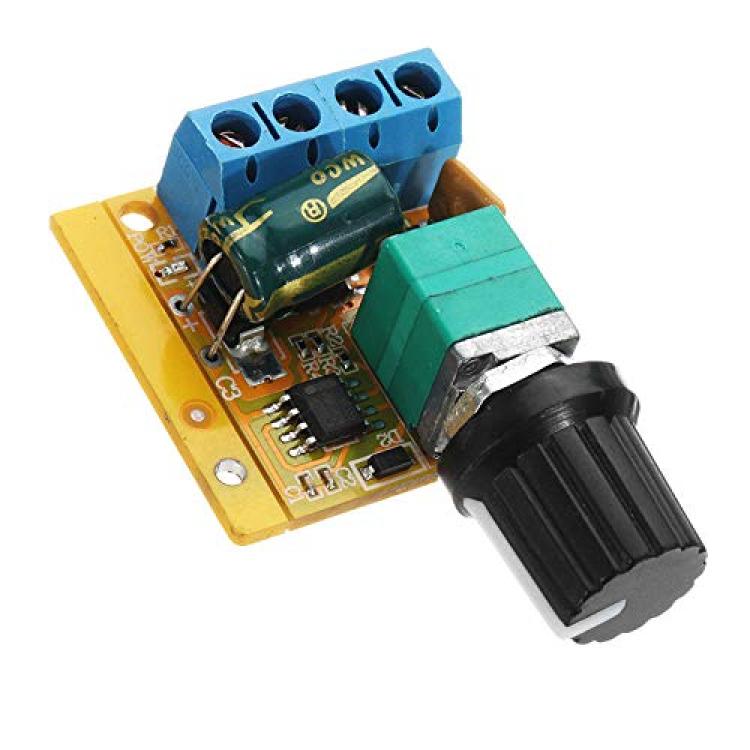

Mini DC 4.5V-35V 5A 90W DC Motor PWM Speed Controller Module Speed Regulator Adjustable Switch Board
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*Test before shipping.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
Description
Specifications:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm
Precautions:
-DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
-DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
-The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
-Adjust the potentiometer knob to change the governor output cycle, the motor speed changes.
Package Included:
1 x PWM DC Motor Speed Controller
