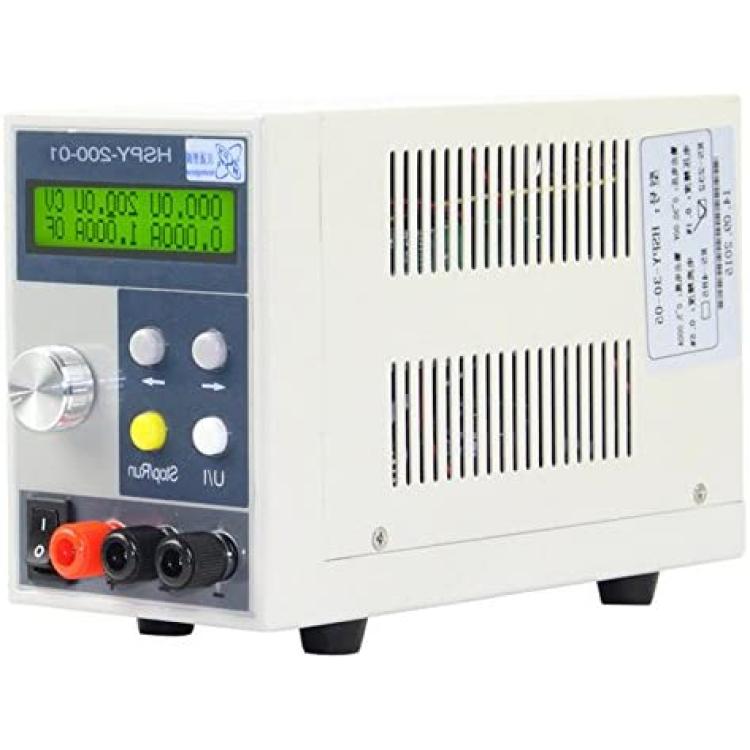

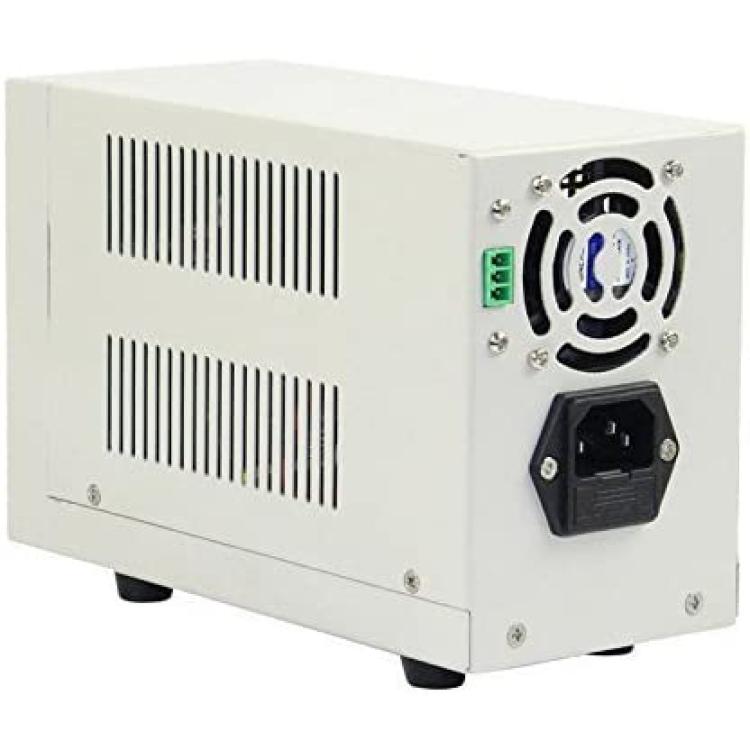

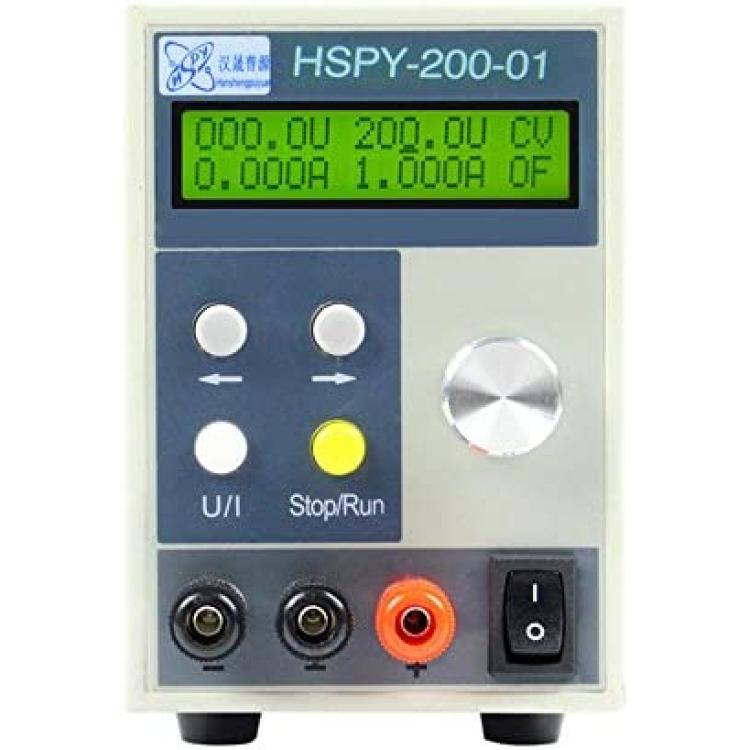

0~200V 0~1A Programmable Digital DC Power Supply Cup Time Tracking Precision Variable Adjustable Linear DC Power

Feature:

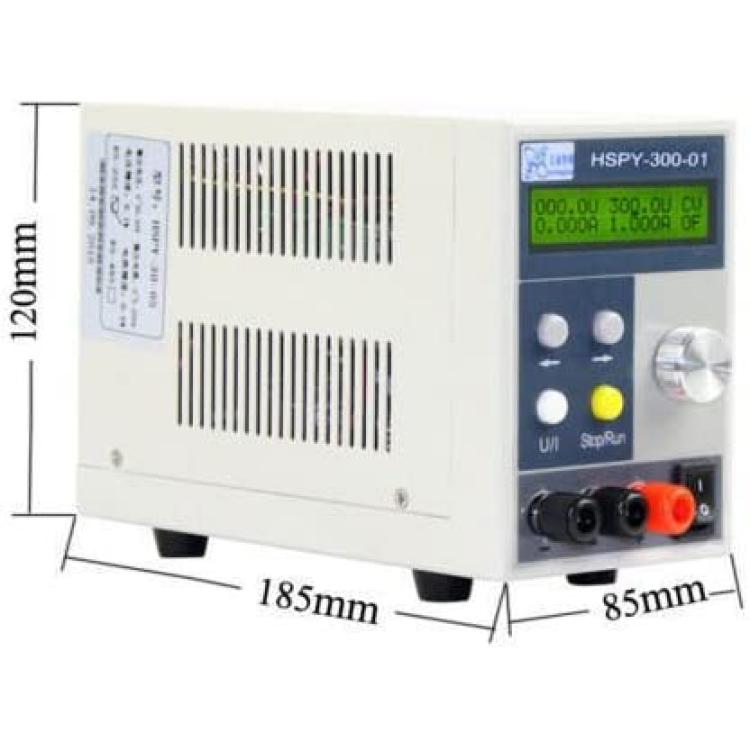

1.Small size, light weight (volume: 185 x 85 x 120mm, Weight: 1.45KG).
2.CPU real-time tracking, the output value of the long-term stability.
3.Unique circuit topology, two adjustable voltage regulator circuit configuration of the power supply in the switch instantly to load zero impact.
4.High-precision, high-resolution, low temperature drift, high stability (machine temperature drift is less than 50ppm, 0.1% accuracy, resolution V = 10mV, I = 1mA)
5.Memory storage, can hold off the last set of voltage and current values. Built-in software locking function, through the computer software operation panel lock, to prevent misuse.

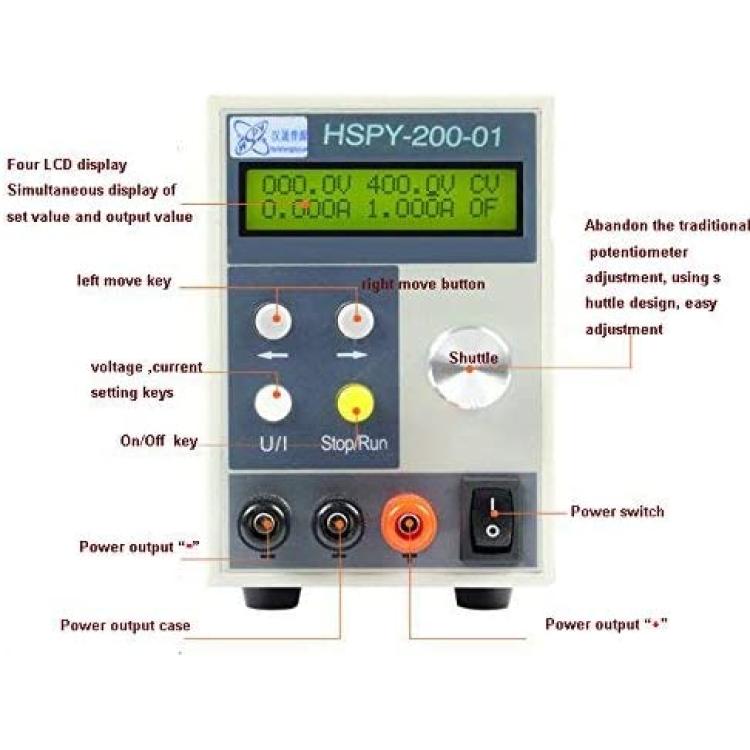

6.Button operation, jog adjustment (to abandon the traditional potentiometer adjustment).
7.Programmable, its built-in standard Modbus communication protocol allows more power into the automation system.

Technical Parameter:
1.Output voltage range: 0~200V adjustable ?Output current range: 0~1A adjustable
2.Voltage / Current Display: LCD 4-digit display
3.Load Regulation: 0.02% + 20MV voltage current 0.02% + 20mA
4.Setting accuracy: voltage:0.1% , current:0.5%
5.Display accuracy: voltage:0.1% , current:0.5%
6.Setpoint resolution: Voltage: 100mV current 1mA
7.Display resolution: voltage: 100mv Current: 1mA
8.Ripple and noise: Voltage ?5mVrms, current ?3mArms
9.Readback value of the temperature coefficient: 50PPM
10.Dimensions: 185 * 85 * 120mm
11.Body weight: 1.45Kg

Package Included:
1 x Set of 200V/1A Adjustable DC Power Supply
