CM36-3650 Reduction Geared Motor,Brushless DC Motor Mechanical Parts Metal Gear High Torsion Low-Noise Wear-Resistant 12V 36MM Mini DC Motor High Torque Gear (1600RPM)
About this product
*High performance: electric gear, high-quality all-metal gear with brushless motor, exquisite workmanship, sturdy and durable, impact resistance, wear resistance, quiet, stable operation, low loss, accurate and durable

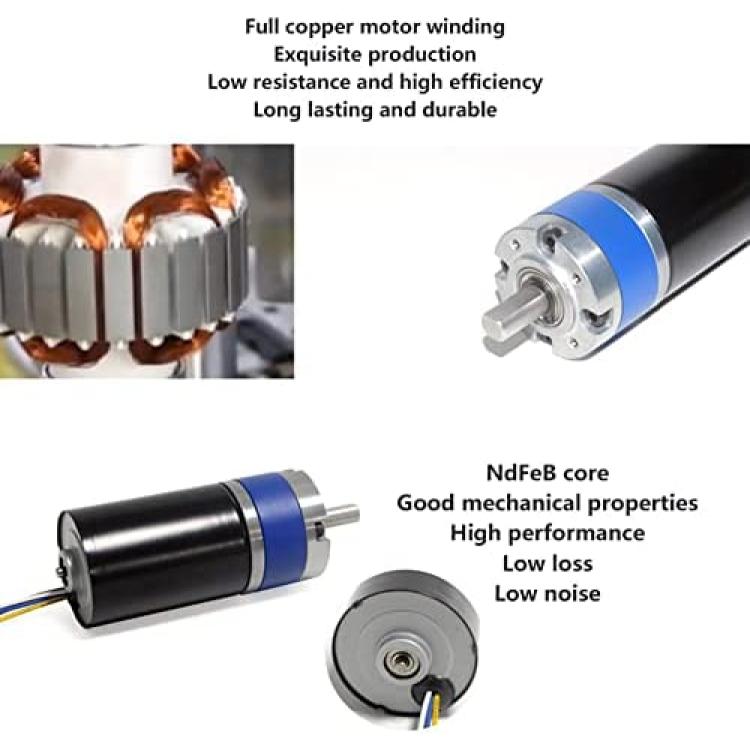

*Product details: Geared motor, the rotor and stator of the motor use pure copper coils to strengthen the anti-deceleration ability and conductivity, increase the torque of the motor, and instantly increase the power of the geared motor.
*Application scenarios: Geared motors can be found in many different applications, and may be used in many devices in your home, suitable for smart devices, smart sweepers, monitors
*Small and convenient: Motor gear box accessories, small and light appearance, stable performance, quick and convenient installation and disassembly, space saving, relatively light weight, simple operation
*Guarantee: If you have any questions or suggestions, please feel free to contact us. We will do our best to provide you with a pleasant shopping experience
Description
Feature:

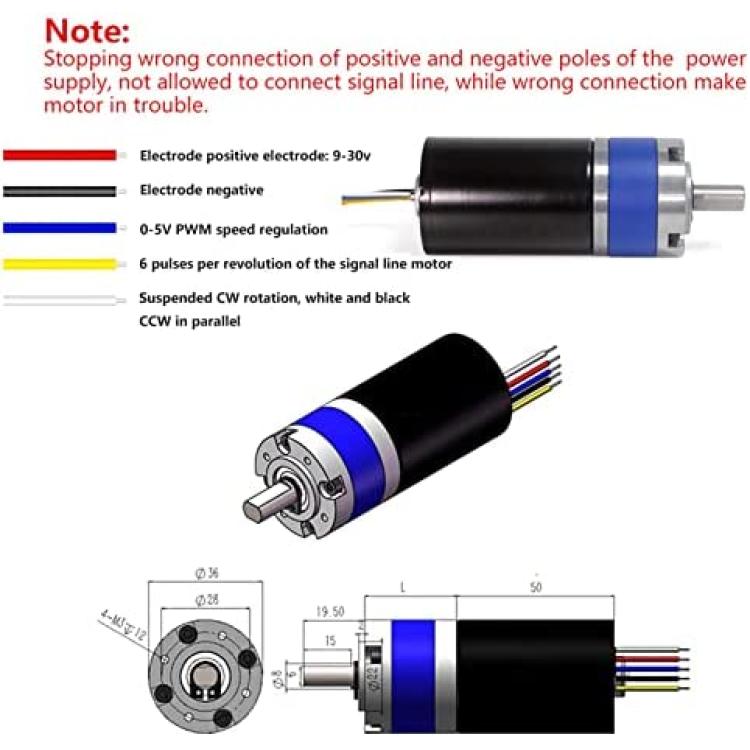

1. Brushless DC motor supports CW/CCW with exquisite craftsmanship, light and practical.
2. With metal gear, smooth and wear-resistant motor is improved for more durability.
3. High torsion, low noise motor keeps long life with high performance according to strict rule.
4. Gear motor can be suitable for many industrial fields, which makes itself getting great popularity.
5. Entitled with practical adoptability, motor's high quality can keep its high performance for a long time.
Specification:
Item Type: MotorÂ
Model: CM36-3650
Rated Voltage: DC 12V
No-Load Current: Maximum 0.23A
Load Current: Maximum 1.3A
Stall Current: 4A
Rated Voltage: 10W
Out Shaft Diameter: Approx. 8mm / 0.31in
Rate: 1600RPM / 1200RPM / 430RPM / 230RPM / 120RPM /Â
85RPM / 60RPM / 45RPM / 32RPM / 23RPM / 16RPM / 12RPM / 8RPM (optional)
Rated VoltageReduction ratioNo loadThe RatedStall
Rotating speedElectric currentRated loadLoad speedElectric currentStall torsionElectric current
12vR/MINMAKg.cmR/MINMAKG.cmA
3.716002300.7130013003.24
5.1812002301100013004.64
144302303360130010.74
272302305195130020.74
5012023091001300384
718523013751300464
1006023018521300654
1394523020401300904
18932230262413001104
26323230361713001504
3691623051121300NO stall4
5161223071913004
7218230100613004
Package List:
1 x MotorÂ
