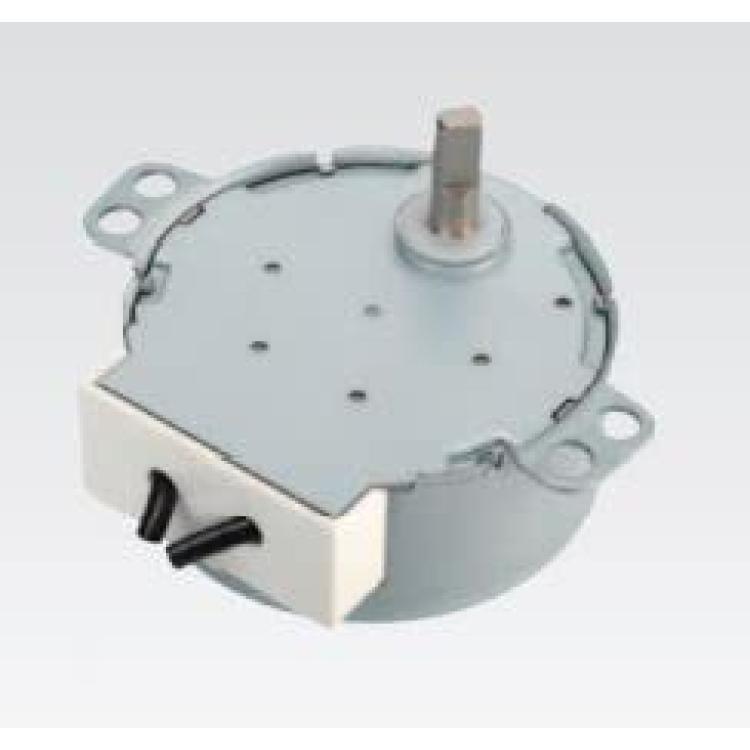

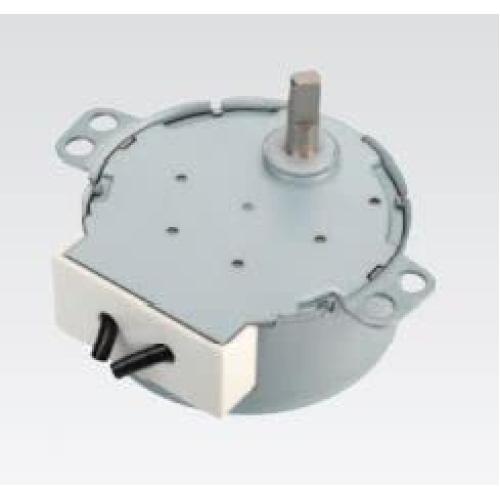

Synchronous motor 220 VAC 4 Poles Free (50SM21-16B)
Description
Performance Parameters:
Insulation Class : 105
Noise dB(a): <40
Rated voltaje: 220 VAC
Rated Frecuency: 50/60 Hz
Input Power: 4 W
Output Power: - W
No load Power: <4 W
Rated Current: <20 mA
Resistance: 9800±680 Ohms
Rated Speed: 4.2/5 r/min
Output Torque: > 0.49 N.m
Motor Steering: Free
No. Poles: 4
Leading Wire Mode: Leading wire style
Exposed Length of lead wire: 160 mm
Operation System: S1
Typical Applications:
Air conditioner
Roaster
Electrical andiron
Microwave oven
Automatic door lock
