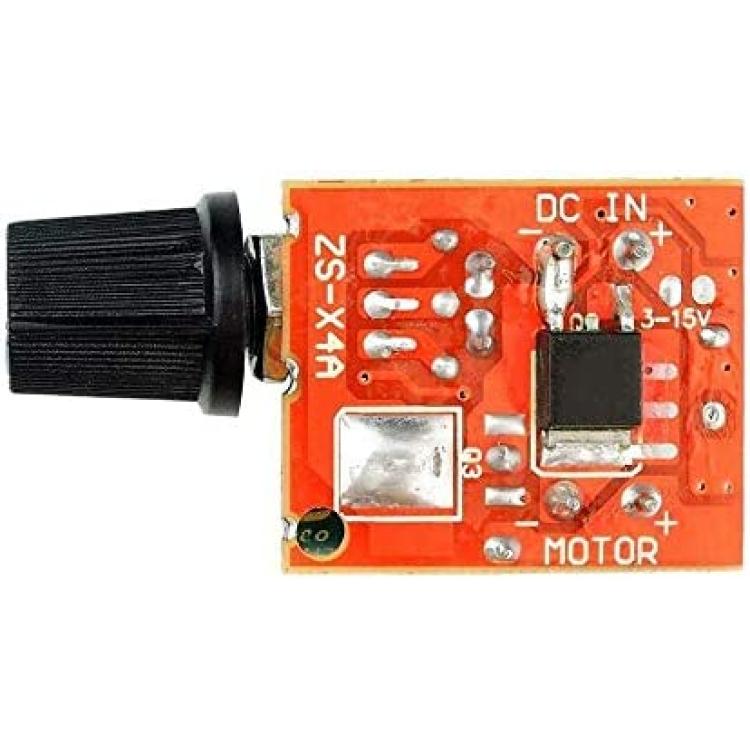

COVVY Mini PWM DC Motor Speed Controller 3V 6V 12V 24V 35V Speed Control Switch LED Dimmer 5A, Pack of 2
About this product
*Mini DC motor governor, But also applies to LED dimming.
*Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%.
*By screwing the potentiometer, you can turn off power supply output.
*High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recovery.
*Default disconnection of short circuit point ,it is Applicable to 5-35V input voltage;If connect short circuit point,it is suitable for low voltage 3-15V input.
Description

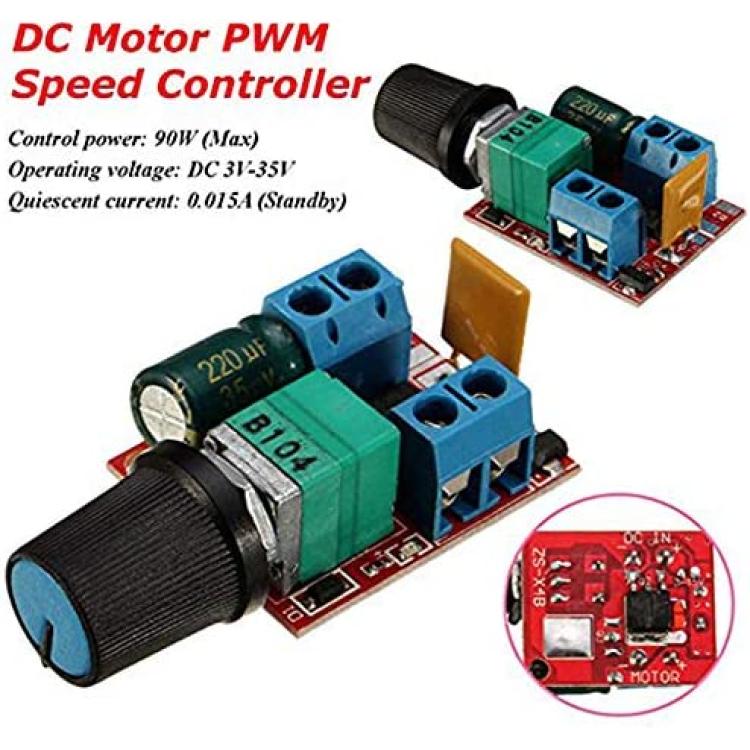

 Specifications:
 1.Operating voltage: DC3V-35V
 2.Control power: Maximum 90W
 3.Quiescent current: 0.01A(Standby)
 4.PWM duty cycle: 1%-100%
 5.PWM frequency: 10khz
 6.Shell size: 30MM*24MM(Without handle) total height is 15MM
 7. Net weight: 0.015KG

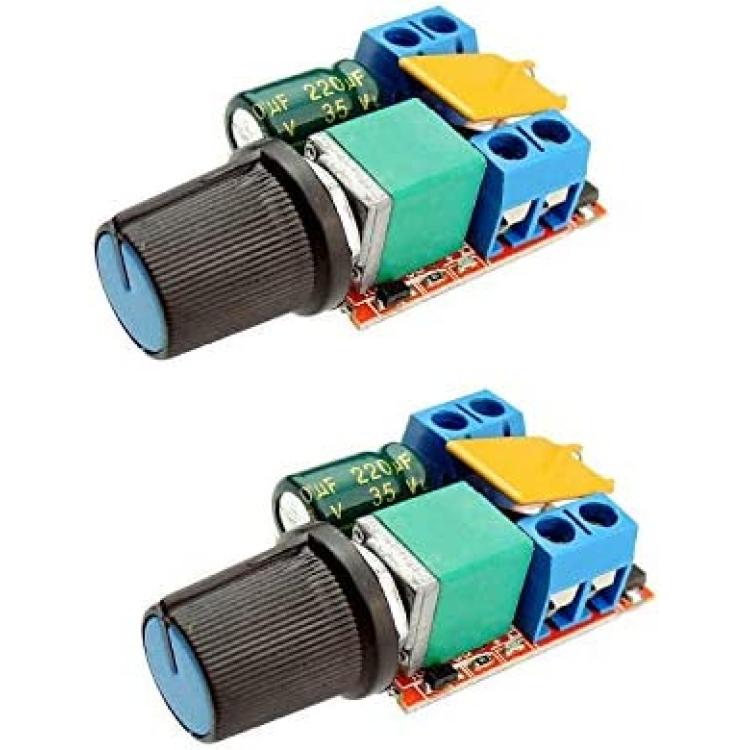

 Packing included:  2 x PWM Speed Controller 5V-35V
