GLOBACT 21T 550 Brushed Motor and 80A ESC Brushed Motor ESC Combo BEC 5A 7.4V/6.4V for 1/10 RC Crawler Car Traxxas Trx4 Ford Bronco Trx6 Axial SCX10 II III Redcat Gen7 Gen8 V2 RC4WD D90 (T Plug)
Availability: Pre-Order, Inquiry Price
Description
ESC Specifications:
Product Name: Globact Brushed 80A ESC
Type: Brushed
Waterproof level: IP65
Forward: persistent current/peak current: 80A /320A
Reverse: persistent current/peak current: 40A /160A
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
BEC output: Switch Mode: 5A 7.4V/6.4V Adjustable

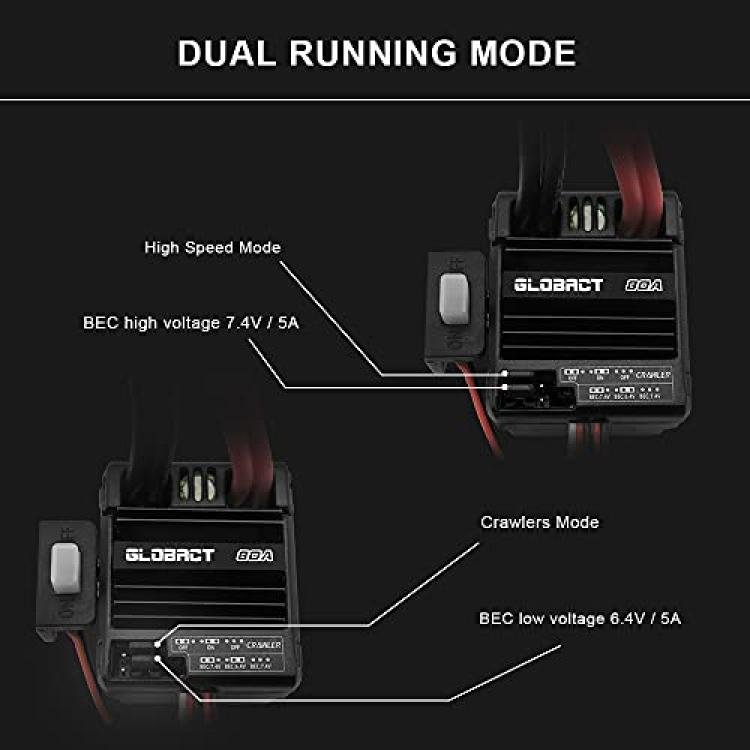

Running mode: Crawlers & High Speed Adjustable (Forward / Reverse)
ESC Programing via: Program Port Jumper Cap
Input Connectors?T Connector
Output Connecotors?4.0 Bullet Connectors (Female)
Size?42x35x27mm
Weight?50g

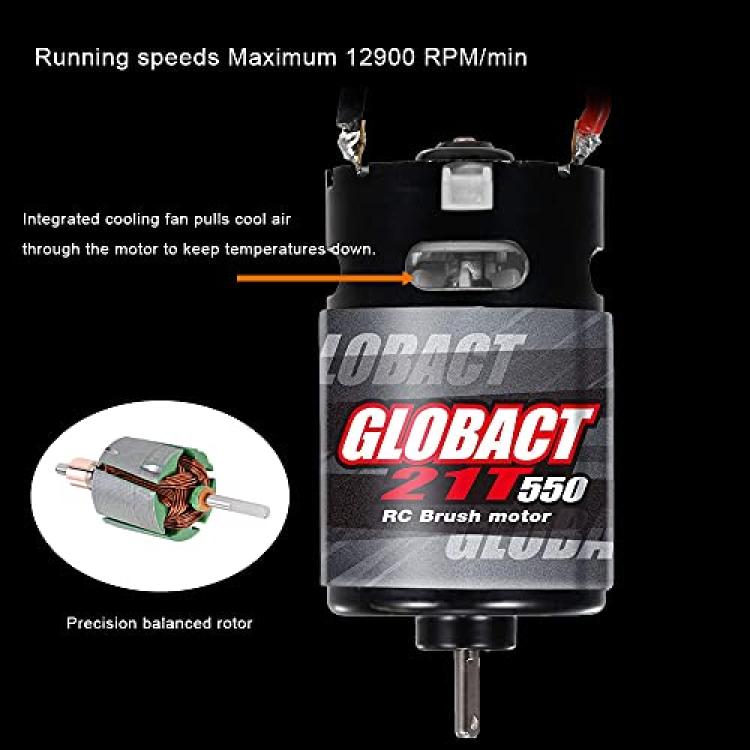

Motor Specifications:
Item name: Globact 550 21t Motor
Color: Black
Size: 550
Turns: 12T
Watts: 40-91W
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
Max Amps: 70A
KV(RPM/Volt): 21T
Max RPM: 12900
Waterproof level: IP65
Diameter: 36mm
Length: 55mm
Length of extend shaft: 16mm
Shaft diameter: 3.175mm

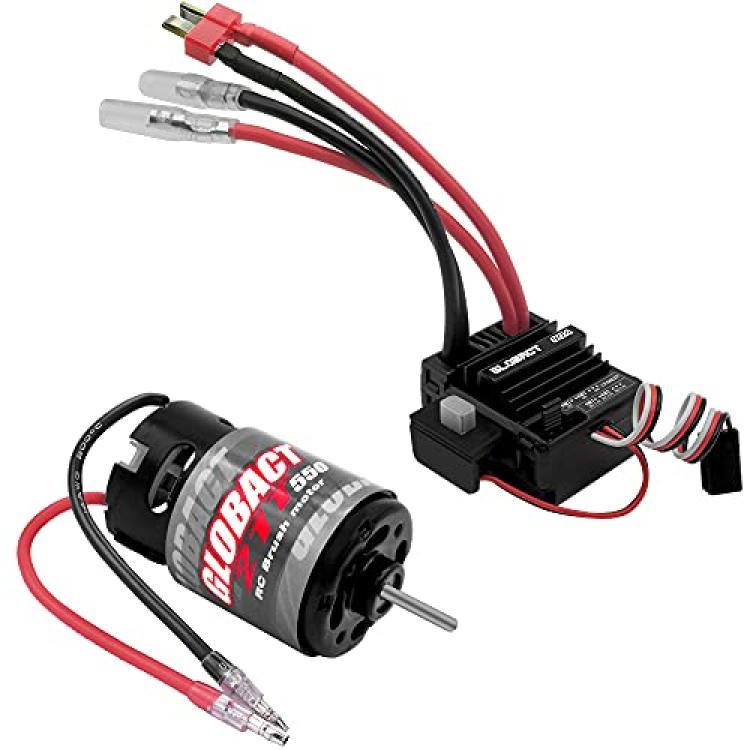

Packing List:
1 * GLOBACT Brushed 80A ESC
1 * GLOBACT 12T 550 motor
1 * User manual
