Brushed Controller, 24V 500W Electric Bicycle Scooter E-Bike Motor Brushed Speed Controller Box with Handle Throttle Grip
Availability: Pre-Order, Inquiry Price
About this product
*Compatibility: Electric Bike Speed Controller fits to 7/8 inch (22.2mm) standard handle bars. Suitable for electric bicycles, electric tricycles, and electric scooters.
*Internal protection design: The controller can protect the internal circuit to prevent open circuit and short circuit, which is conducive to heat dissipation and avoid thermal overload.
*Outstanding performance: Good grip, better comfort, anti-slip. It can provide stable speed and sensitive control of braking and direction changes.
*Easy to load and unload: There is an instruction label on the interface to facilitate installation. The wire and interface are durable and ensure low failure rate when used for a long time.
*Accelerator Wiring Method: 1. Red Connects to Red Voltage from 4.3 to 5.0 volts. 2. Blue Connects to Black or yellow Ground. 3. Green Connects to Green, blue or white Speed adjustment signal (between 0.8 and 4.3 volts). 4. Yellow Connects to Positive energy Power display.
Description
Specification:
Brushed Controller:

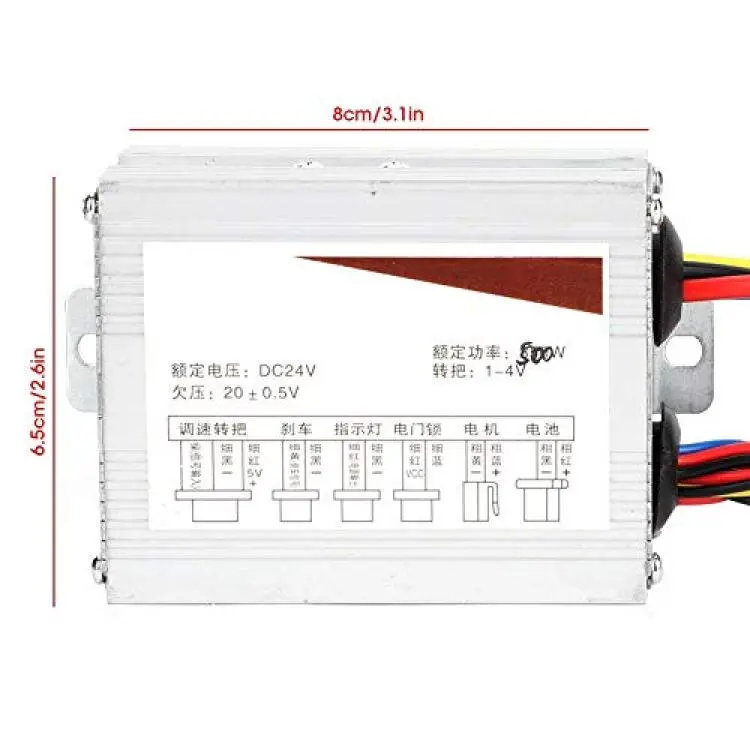

Size: (length x width) 8 cm x 6.5 cm / 3.1 inches x 2.6 inches
Brushed motor controller for electric bicycle and scooter
Rated Voltage: DC 24 v
Current Limit: 28A
Rated Power: 500 w
Matching Motor: Brushed DC motor
Under-Voltage Protection: 20 V
Accelerator
Size: (length x diameter) 10 cm x 2 cm / 3.9inx 0.8in

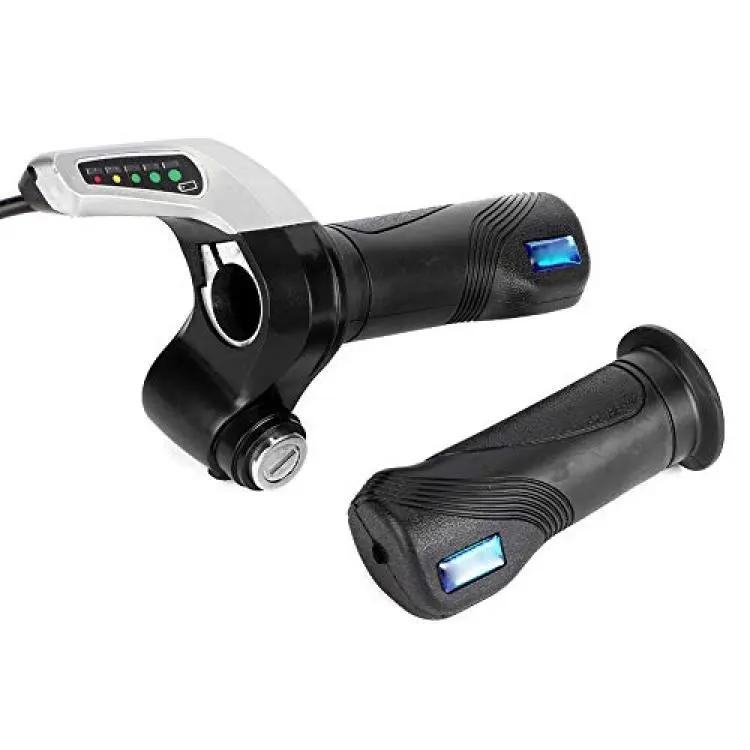

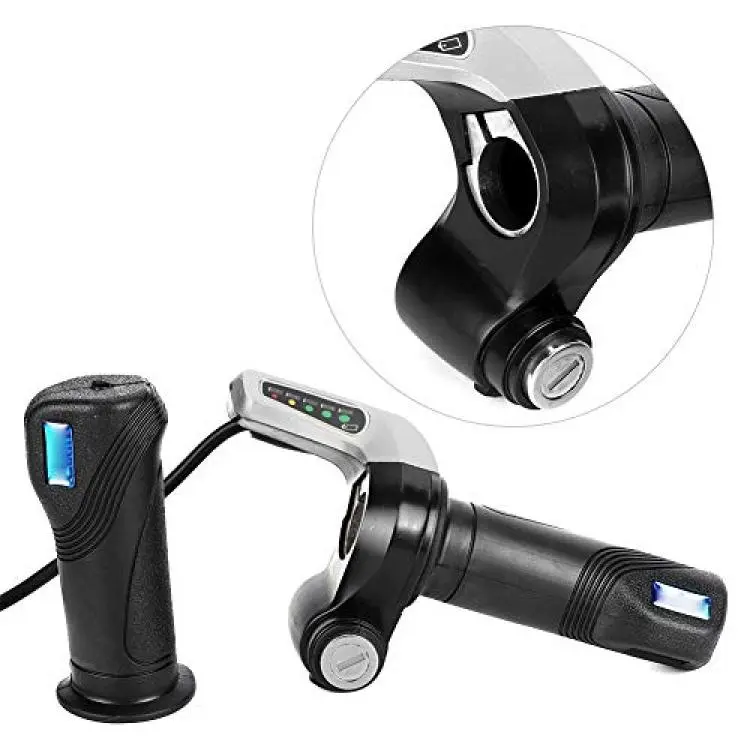

Revolving throttle accelerator for electric bicycle with power display , 5Led battery indicator.Â
The throttle operates with voltage: DC5V
Speed Adjustment Signal: 0.8 V - 4.3 V
Power Display Voltage: 24 V DC
Power Display:
Normal: 23 V up, 3 Green LEDÂ
Half: 23 V - 20 V, Yellow LEDÂ
Vacuum: 20 V or less, Red LEDÂ
Rotation Angle: 0 ° - 70 °Â
Working Temperature: -20 - + 50Â
Fits to 7/8 inch (22.2mm) standard handle barsÂ
Cable length is approximately 59 inches (1.5m)Â

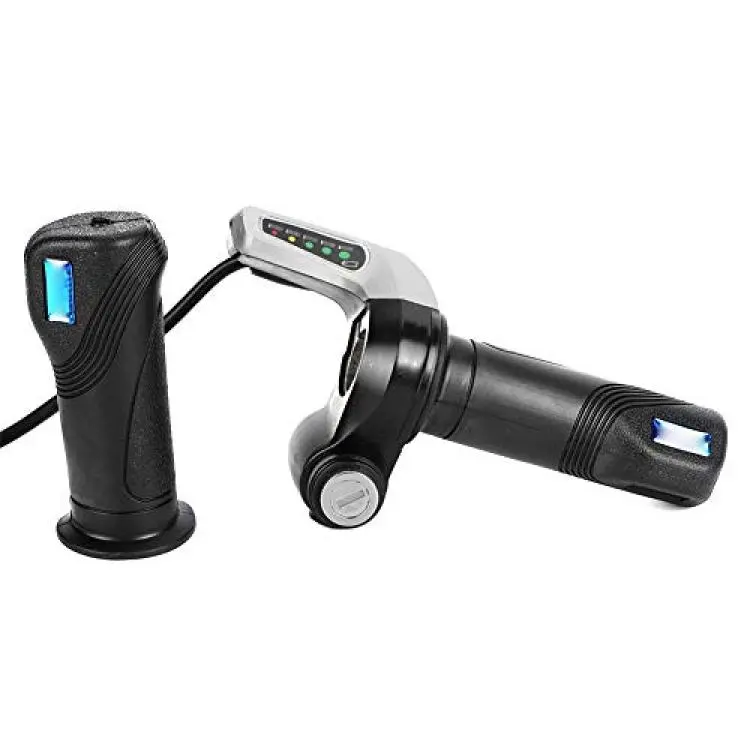

Quantity: 2pcs (1 throttle grip and 1 normal grip (matching thumb grip )Â
Package List:

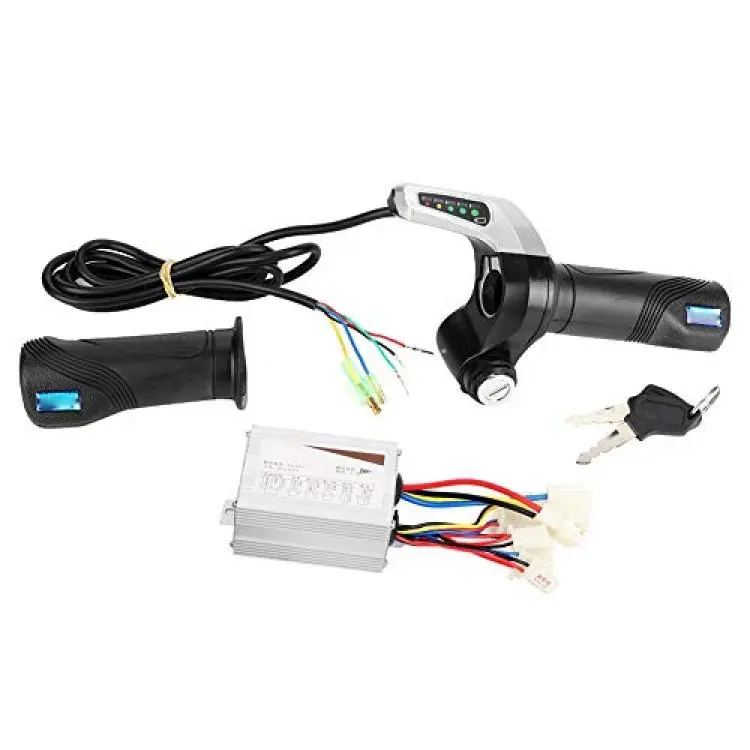

1 x Brushed Controller
2 x Throttle Grip
1 x Power LineÂ
2 x Key
Â
Cable Controller Interface Definition:
Battery: coarse black (negative power) / coarse red (positive power)Â
Motor: coarse yellow (Negative motor) / coarse blue (Positive motor)Â
Power switch: Red thin (VCC) / Blue thin
Indicator: Red thin (indicator power output) / Black Slim (negative indicator)Â
Brake: Yellow Slim (brake signal) / Black Slim (negative power)Â
Speed regulator: Blue Slim (speed handlebar signal input) / Black Slim (negative power) / red Slim (5V positive power)Â
Charging port: Red Slim (positive charge input power) / Black Slim (negative power)Â
Brake light: Red Slim (positive power) / Black Slim ( negative power)
