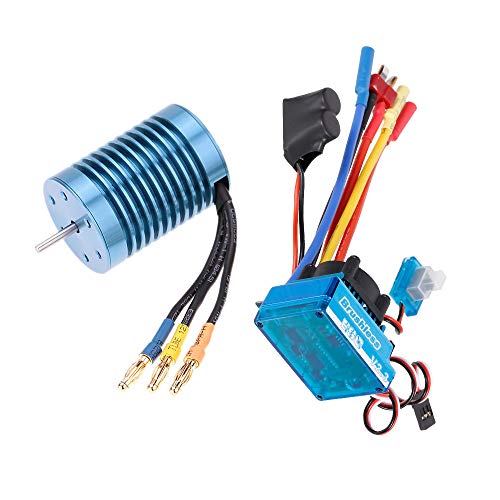

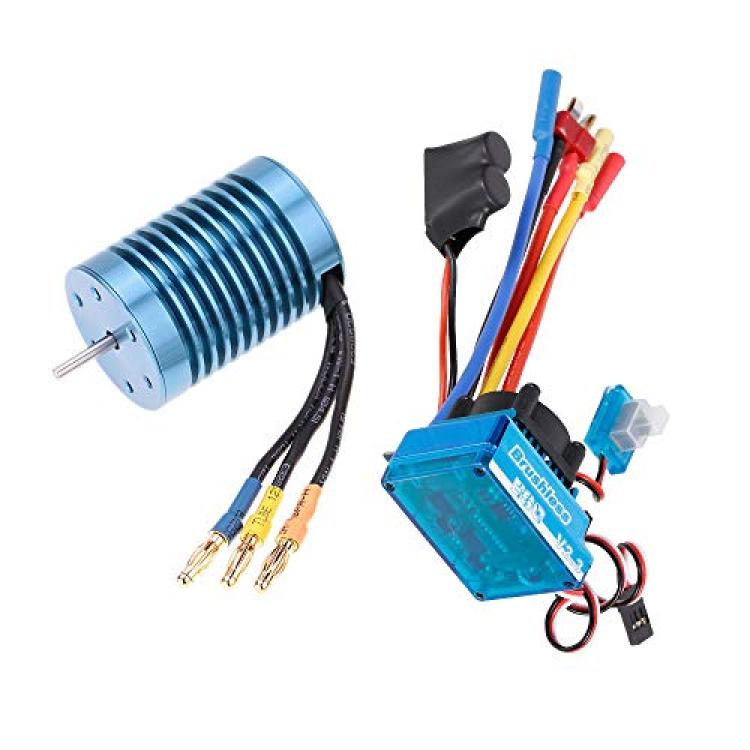

GoolRC 3650 4370KV 4P Sensorless Brushless Motor 45A Brushless ESC(Electric Speed Controller) 1/10 RC Off-Road Car
Availability: Pre-Order, Inquiry Price
About this product
*4 poles 12 slot Hi-torque motor design.
*CNC machined 6061 T6 billet alumium heatsink can motor.
*The motor features high purity copper windings maximizes efficiency.
*ESC:advanced software interface to set up or update the software.
*Mutiple protection features of the ESC: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Description

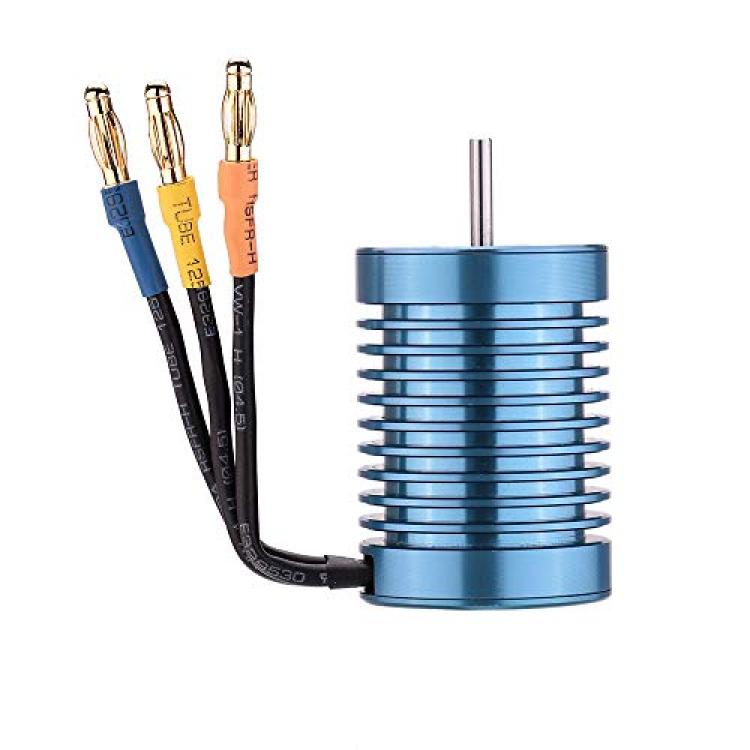

 Motor Features:
 4 poles Hi-torque motor design.
 CNC machined 6061 T6 billet alumium heatsink can.
 High purity copper windings maximizes efficiency.
 High RPM ABEC5 oversized bearings.
 Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.
 Precision balanced rotor, smoothness for best reliability and maximum RPM.
 Stator - Super Thin (0.35mm) laminations.
 Removable/replaceable.
 Precision engineered for maximum energy conversion.
 ROAR legal.

 Specification:
 RPM: 4370KV
 Max Current: 66A
 Max Watts: 820W
 Can Size: 3650
 Sensored: No
 Can Diameter: 36mm
 Can Length: 50mm
 Shaft Diameter: 3.175mm
 Shaft Length: 15mm
 Bullet Connector: 4mm
 Weight: 146g/5.2oz
 Max voltage: 7.4V(2S)-11.1V(3S)

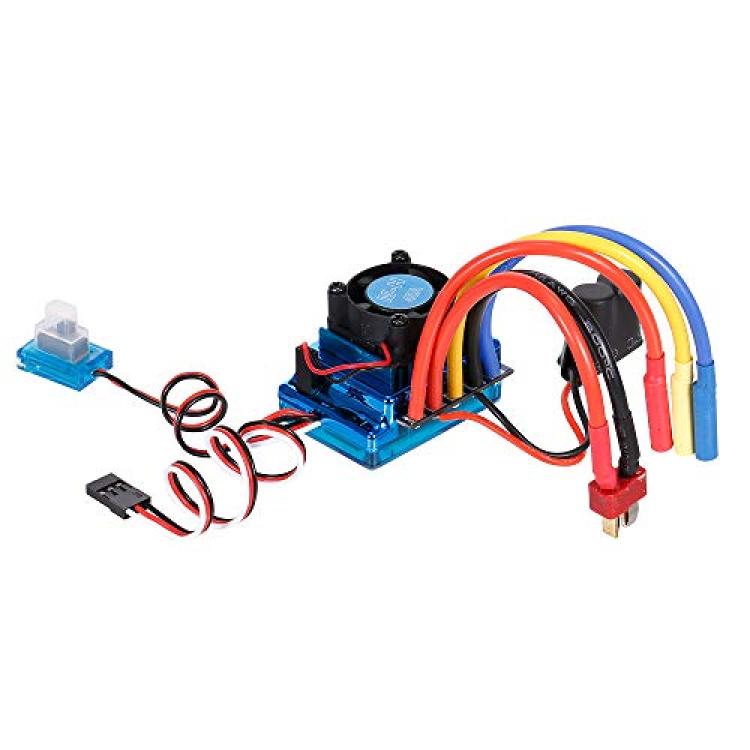

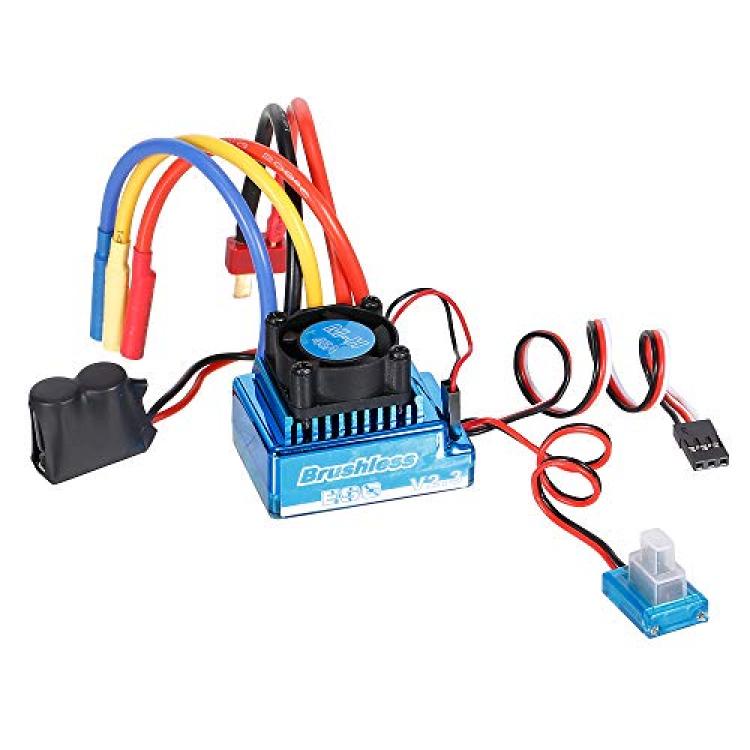

 Electric Speed Controller Features:
 Compatible with sensorless brushless motors.
 High anti-interference capability.
 Using advanced software interface to set up or update the software.
 Super smooth and accurate throttle linearity.
 Fast response to throttle input.
 Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

 Specifications:
 Cont. Current: 45A
 Burst Current: 260A/10sec
 Battery: 2-3 Cell Lipo / 4-9 Cell NiMh
 SBEC: Yes
 SBEC Output: 5.8V/3A
 Power Supply Plugs: T Male
 Motor Plugs: Female 4mm Bullet Connector
 Size: 45*35*35mm(with out fan)
 Weight: 76g /2.7oz

 Package information:
 Package size: 11 * 9 * 6.5cm/ 4.3 * 3.5 * 2.5in
 Package weight: 261g/9.2oz

 Package list:
 1 * 3650 4370KV 4P Sensorless Brushless Motor
 1 * 45A Brushless Electric Speed Controller
