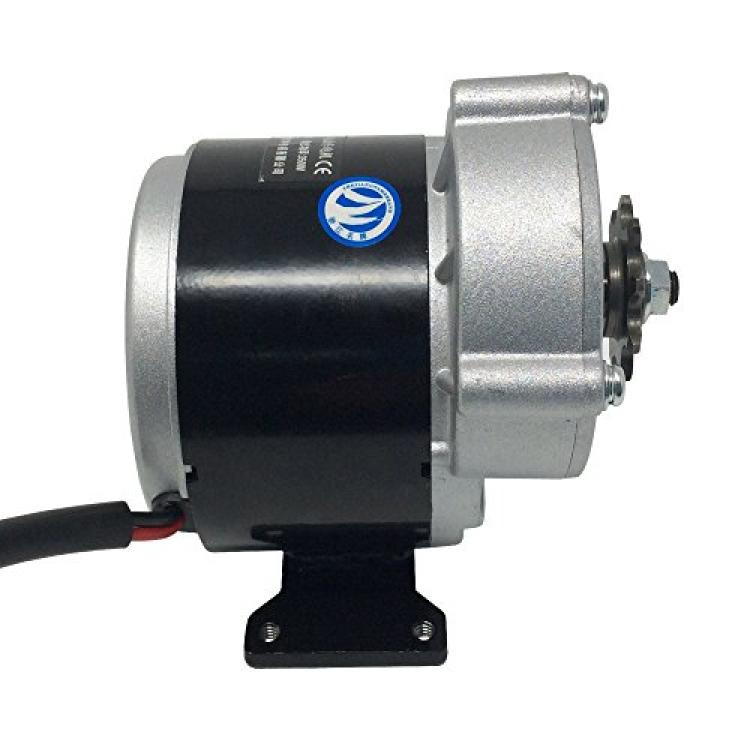

BEMONOC Electric Tricycle Motor MY1016Z3 36V 350W 300RPM DC Electric Bicycle Motor 9 Tooth Sprocket DIY
Availability: Pre-Order, Inquiry Price
About this product
*✔Rated Voltage: DC36V; DC Motor No-Load Speed: 3850rpm; DC Motor Rated Speed: 3000rpm; Gear Ratio: 9.78:1; DC Gear Motor Actual Speed: 300 rpm;
*✔No-Load Current: 2.2A; Rated Current: 12.5A; Pitch: 12.7mm (1/2"); Tooth Thickness: 3mm; Inside Diameter: 11mm; Outside Diameter: 41mm; Efficiency>78%; Working Direction: CW/CCW;
*✔The Motor Comes with a 410 Model Sprocket 9 Teeth for Ordinary Bicycle Chain), You Can Change 410 Sprocket 13 Teeth by Yourself, 420/428 Model Sprockets are Suitable too;
*✔Sweet Tips: Note on Compatibility: This Motor is NOT Compatible With The Razor Dirt Quad;
*✔Usage: Motorized Bicycle, Moped, Mini Mikes, Pocket Bikes and Electric Dirt Bikes, Scooters, e-bike, ATV and So On.
Description
This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something else.
This electric motor with gear reduction produces more low-end torque than your standard motor.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note on Compatibility: This motor is NOT compatible with the Razor Dirt Quad.
Specifications:
MY106Z3 350W 36V Brush Motor
No-Load Speed : 3850rpm
Rated speed: 3000rpm
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Sprocket: 9 teeth sprocket 410 (use for ordinary bicycle chain)
Sprocket size
Teeth: 9
Pitch: 12.7mm (1/2")
Tooth thickness: 3mm
Inside diameter: 11mm
Outside diameter: 41mm
Rated Current: 12.5 A
No-Load Current: 2.2A
