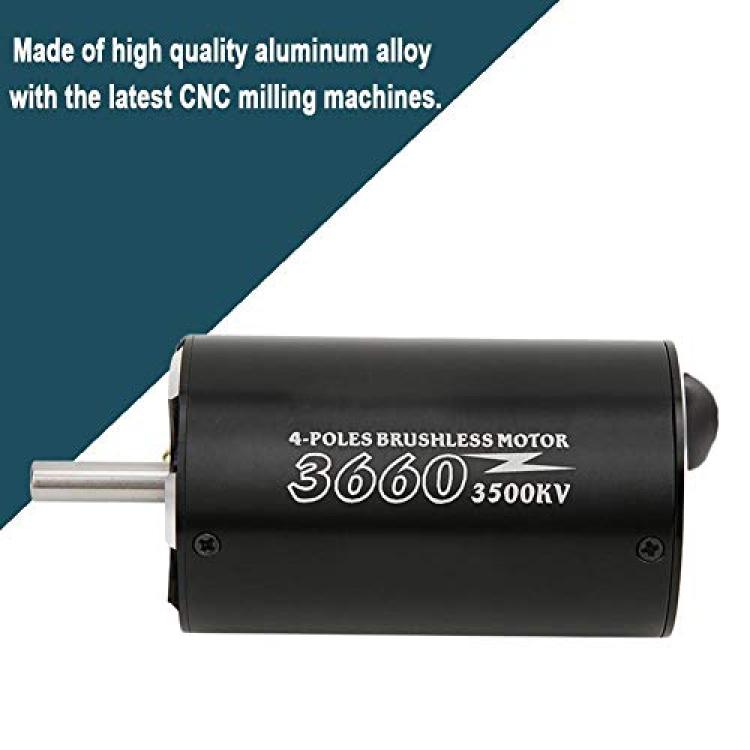

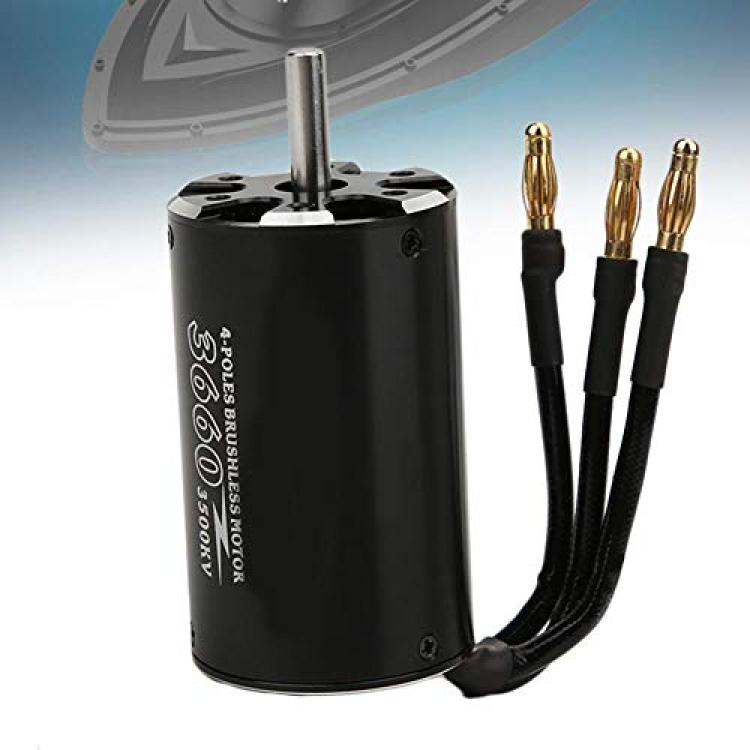

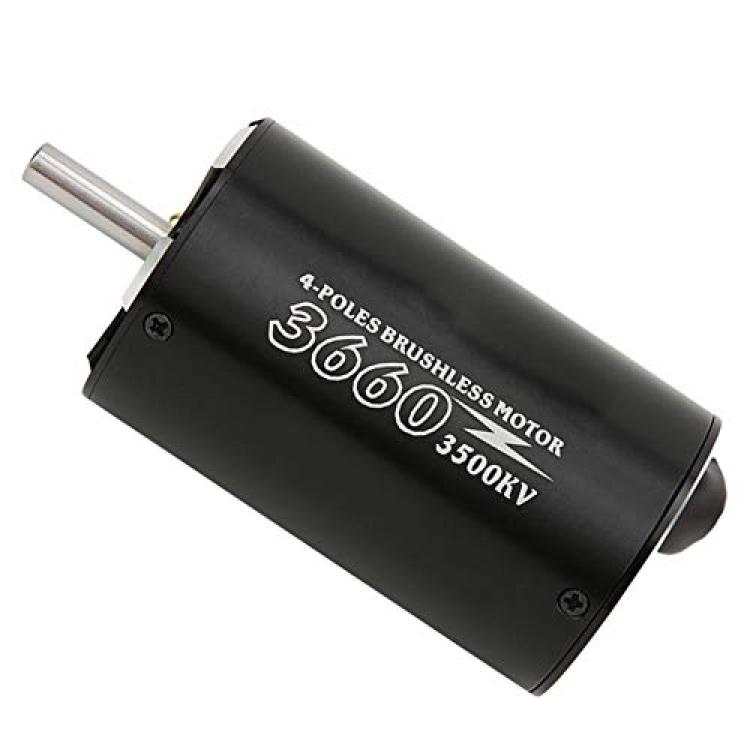

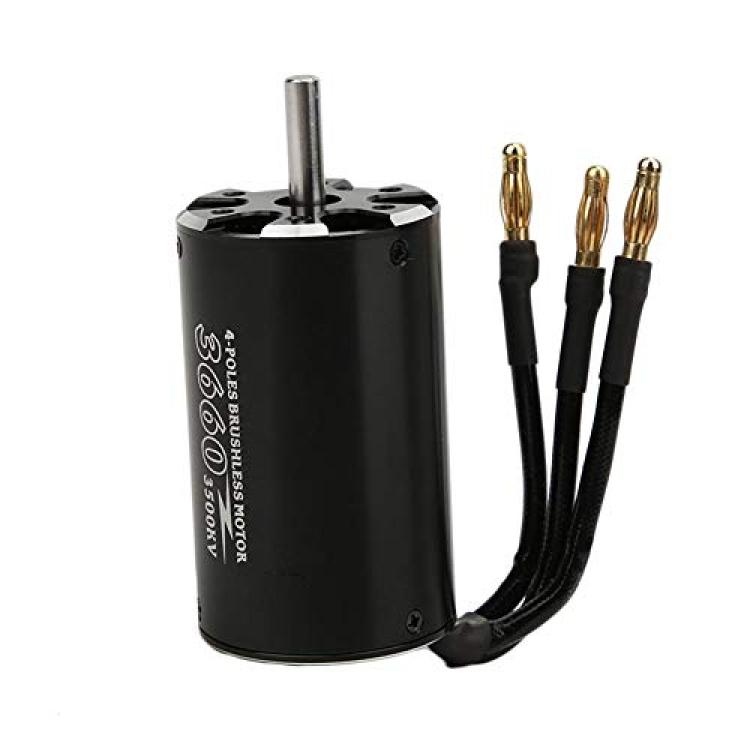

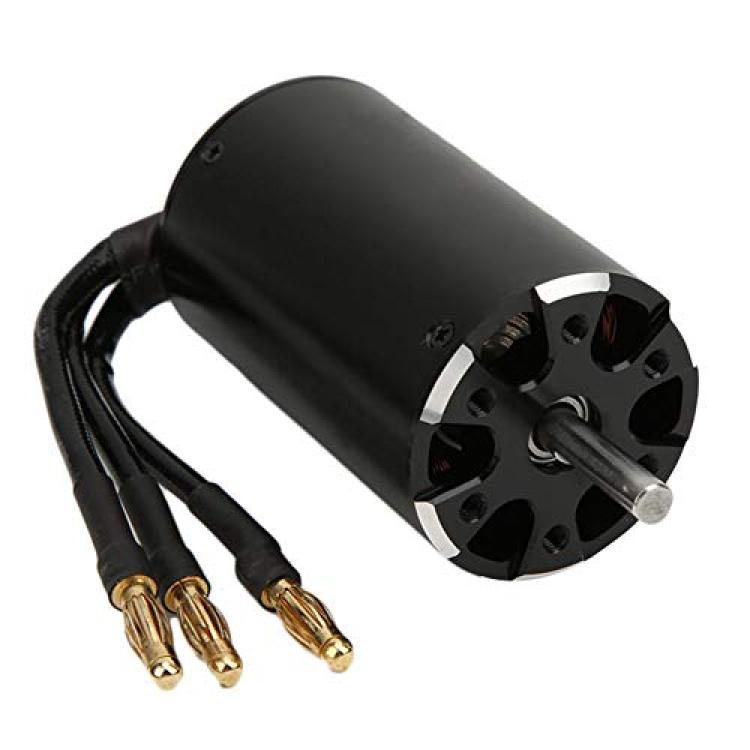

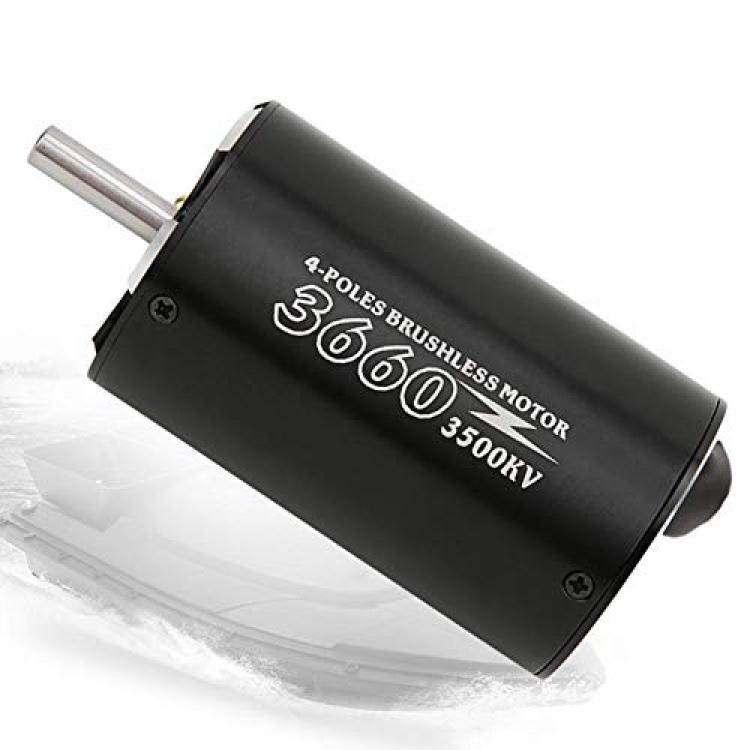

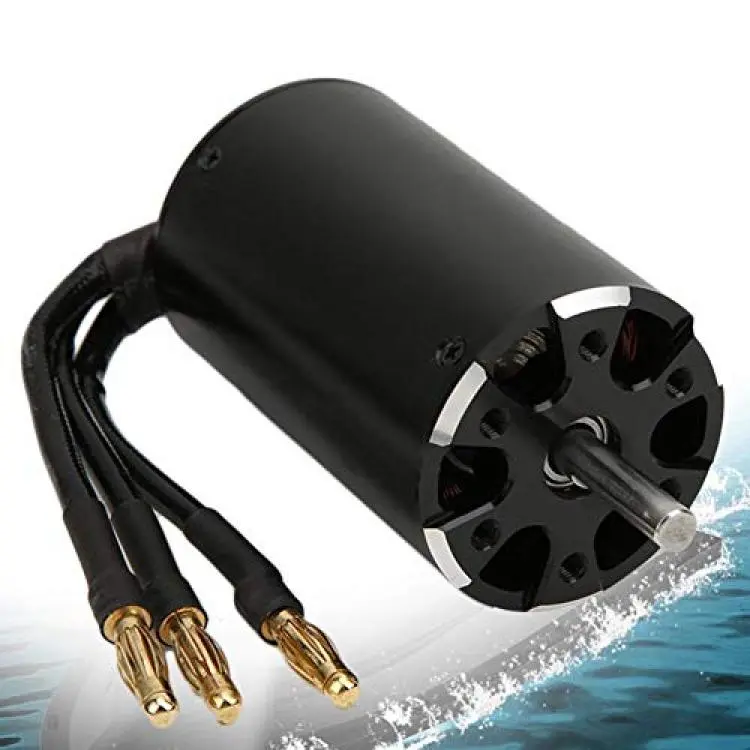

RC Boat Brushless Motor, Black 4-Pole Brushless Motor for 5.0mm 3660 3500 KV RC Boat Accessory Part

Features:
1. It is made of high quality aluminum alloy with the latest CNC milling machines, and designed with high power and rotation speed to provide longer run time for 600-800mm RC boat.
2. Precise design for maximum energy conversion. The 3660 4-pole non-inductive brushless motor is designed to provide high quality and great performance.
3. High purity copper winding maximizes the efficiency. High RPM ABEC5 oversized bearings.Precise balanced rotor with great smoothness, reliability and maximum RPM.
4. High torque motor with 4-pole and 12-slot design. T6 square aluminum radiator with CNC process.
5. Ultra-thin (0.2mm) lamination stator which make the motor is easier to remove and replace .


Specification:
Item Type: RC Boat Part
Motor: 3660
KV (RPM/Volt): 3,500KV
Motor Diameter: Approx. 36mm/1.4in
Motor Length: Approx. 60mm/2.4in
Motor Shaft Diameter: Approx. 5mm/0.2in
Motor Shaft Length: Approx. 18mm/0.7in
Fixing Screw Hole Center Distance of the Motor Front Cover: M3 screw 25mm for 3 pairs
Motor Outlet Length: Approx. 8cm/3.1in, 4 mm banana head
Motor Maximum Power: 1700W
Peak Current: 3500KV 106A, 2100KV 70A
Maximum Voltage: 3500KV 16V, 2100KV 26V
Package:
Package Size: Approx. 112x70x40mm/4.37x2.73x1.56in
Package Weight: Approx. 246g/8.61oz


Package List:
1 x Motor
