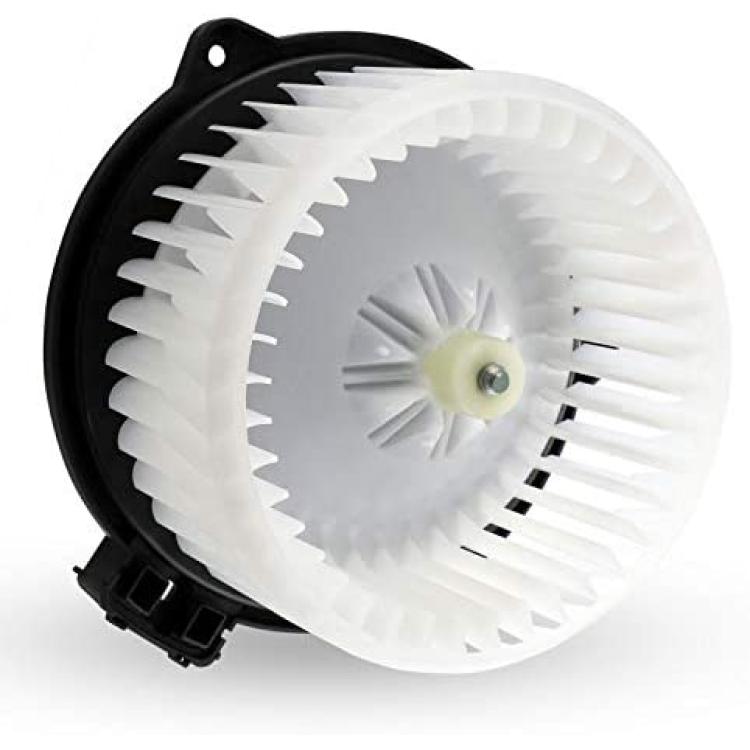

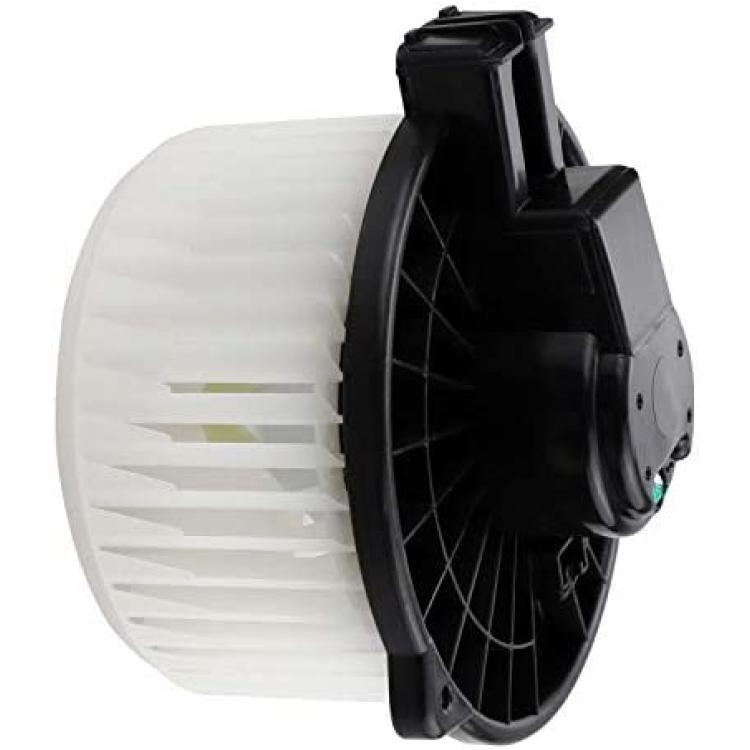

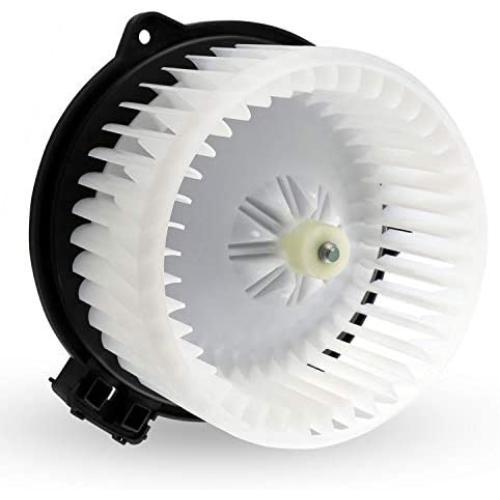

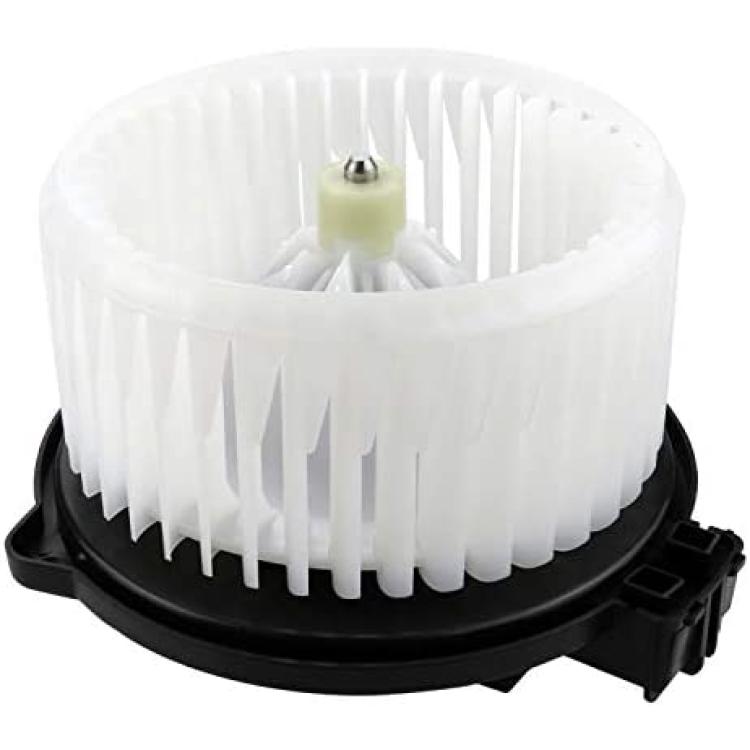

HVAC Blower Motor Assembly 700202 79220-SHJ-A01 79220-SHJ-A02 87103-42060 PM9314 Heater Blower Motor with Fan Cage for 2005-2010 Honda Odyssey; 2005-2009 Subaru Legacy Outback; 2004-2005 Toyota RAV4

FITMENT:

* 2005-2010 Honda Odyssey 3.5L
* 2008-2009 Legacy 2.0L
* 2005-2009 Legacy 2.5L
* 2008-2009 Legacy 3.0L
* 2005-2009 Outback 2.5L
* 2005-2009 Outback 3.0L
* 2004-2005 Toyota RAV4 2.4L



Replaces Part Numbers:

* 700202,
* 79220-SHJ-A01
* 79220-SHJ-A02
* 87103-42060
* PM9314



How to replace with new HVAC blower motor?

* 1 Always wear eye protection and start with installation tools.
* 2 Locate the HVAC blower motor under the passenger side dash. Removing the dash may be necessary to access the blower motor on some vehicles. (Note: On older vehicles, the blower motor may be * located in the
engine compartment on the passenger side firewall.)
* 3 Disconnect the blower motor electrical connector.
* 4 Remove the retaining screws to the blower motor assembly.
* 5 Remove the box and blower motor assembly.
* 6 Remove the blower motor retaining screws. Remove the motor from the box.
* 7 Compare the new blower motor to the old one to verify that you have the correct part. Install the new motor into the box and tighten the retaining screws. Re-install the blower motor assembly.
* 8 Connect the blower motor electrical connector.
* 9 Operate the heating and A/C system. Verify that the blower motor operates at all speeds and that the system produces hot and cold air.
* 10 Searching related installation video on the internet will be also recommended.
