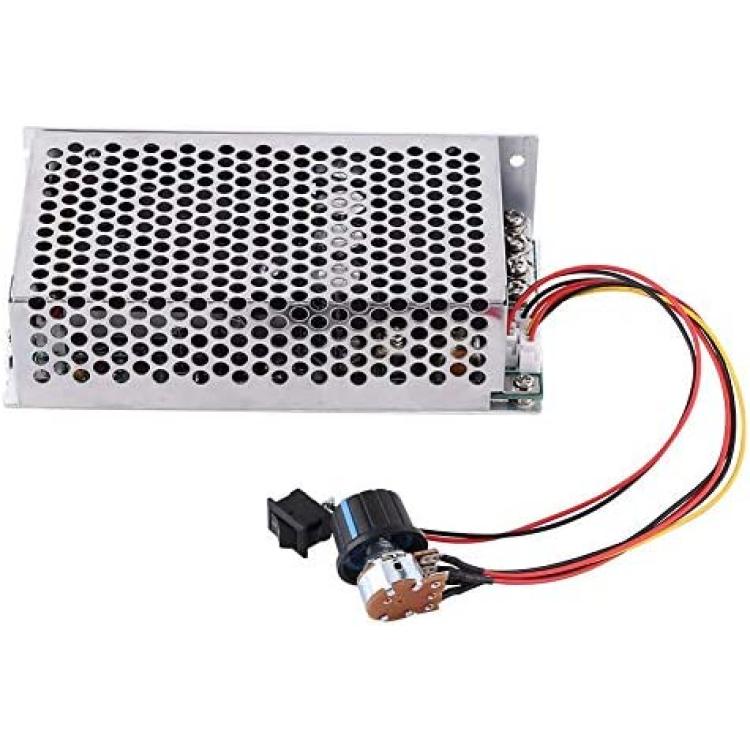

Motor Speed Controller, 10-50V DC 5000W Motor Governor Speed Regulator PWM Controller Switch 100A for Universal Motor Blower
About this product
*Universal Fitment:Universal speed controller can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc.
*Dimming DC Lamp:The PWM controller can also be used for dimming DC lamps or controlling DC heater.
*Industrial Use:The motor speed controller is of high quantity for industrial use that can work normally when operation temperature is below zero celsius.
*Hard Protective Shell:Well-designed shell could protect the controller board from damage as well as dissipate heat.
*Stable Performance:Motor speed controller switch is simple and easy-to-use, and has an elegant appearance and stable performance.
Description
Description:
The motor speed controller is of high quantity for industrial use that can work normally when operation temperature is below zero celsius. Can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc.
Specifications:
Working Voltage: DC10V to DC50V
Max. Rated Current: 60A
Peak Current: 100A
Control Power: 0.01W to 5000W
Power Alters According to Voltage
12V*100A =1200W
24V*100A =2400W
30V*100A =3000W
50V*100A =5000W(peak)
Quiescent Current: 0.04A( not over 40mA when voltage is DC10V to DC30V)
PWM Duty Cycle: 0%-100%
PWM Frequency: 15khz
Operation Temperature: -20 to 40?

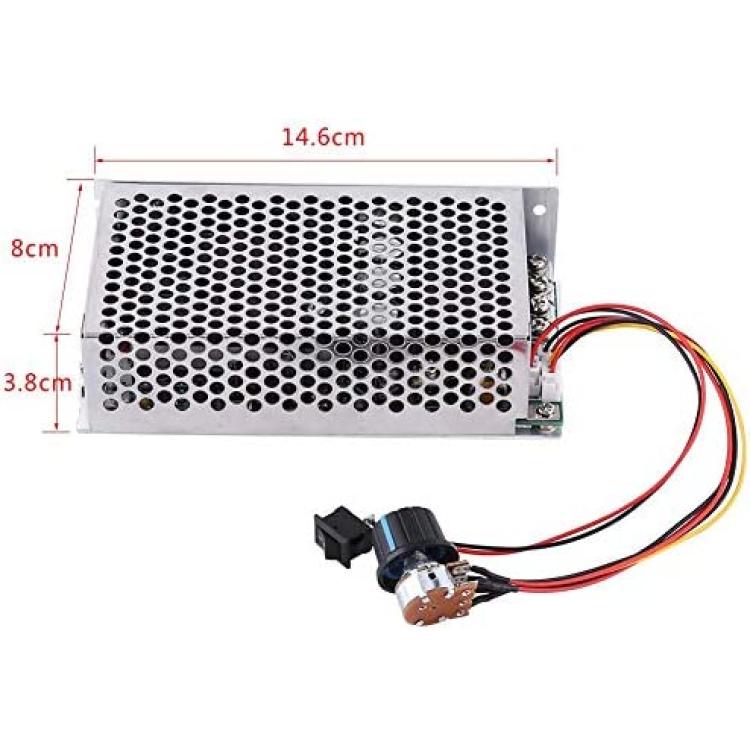

Size: 14.6 x 8 x 3.8cm / 5.74 x 3.15 x 1.49"
Package Includes:
1 * Speed Controller
