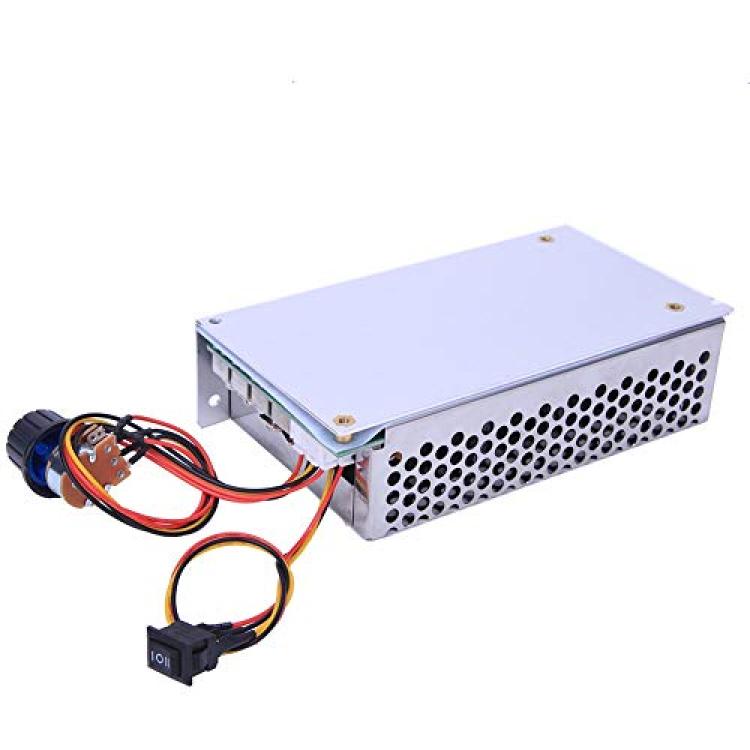

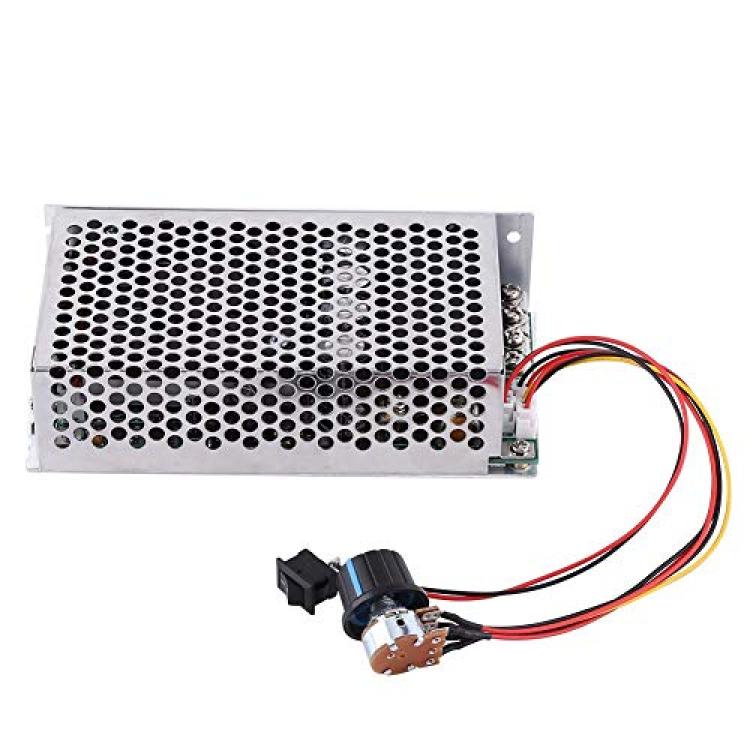

Speed Controller, 1050V 100A 5000W DC Motor Speed Controller PWM Control Switch Governor
Availability: Pre-Order, Inquiry Price
About this product
*【Well-Designed 】Well design case can protect the controller board from damage as well as dissipate heat.
*【Function】This motor speed controller can also be used for dimming DC lamps or controlling DC heater.
*【Stable Performance】This simple and easy-to-use DC motor speed controller has an elegant appearance and stable performance.
*【Product Features】This motor speed controller is of high quantity for industrial use that can work normally when operation temperature is below zero Celsius.
*【Scope of Application】Universal speed controller can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc.
Description
Description:
This Is A Simple And EasyToUse Dc Motor Speed Controller Of Elegant Appearance And Stable Performance. It Is Made With High Quality Circuit Board Which Ensures A Longer Service Life. The Input Voltage Can Be Dc 10V To 50V And Control Power From 1200W To 5000W(Peak). This Speed Controller Is A Universal One Which Can Be Used On Many Dc Brush Motors In Car Cooling Fan Motor, Car Air Conditioning Motor, Exhaust Blower, Etc.
Specifications:
Working Voltage: Dc10V To Dc50V
Max. Rated Current: 60A
Peak Current: 100A
Control Power: 0.01W To 5000W
Power Alters According To Voltage:
12V*100A =1200W
24V*100A =2400W
30V*100A =3000W
50V*100A =5000W(Peak)
Quiescent Current: 0.04A( Not Over 40Ma When Voltage Is Dc10V To Dc30V)
Pwm Duty Cycle: 0%100%
Pwm Frequency: 15Khz
Operation Temperature: 20 To 40?
Size: 14.6 X 8 X 3.8Cm / 5.74 X 3.15 X 1.49"
Package Includes:
1 X Speed Controller
