Iverntech Nema 17 Stepper Motor 42x40mm Body Bipolar 1.5A 400mN.m 2 Phase 4 Wires 1.8 ° for 3D Printer or CNC Machine with 1M Motor Cable
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Package Dimensions : 3.25 x 3 x 2.25 inches; 9.7 Ounces
*Item model number : AW0014
*Date First Available : August 24, 2017
Description

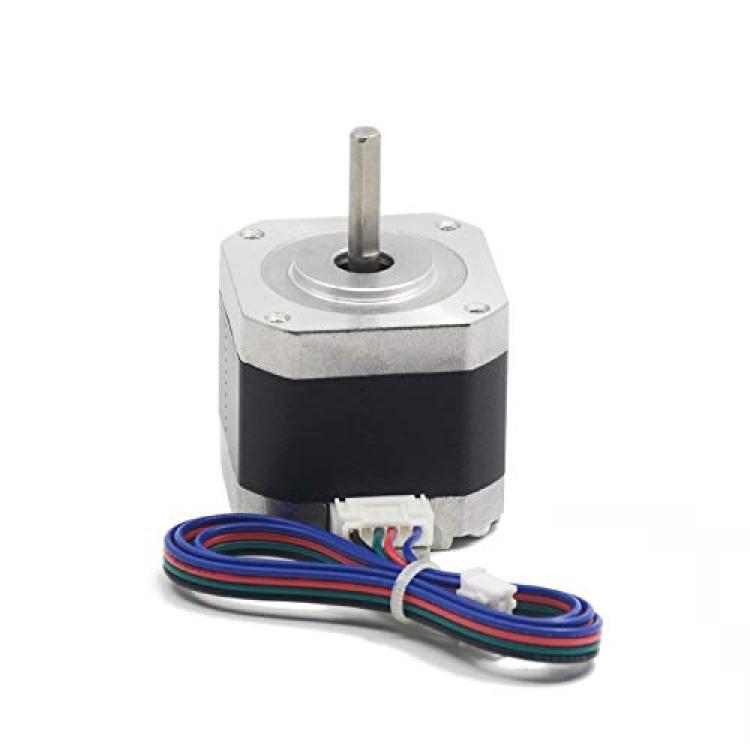

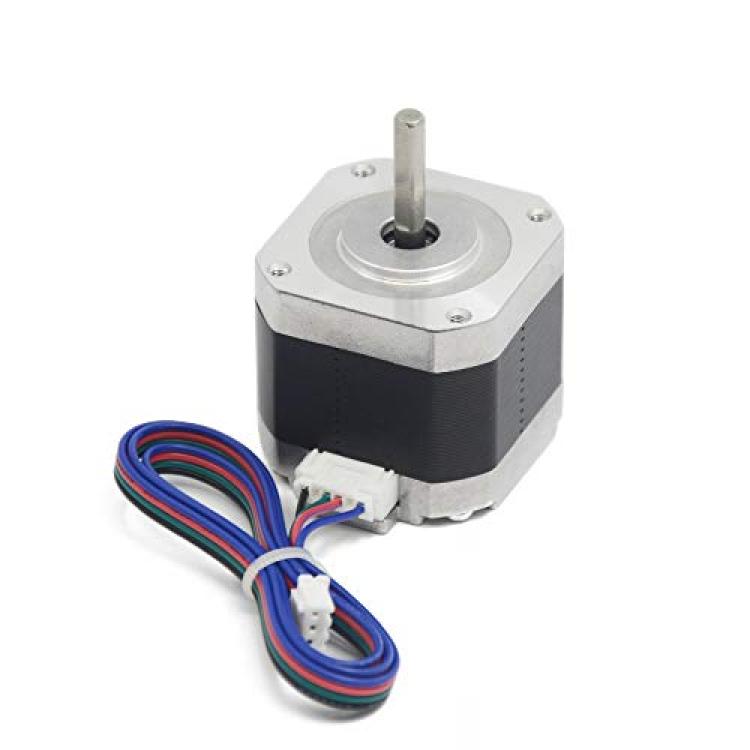

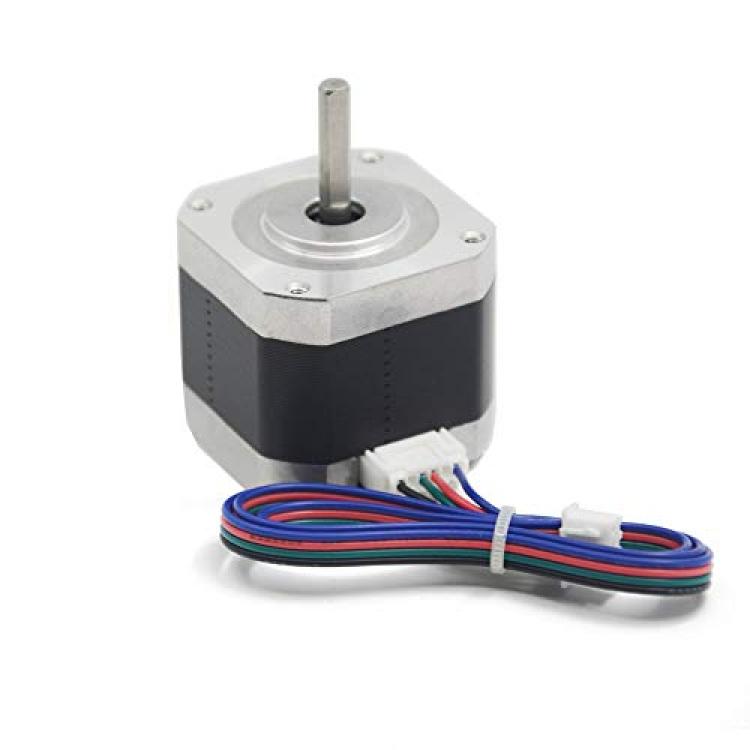

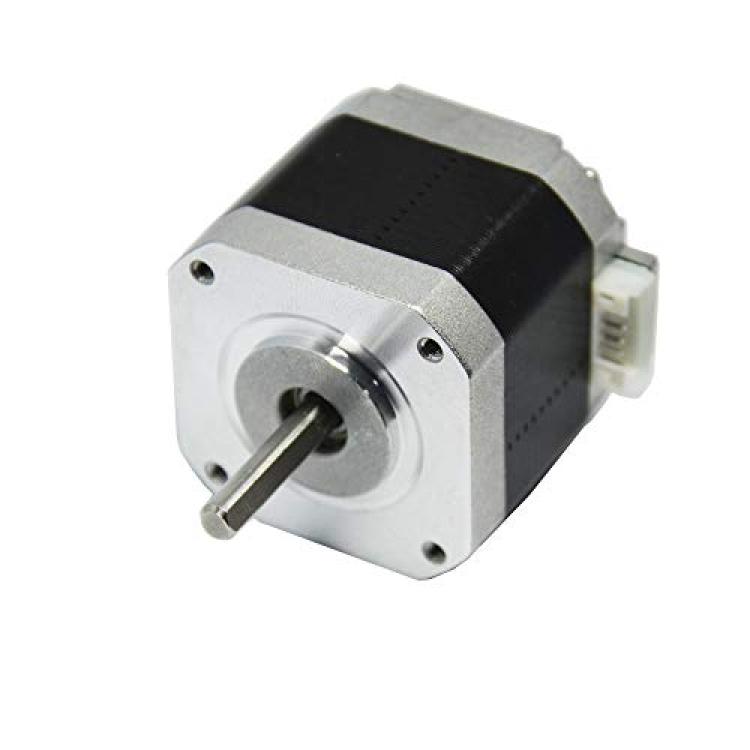

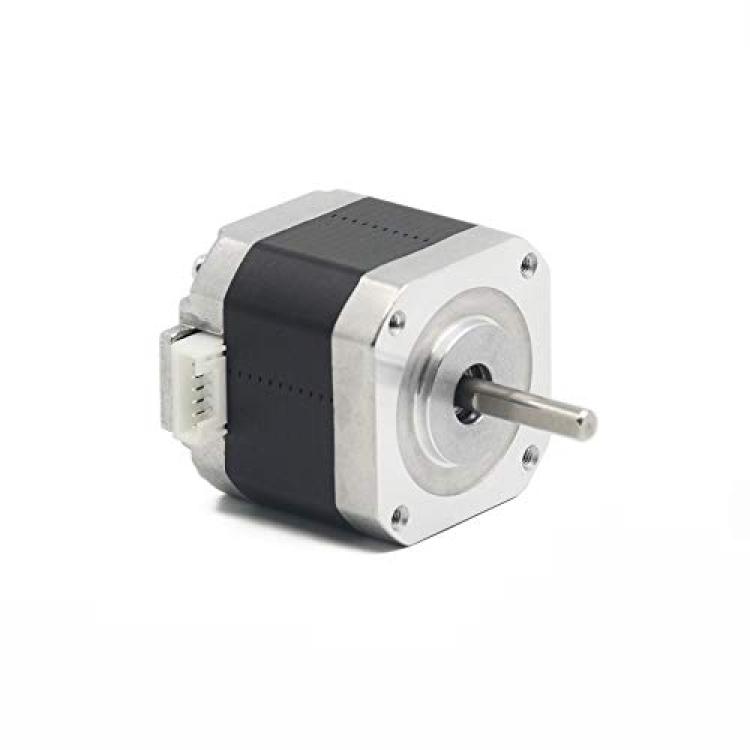

Iverntech 42-40mm Nema 17 stepper motor
Motor Type: Bipolar Stepper
Number of Phase: 2
Number of Leads: 4
Step Angle: 1.8 deg.
Rate Voltage: 3.3V DC
Rated Current: 1.5A
Holding Torque: 400mN.m Min
Phase Resistance: 2.2ohms±10%?20??
Phase Inductance: 3.8mH±20%(1KHz)
Rotor inertia:57g.cm2
Item Weight: 275g
Package List:
1 x 42-40mm Nema 17 Stepper Motor

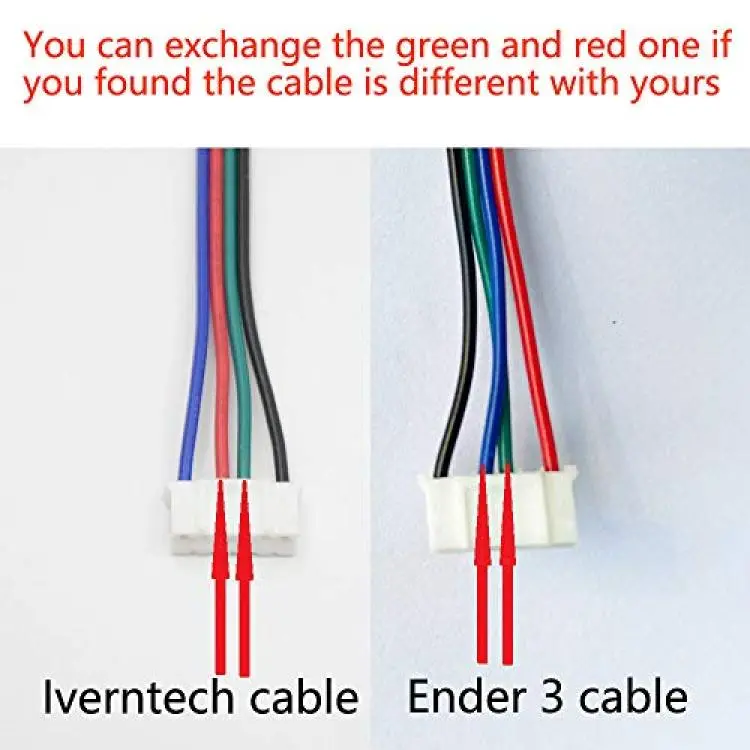

1 x 1M motor cable
